1300*3000mm CNC Router for Wood, Woodworking Machinery for Wooden Toys, Cabinets, Furniture

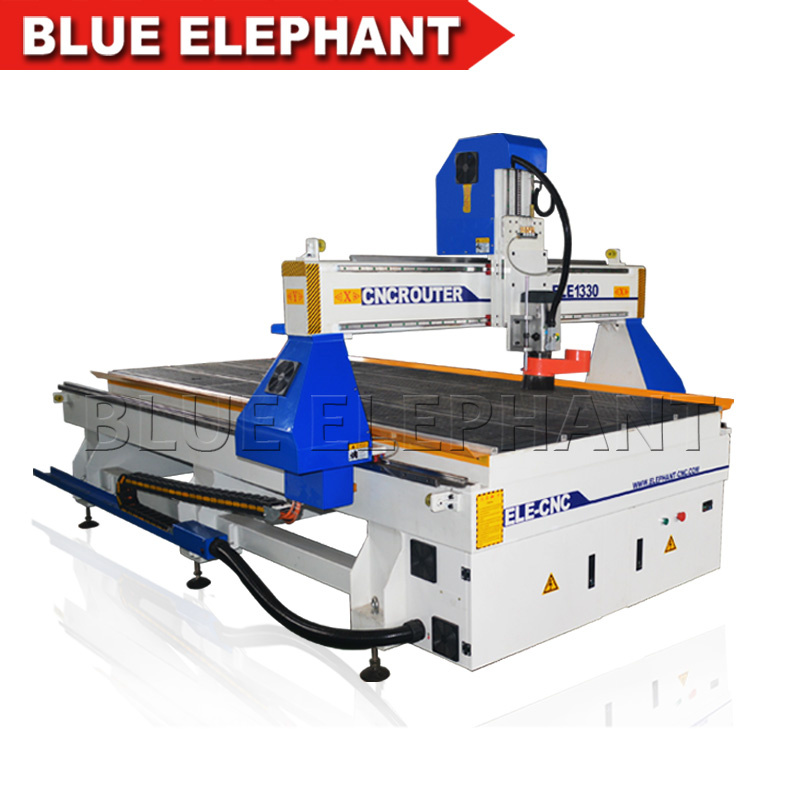

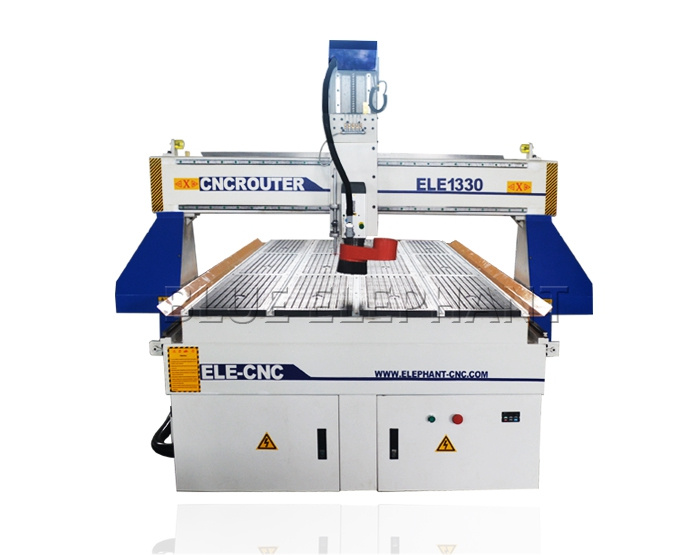

Name: 1300*3000mm CNC Router for Wood, Woodworking Machinery for Wooden Toys, Cabinets, Furniture
Brand: china-crystals.com
SKU: 716521262
Availability: InStock
Rating: 4.7 (119 reviews)

Price:	US $ 3000-6000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	ELE 1330
Voltage:	380V, 3 Phase, 50/60Hz(Optional:220V)
Control Box:	Inner Box
X,Y,Z Working Area:	1300X3000X400mm
Control System:	Ncstudio
Spindle Power:	4.5kw Italy Hsd Air Cooling Spindle
Inverter:	5.5kw Delta
Motor And Driver:	750W Leadshine Mixed Servo
Spindle Speed:	0-18000rpm
Frame:	Big Steel Tube Welded Structure
Table Surface:	Vacuum&T-Slot Working Table
Spindle Layout:	Spindle Over
Spindle Number:	Single-Spindle
Feed Mode:	Mechanical
Controlling Mode:	CNC
Certification:	SGS BV TUV

Product Description

1300*3000mm cnc router for wood , woodworking machinery for wooden toys , cabinets , furniture

Features:

4.5 kw HSD ATC air cooling spindle from Italy
5.5kw Delta inverter from Taiwan
NCstudio control system
750w Leadshine mixed servo motor
7.5kw Whirlpool vacuum pump
Vacuum and T-slot working table
#20 HINWIN square linear guide
Taiwan TBI ball screw
380V,3PH,50HZ(220V for optional)

Parameters:

Description	Parameter
X,Y,Z Working Area	1300x2500x200mm
Spindle	4.5kw HSD air cooling spindle
Inverter	5.5kw Delta Inverter
Motor driver	750w Leadshine mixed servo
Spindle Speed	0-18000RPM
Control System	NCstudio
Table Surface	T-slot&vacuum Table
X, Y Structure	#20 Taiwan HIWIN Linear guide and helical rack
Z Structure	Ball screw and#20 Taiwan HIWIN Linear guide
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Lubrication system	Manual
Command Language	G Code
Computer Interface	USB
Collet	ER32
X,Y Resolution	<0.01mm
Software Compatibility	Type3 Software, (Option: Artcam Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%

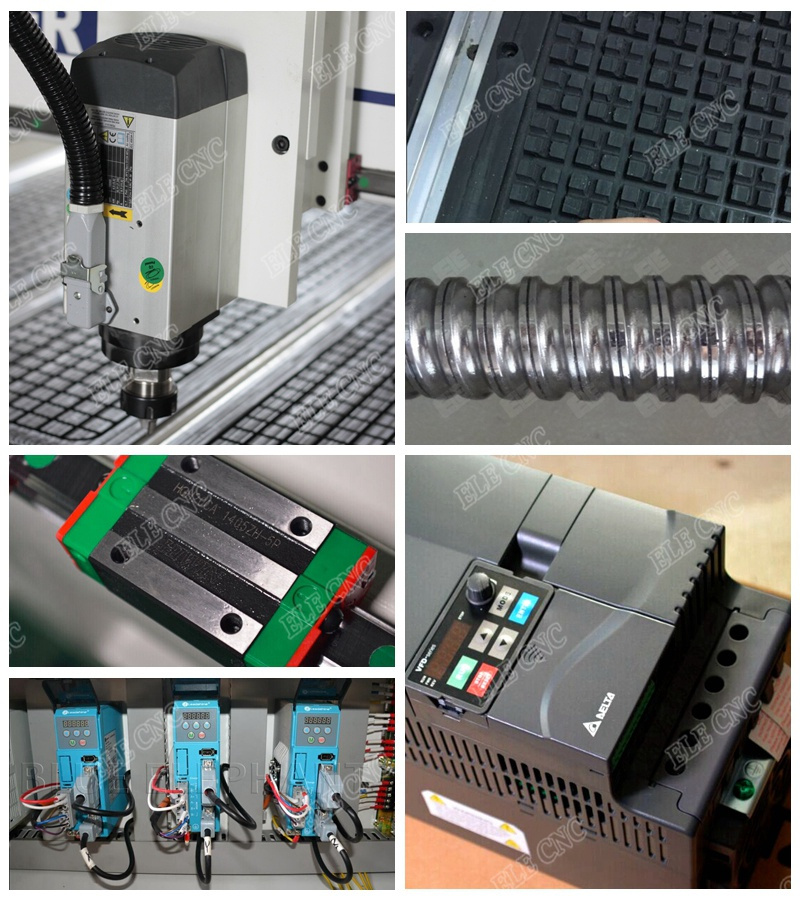

Main parts:

Applicantion:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.

4.relief sculpture and 3D engraving

Samples show:

Customers Feedback:

Packaging & Delivery:

Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.

FAQ:

How to choose the suitable carton cutting machine?
To provide you detailed quotation, we need to confirm the following detailes :
1.what is raw material
2.the size of material
3.Your other requirement
Detailed information will be sent to you the moment we get your confirmation

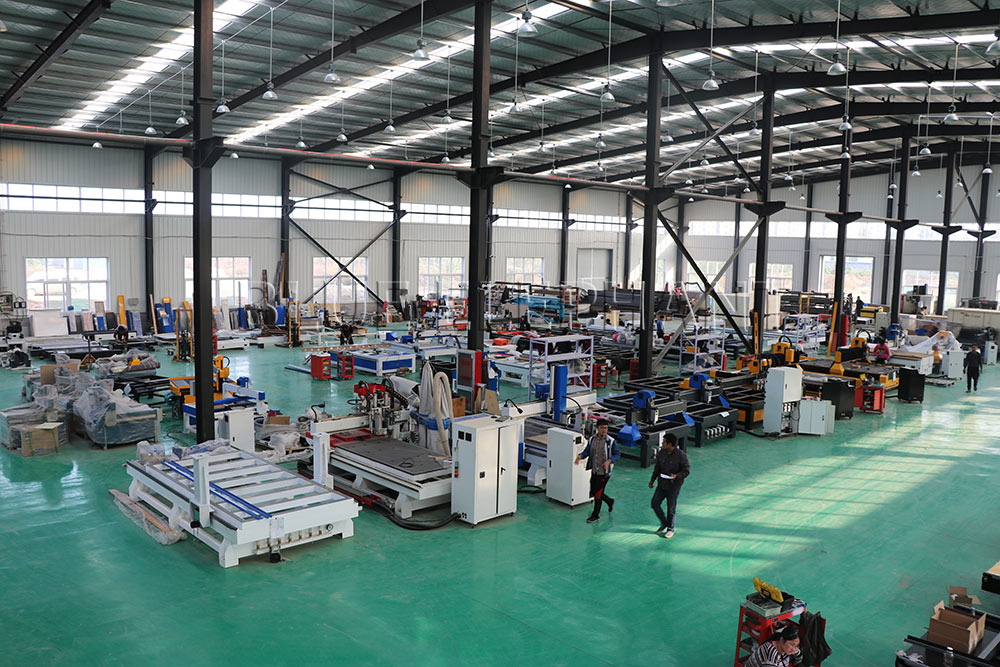

Our Company:
