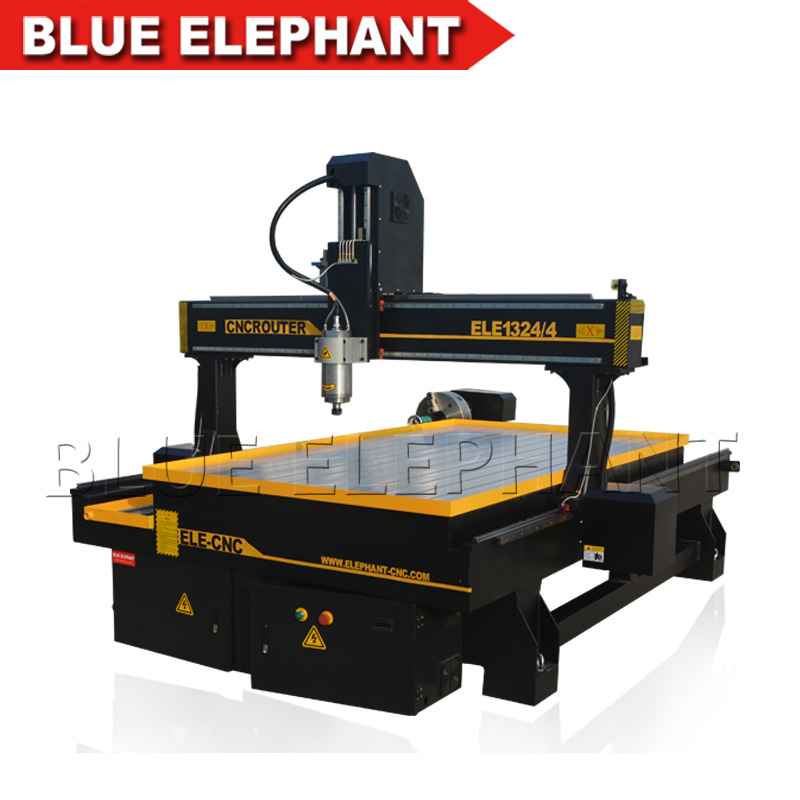

1324 4 Axis Carving CNC Router with Rotary Device for Wood Engraving
| Price: |
US $ 4000-11000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE 1324 |
| Dimension(L*W*H): |
3700*2140*1850mm |
| Control System: |
DSP A18 4 Axis System |
| Inverter: |
5.5 Kw Delta |
| Spindle Power: |
5.5 Water Cooling Spindle |
| X,Y Structure: |
#20 Hinwin Linear Guide, Helical Rack |
| Y Structure: |
Tbi Ball Screw, Hinwin Linear Guide |
| Driver Mortors: |
1kw Japan Yaskawa |
| Type: |
Engraving Router |
| Spindle Layout: |
Spindle Over |
| Customized: |
Customized |
Product Description

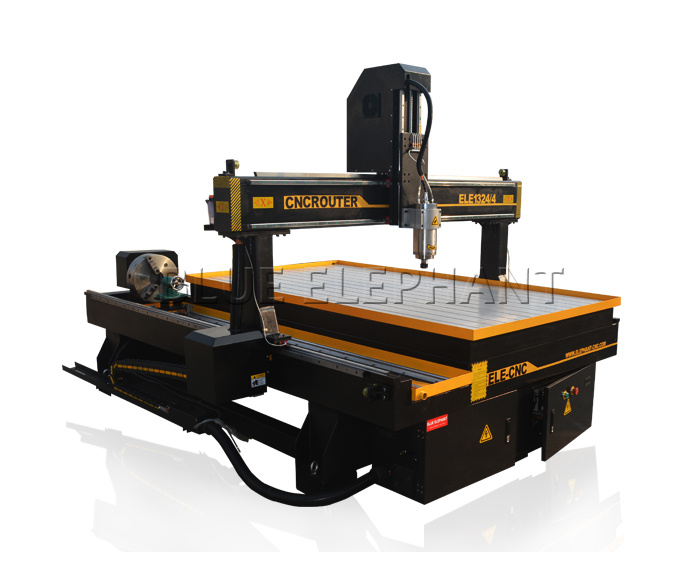

1324 4 Axis Carving CNC Router with Rotary Device for Wood Engraving
Video on youtube: https://youtu.be/Vc2jrocAsII Advantage:1.DSP A18 4 axis control ststem
2.Well suitable for processing stone ,wood
3.The diameter of rotary axis is 300mm
4.The sink table of rotary device is made of stainless steel
5.Z axis is 400mm,Processing different materialsTechnical Parameters:| NO. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x400mm |
| 2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 4 | Table Surface | T-slot Table |
| 5 | Frame | Welded Structure |
| 6 | X, Y Structure | #20 HINWIN linear guide,helical rack |
| 7 | Z Structure | Hiwin Rail Linear guide and Ball Screw |
| 8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| 9 | Max. Rapid Travel Rate | 33000mm/min |
| 10 | Max. Working Speed | 25000mm/min |
| 11 | Spindle Power | 5.5 KW |
| 12 | Spindle Speed | 0-24000RPM |
| 13 | Drive Motors | YASKAWA |
| 14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 15 | Command Language | G Code |
| 16 | Operating System | DSP A18 4 axis control system |
| 17 | Computer Interface | USB |
| 18 | Flash Memory | 128M(U Disk) |
| 19 | Collet | ER25 |
| 20 | X,Y Resolution | <0.01mm |
| 21 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| 22 | Running Environment Temperature | 0 - 45 Centigrade |
| 23 | Relative Humidity | 30% - 75% |

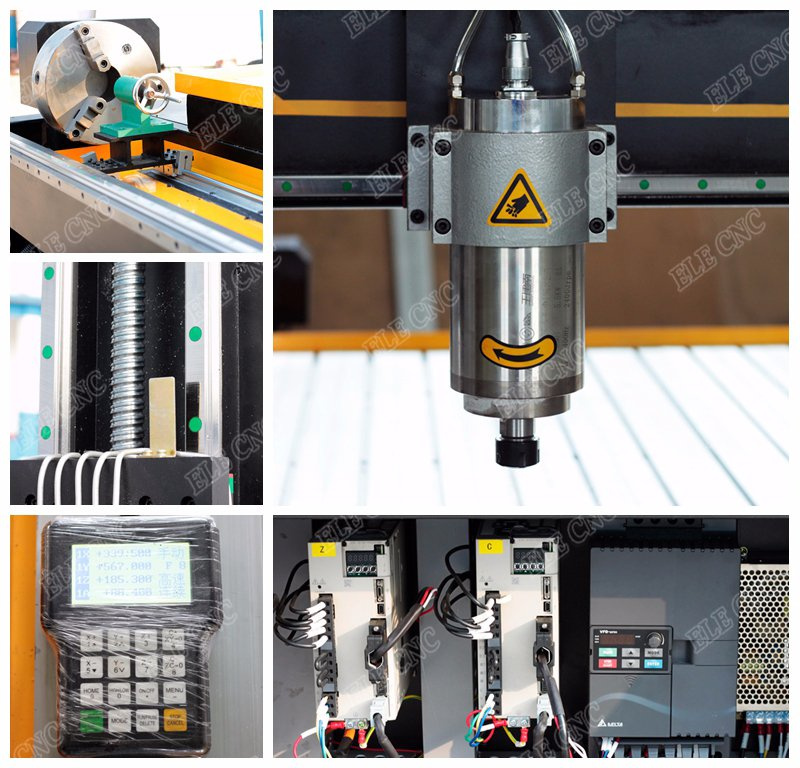

Product Details:

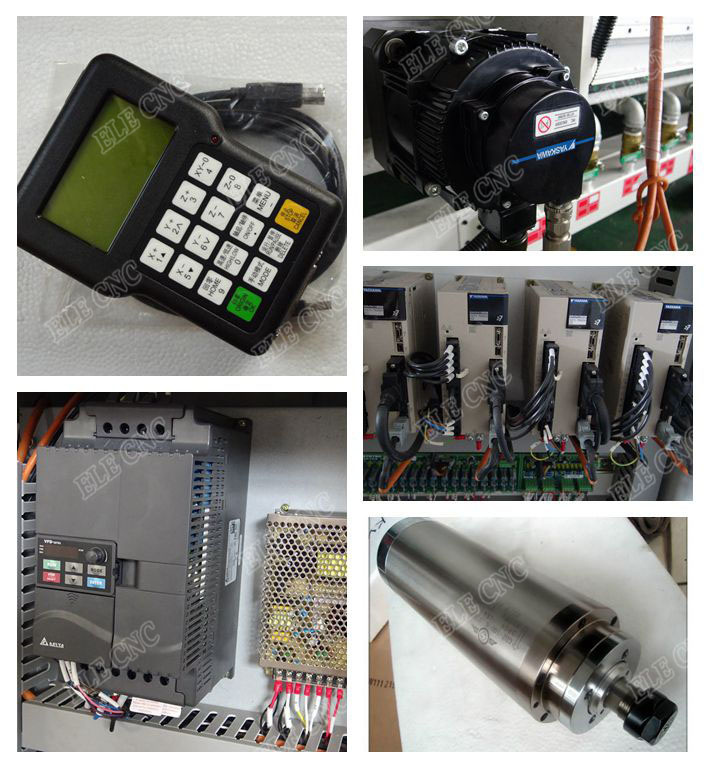

Machinery Parts :
Features
1300*2500*400mm working area.
300mm rotary axis for cylinder wood stone carving.
5.5 kw Changsheng water cooling spindle.
5.5 kw Taiwan Delta Inverter.
DSP A18 control system support 4 axis working.
1 kw Japan YASKAWA drive and motor.Application 1.Wood furniture industry:Wave plate,fine pattern,antique furniture,wooden door,screen,craft sash,composite gates,cupboard doors,interior doors,sofa legs,headboards and so on.
2.Advertising industry:Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.
3.Die industry:A sculpture of copper,aluminum,iron and other metal molds,as well as artificial marble,sand,plastic sheeting,PVC pipe,wooden planjs and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Stone,Cylindrical objectSamples:
Our Services1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.

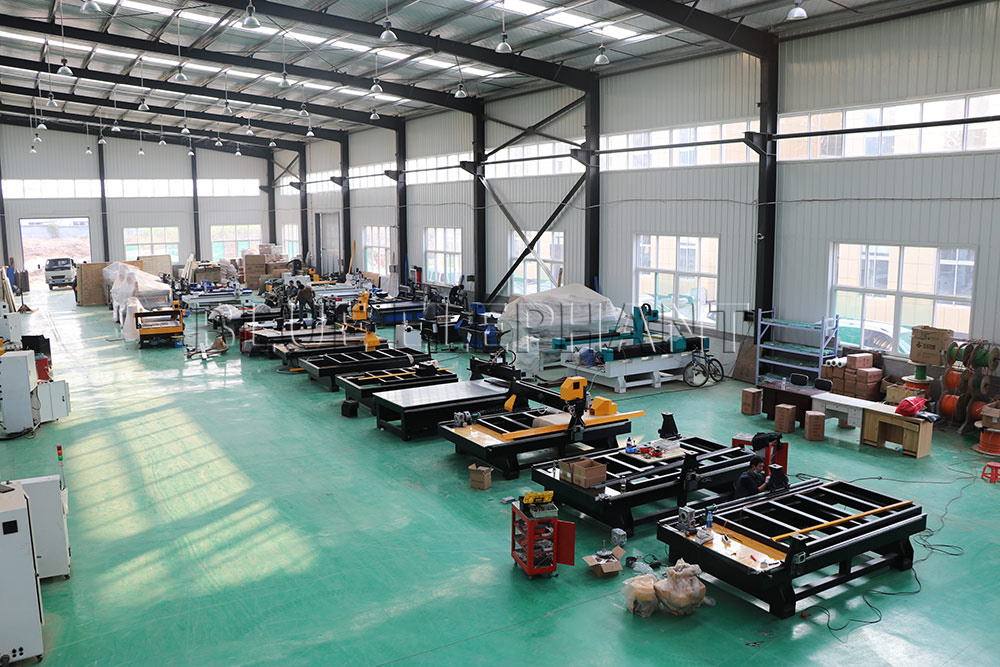

8.Machine will be adjusted before it is delivered , operation disk/CD was included. Welcome to our factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after sale & service department.
- Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality machine.
- Our Philosophy: To Be First Brand -- CNC Manufactur
er & wholesaler Platform! - Just looking forward to service every customer, like you.
