Product Specifications
| Prod Model: |
ELE 1325 |
| Power(W): |
4kw |
| Voltage: |
AC380V/50Hz, 3pH (Option: 220V) |
| Working Area: |
1300*2500*200mm |
| Control System: |
DSP A11 Control System |
| Spindle: |
Italy Hsd Spindle |
| Spindle Power: |
3kw Air Cooling |
| Spindle Speed: |
0-18000rpm |
| Motor: |
FL118 Stepper Motor |
| Driver: |
Yako 2811 Big Driver |
| Inverter: |
3.7kw Taiwan Delta Inverter |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

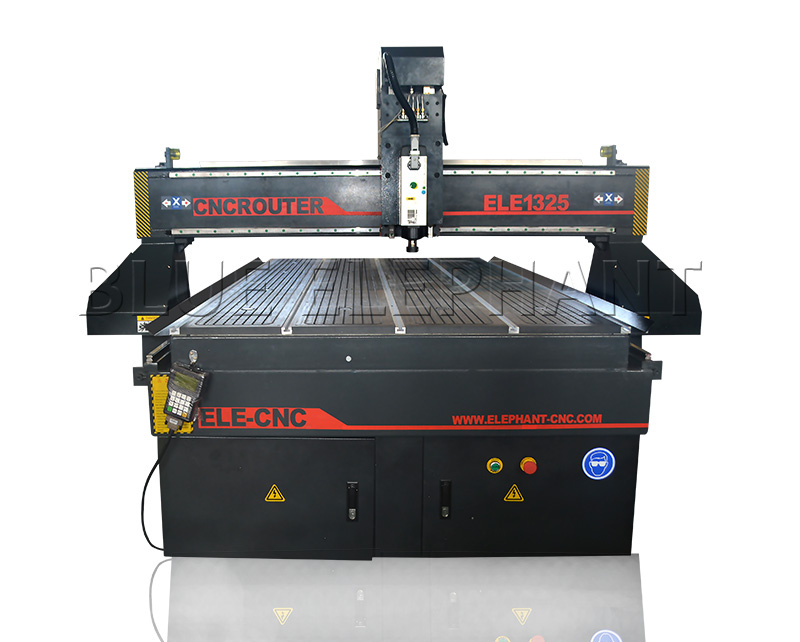

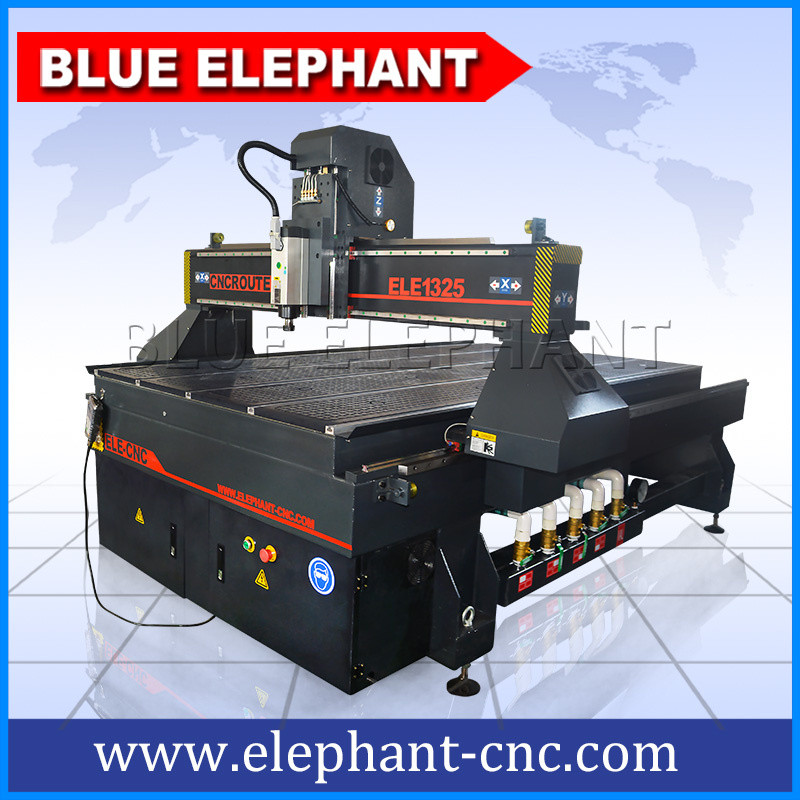

Wood Machine 4D Woodworking CNC Router from Blue Elephant
Introduction of cnc 1325 wood machine:
- high efficiency: the vacuum adsorption table with the strong power vacuum pump , whole table absorption.
- rapid running speed: two axes are rack gear, fast speed and high efficience, The highest speed is 45mpm.
- Stable operation: adopting imported Taiwan HIWIN linear guide rail, Large bearing capacity , smooth running, high precision, long life, carving precisely.
- Intelligent control: adopting DSP control system. It is very easy to master.
- 6.Sturdy and durable: Thicker and bigger welded Steel Square Tube Structure, Gantry moving, strengthen table makes positioning accuracy more accurate.
Parameters of cnc 1325 wood machine:
Description | Parameter |
X,Y,Z Working Area | 1300*2500*200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
Table Surface | Vacuum & T-slot Working Table |
Frame | New type thicker and bigger heavy duty welded frame and gantry |
X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Rail 20# |
Z Structure | Taiwan TBI Ball Screw, Taiwan Hiwin/PMI Rail Linear Rail 20# |
Max. Rapid Travel Rate | 45000mm/min |
Max. Working Speed | 30000mm/min |
Spindle Power | 3KW HSD air cooling spindle (optional) |
Spindle Speed | 0-18000RPM |
Drive Motors | FL118 stepper motor & YAKO driver |
Inverter | 3.7kw Taiwan DELTA Inverter |
Lubrication system | Automatic lubrication system |
Working Voltage | AC380V/50Hz,3PH (Option: 220V) |
Operating System | DSP A11 Control System (Options: Ncstudio /Mach3 Software) |
Control box | Inner box |
Pump | 5.5kw water circlulation vacuum pump |
Dust collector | 1.5kw double pockets dust collector |
PS:All the working area and specifications can be customized according to your requests.

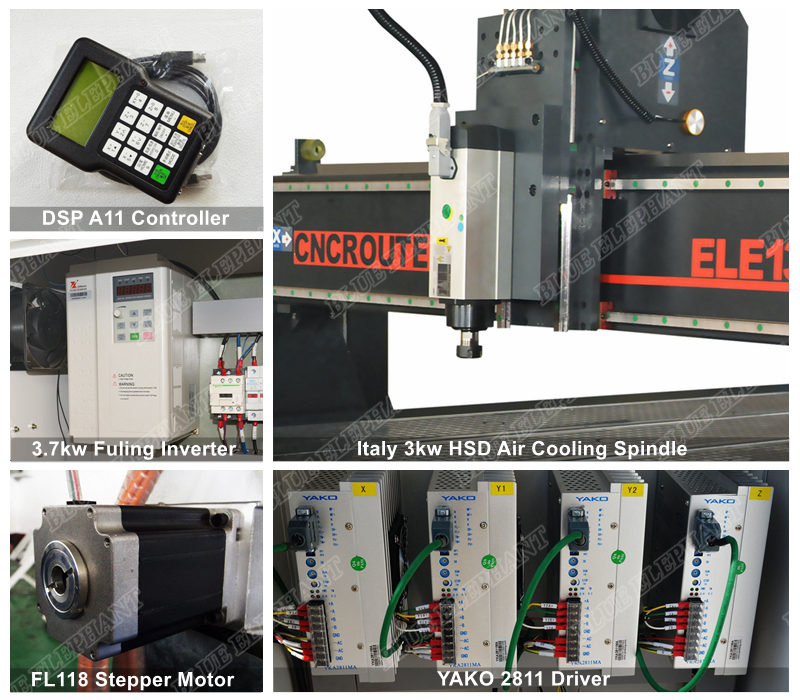

Product details:
Features of cnc 1325 wood machine:
- T-slot working table. Mechanical fixing small processing materials
- 3kw air cooling spindle(top brand in China), It's big strength and higher efficiency,
- Dust collection system, it can keep a clean, less-dust working surrounding which is helpful to your healthy; also, it can reduce the surface dust of linear guide, ball screw and gear transmission, reducing the maintaining cost.
Application:
- WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
- Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
- Relief Sculpture and 3D Engraving & Cylindrical object
Samples:

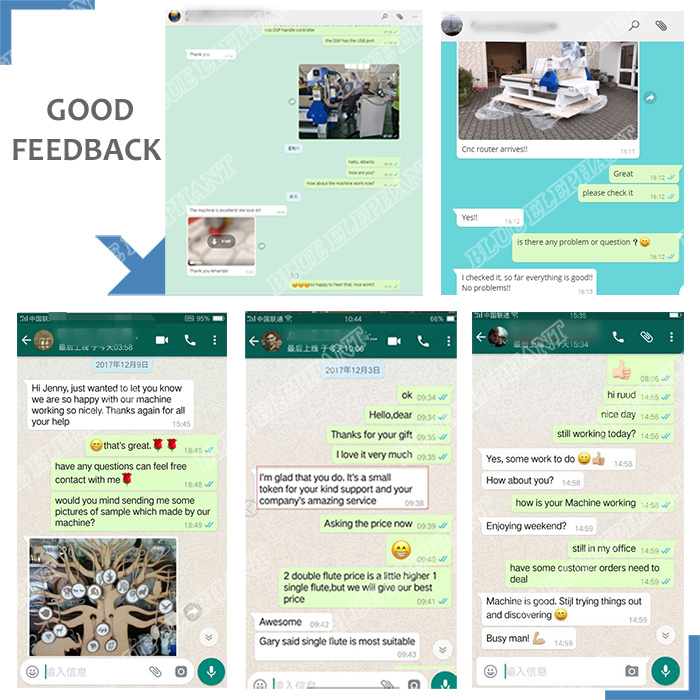

Customers Feedback:
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

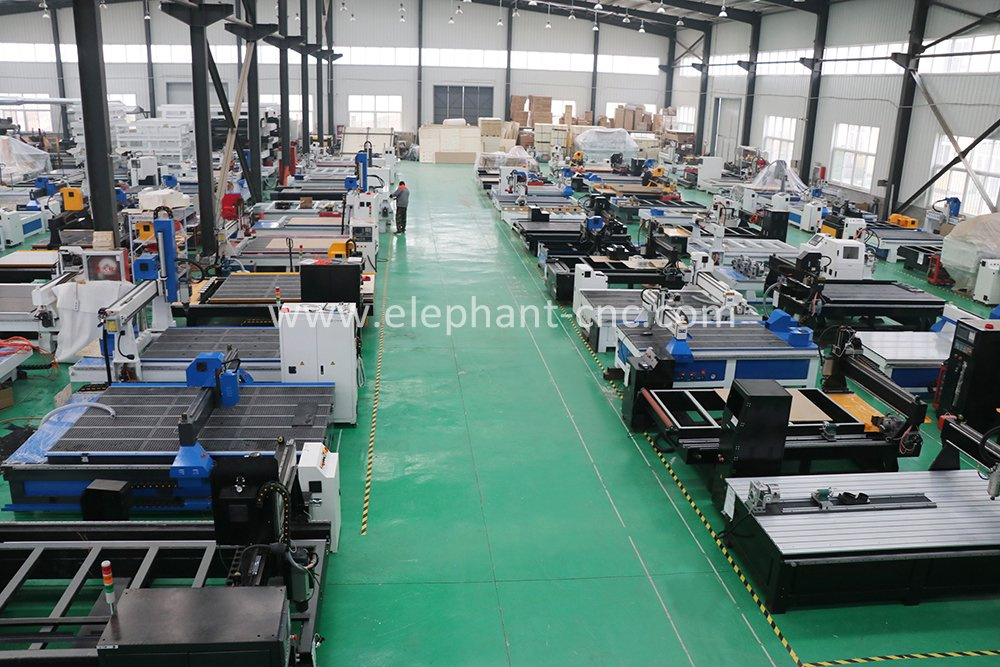

Welcome to our factory:
