Product Specifications
| Prod Model: |
DEK-9060J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Area: |
600*900mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, FDA |
| Laser Power: |
60W-150W |
| Driving System: |
Stepper Motor and Drivers |
| Control Configuration: |
Ruida Control System |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rails |
Product Description

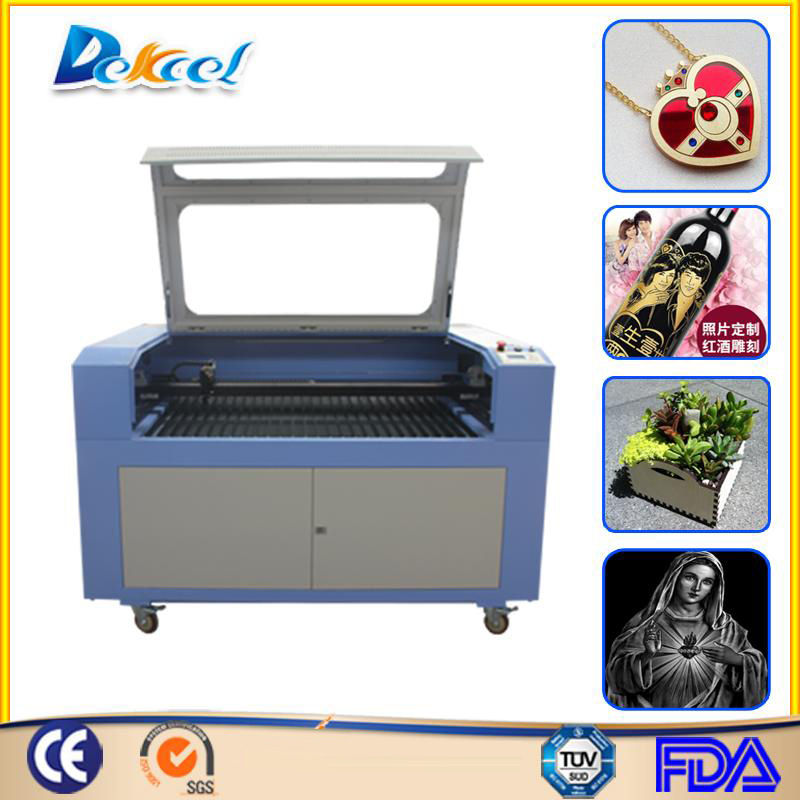

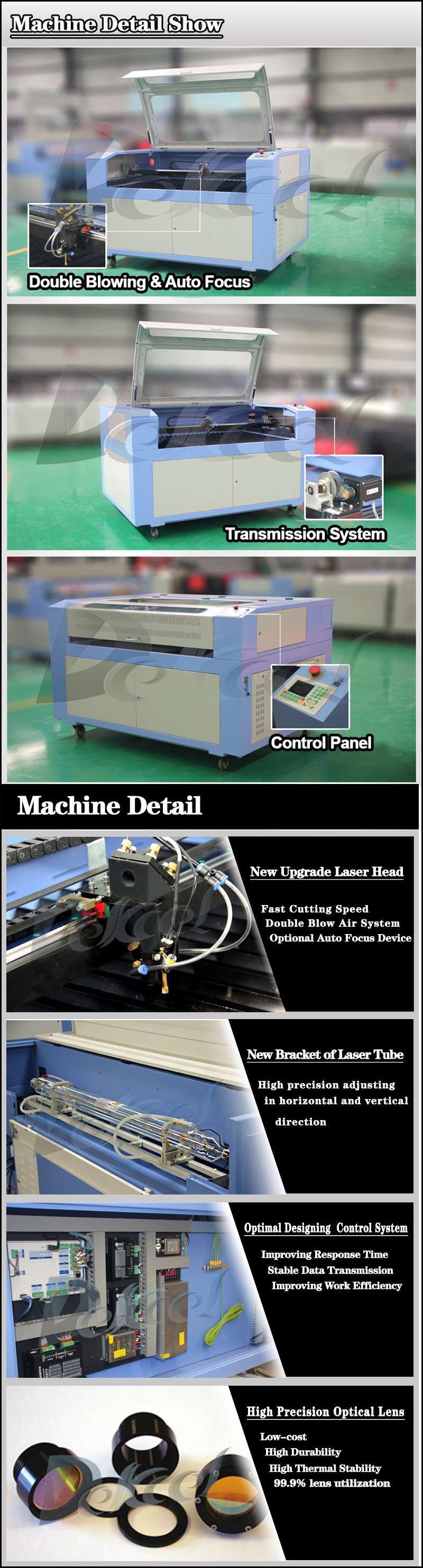

CE Approved Wood Engraving CNC Laser Cutting Machine Price DEK-9060 Cnc laser engraving and cutting machine price features
Rdcam color touchable screen control system in English--operate easily
Leedshine driving system--stable
Hiwin guide rail from Taiwan -- high precision
Singapore lens and mirror--reflection and focusing, long working life.
Red light position system --position precision
Automatic protection system--safe
All the feature of our laser engraving machine make sure its high quality and good work performance.
Technical Detailes for cnc laser engraving and cutting machine price | Total power | <300W |
| Laser power | 80W-150W |
| Laser type | CO2 cnc laser cutting machine |
| Power supply | AC 220V/110V |
| Working area | 600*900 mm |
| Engraving depth | 0-10 mm (different material differ) |
| Cutting depth | 0-10 mm |
| Engraving speed | 0-600mm/s |
| Cutting speed | 0-600mm/s |
| Lifting platform | 0-250 mm Honeycomb/Blade Worktable |
| Locating precision | <0.01 mm |
| Min shaping character | Character: 2*2mm, Letter: 1*1mm |
| Working temperature | 5ºC-45ºC |
| Working humidity | 5%-95% |
| Resolution ratio | ≤1000dpi |
| Data transfer interface | USB 2.0 (offline) |
| System environment | Windows XP / Win 7 / Win 8 |
| Cooling | Water Cooling and protection system with chiller |
| Graphic Format Supported | The Files which CorelDraw & WinsealXP can identify |
| (BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF |
| Compatible software | CorelDraw,WinsealXP |
| Color separation | NO |
| Sloping engraving | NO |
| Protection | Emergency stop buttom and Stop working when water broken |
Applicable Materials:
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,glass and other nonmetal materials.
Applicable industries:
Advertisement, arts and crafts, leather, toys, garments, model, building upholstery,
computerized embroidery and clipping, packaging and paper industry.
Cnc laser engraving and cutting machine price samples

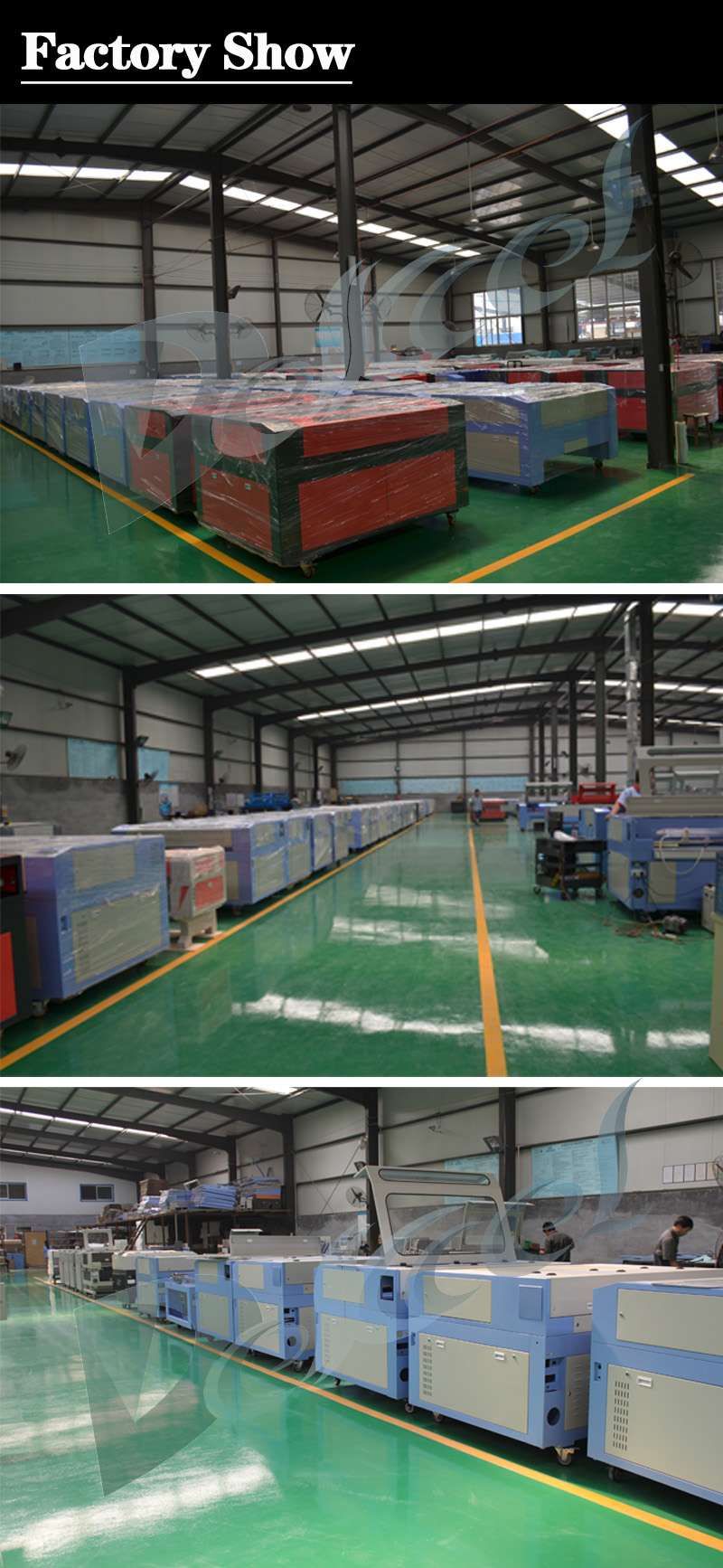

cnc laser engraving and cutting machine price factory
FAQ
1) This is the first time I use this cnc laser engraving and cutting machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and skype or go to your home for after-sale service
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell
us your port name or your detailed address. There will be best shipping freight and machine price send to you
After sales service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
Looking for agents for all over the world
Thanks for your time!
