Product Specifications
| Prod Model: |
DEK-1390J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Area: |
1300*900mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, FDA |
| Laser Power: |
60W/80W/100W/150W |
| Driving System: |
Stepper Motor and Drivers |
| Control Configuration: |
Ruida Control System |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rails |
Product Description

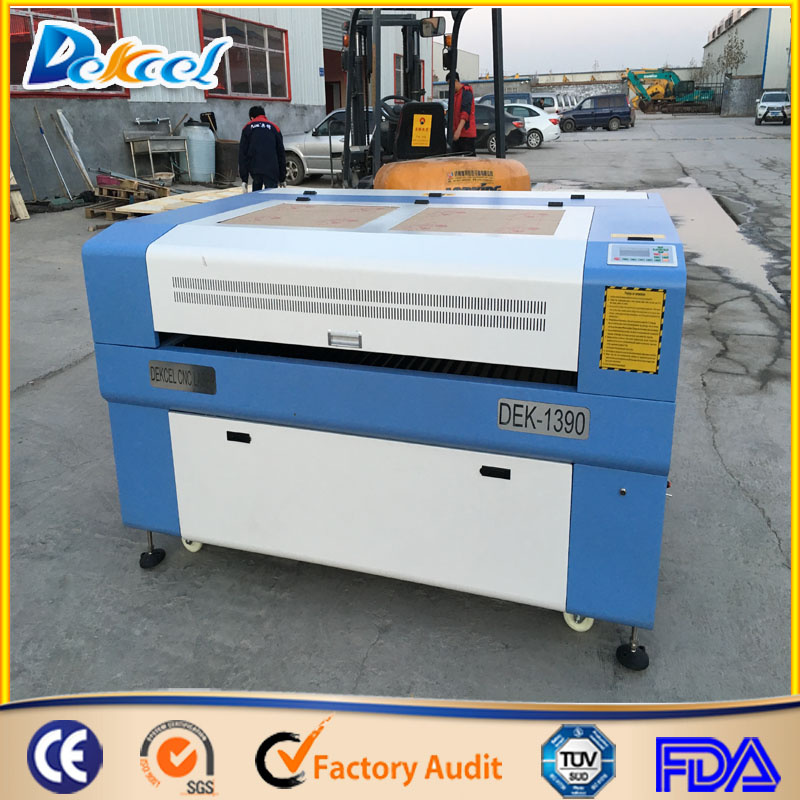

Hot Selling CNC laser engraver machine 80W 1390

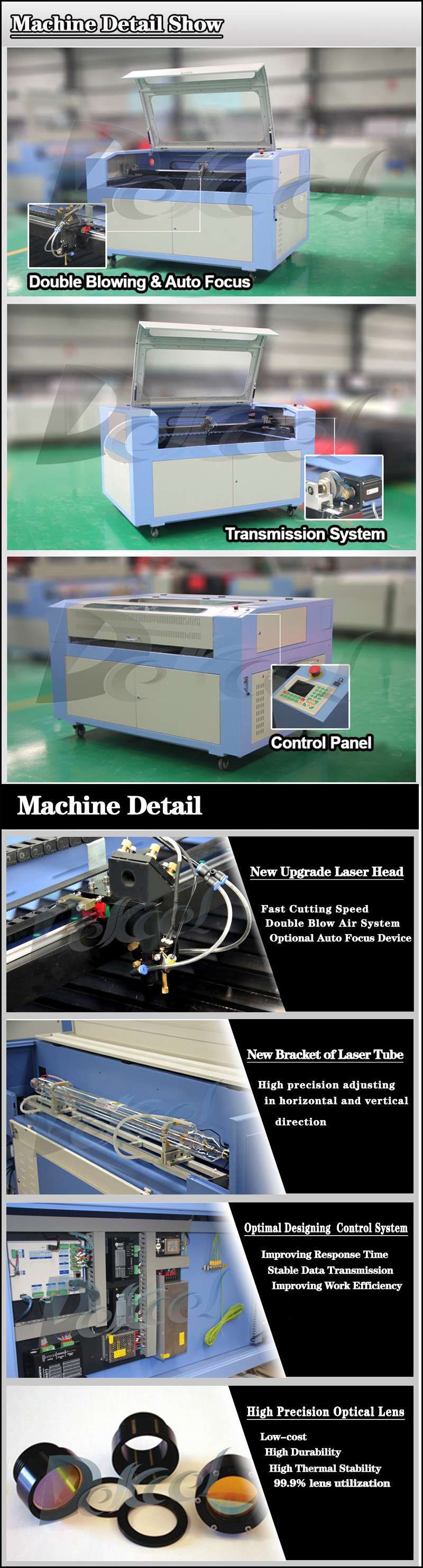

Laser engraver features
Rdcam color touchable screen control system in English--operate easily
Leedshine driving system--stable
Hiwin guide rail from Taiwan -- high precision
Singapore lens and mirror--reflection and focusing, long working life.
Red light position system --position precision
Automatic protection system--safe
All the feature of our laser engraving machine make sure its high quality and good work performance.
Technical Detailes for laser engraver Type | DEK-1390 |
Engraving Area | 1300 x 900mm |
Laser Power | 80W |
Laser Type | CO2 Laser Tube |
Engraving speed | 0~1000mm/s |
Cutting speed | 0~600mm/s |
Resetting positioning accuracy | 0.01mm |
Cutting depth | depend on materials |
Minimum Shaping Character | 1.5×1.5mm |
Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
Gross power | 1200W |
Software supported | ArtCut, CorelDraw, PhotoShop, AutoCAD |
Graphic format supported | PLT,DXF,BMP,JPG,GIF,PGN,TIF |
Engraver for Curve surfaces (Yes/No) | No (rotary attachment can be added for cylinders) |
Water Cooling: (Yes / No) | Yes |
Maximum Height of Materials to Engrave (mm) | 280mm(Up and down by motor) |
Laser Tube (life hours) | 10000 hours |
Assistant Equipment | Water pump | Exhaust Fan | Aluminum alloy worktable |
Optional Spare Parts | RF Tube | Rotary System | Cooling water system | Red Dot Pointer |
Recommended Spare Parts / Consumables | Laser Tube and Lens |
Machine parts | Tools bag |
Name | Amount | Units | Name | Amount | Units |
Water pump | 1 | set | Manual book | 1 | PC |
Air pump | 1 | PC | Software CD | 1 | PC |
Power line | 1 | PC | USB line | 1 | PC |
Smoke pipe | 1 | PC | Water pipe | 1 | PC |
Air pipe | 1 | PC | Pass lock | 1 | PC |
Tool bag | 1 | PC | | | |
More parts can provide to you as your request |

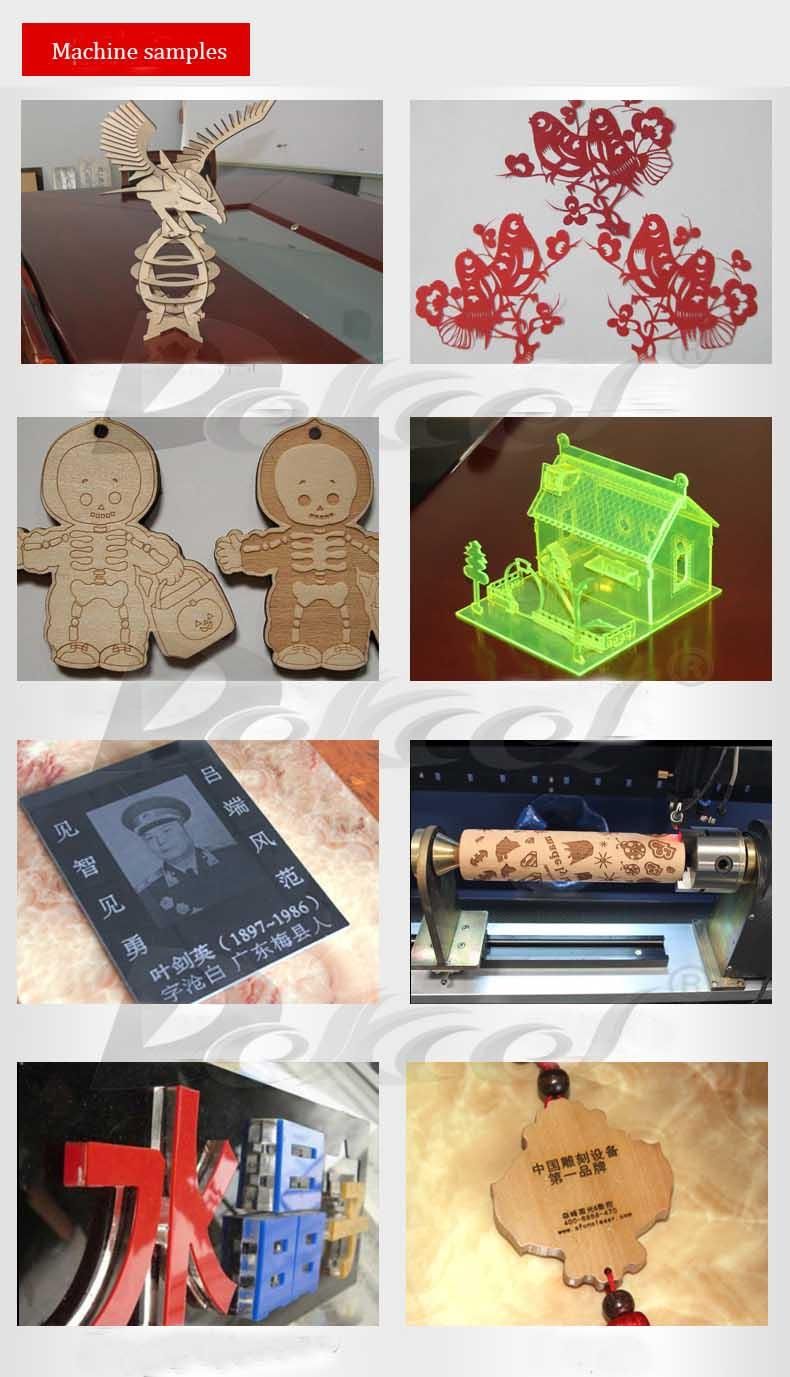

Application of laser engraver
This model can work on metal and non-metal materials .
1.Advertising industry: large blister word cutting, organic glass engraving and cutting,
engraving of double color board,scutcheon,crystal cup, authorize brand etc.
2.Leather and clothing industry: complex text and graphic engraving on leather,
synthetic leather,leatheroid,cloth,fur and leather.Craft processing like cutting,carving
patterns or designs on woodwork,hollowing out.Cutting of clothes,underware,home
decoration,gloves,bags,shoes,hats,toys and other industries.
3.Art & Craft industry: engraving on marble, bone, bamboo craft, leather, shell, ivory
and so on.
4.Model industry:cutting on architectural model, aviation and navigation model, and
wooden toys.
5.Packing and printing industry: engraving and cutting of printing rubber plate, and
cutting of sandwich plate and die board cutting.

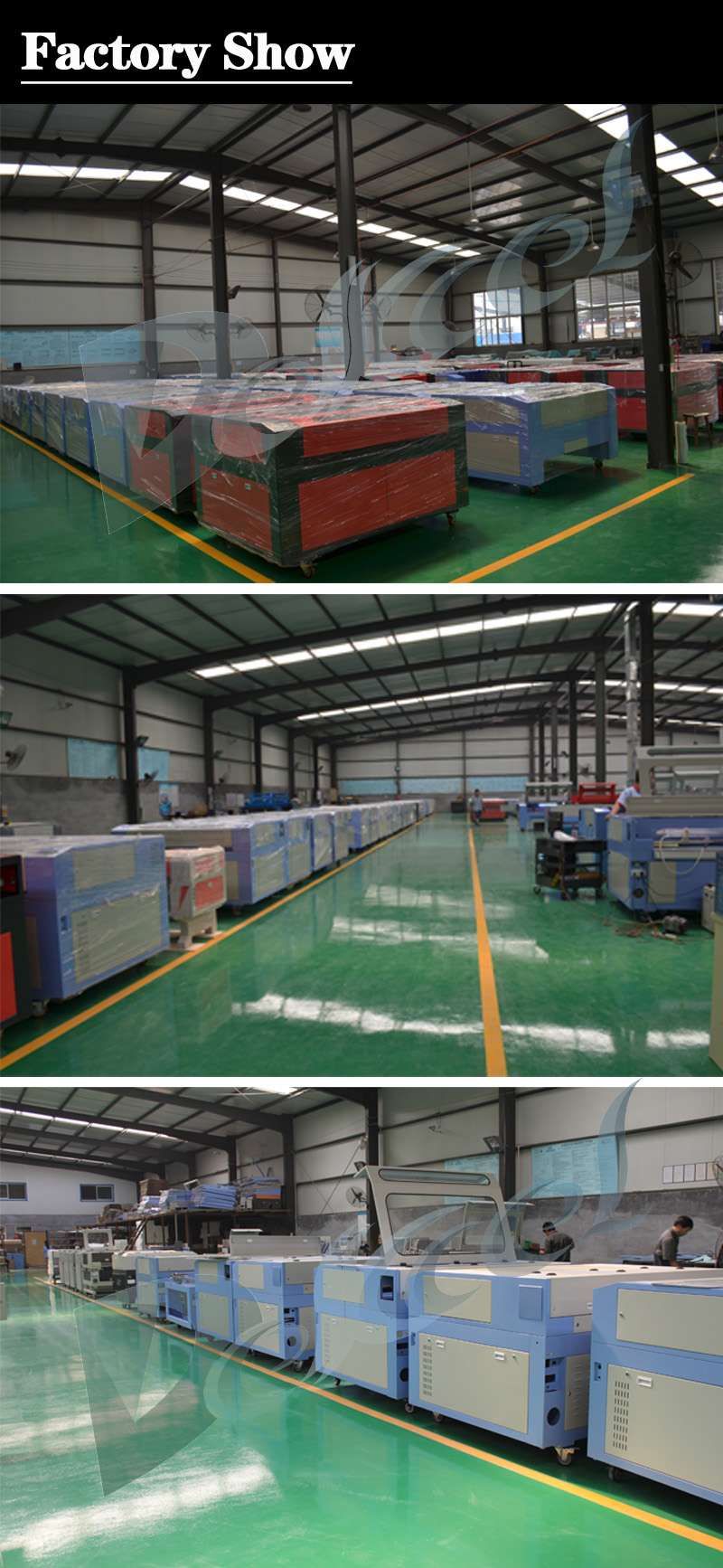

Laser engraver factory
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and skype or go to your home for after-sale service
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell
us your port name or your detailed address. There will be best shipping freight and machine price send to you
.After sales service:
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials? Dekcel advantage of laser engraver
1. High quality and competitive price
2. Imported accessories.
3. A line of production flow
4. Have the professional engineer.
5. 24 hours online service .
6. If you make a great order,can give you a discount(include some presents)
7. You can feel free to visit our factory or maybe have a trip in Jinan city
Looking for agents for all over the world
Thanks for your time!
