Product Specifications
| Prod Model: |
DEK-1390 |
| Cutting Area: |
1300*900mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, ISO, FDA |
| Format Of Instructions: |
Gcode, Hpgl |
| Driving System: |
Stepper Motor |
| Control Configuration: |
DSP /USB Interface |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rail |
Product Description
Application of mini cnc laser cutter
1. Used for all kinds of seals of mom-metal materials, such as ox horn,red plastic ,wood ,organic glass.All kinds of shapes such as square,circular,elliptical,bar,diamond,triangle,seals.
2. Suitable for small arts and crafts processing, can engrave all kind of graphics and text in the double color board,plank ,crystal ,bamboo,organic glass,cloth,leather and other materials
3. Can be carved the mane ,logo,model and date on the electronic component.
4. Can cut 25mm organic glass.
Advantages of cnc laser cutting machine
1).The "front" and "back" of our laser machine can be open, suitable for super-length material process.
2).Exclusive no water warning and automatic protection system, to protect the working life of laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
3).Ruida control panel in English, convenience of operation control.
4).Import liner bearing with high engraving precision
5).offline control system which can not only work without computer, but also connect to U disk, USB communication
6).Imported metal mirrors, with good ability of reflection and focusing, long working life.
7).Red dot position system realizes the exact position without laser.
8).Auto Focus technology, realize "easy focus & high efficiency" in real, not only a word.

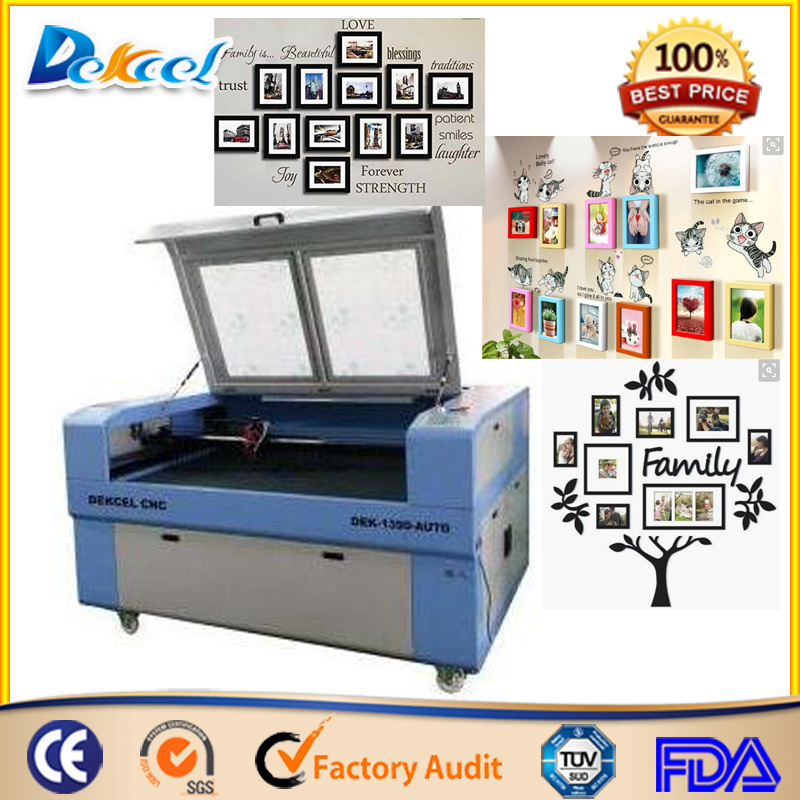

Technical Detailes for wood/MDF photo frame cnc laser cutting system:
| Working area | 1300*900mm |
| Laser Types | Sealed CO2 Laser Tube 50W-150W |
| Engraving speed | 0-60,000mm/min(according to different materials) |
| Cutting speed | 0-10,000mm/min(according to different materials) |
| Control system | Ruida |
| Location precision | ≤0.01mm |
| Resetting positioning accuracy | 0.01mm |
| Voltage | AC 110V-220V(±)10% / 50-60Hz |
| Minimum shaping character | English 1.0 x 1.0mm Chinese 2.0*2.0mm |
| Driving system | Stepper motor |
| Cooling mode | Water-cooling and protection system |
| Compatible Software | CoreDraw, AutoCAD, PhotoShop |
| Graphic format supported | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG,etc |
| Standard accessories | (01) User manual of machine(English version)
(02) User manual of software(English)
(03) USB cable
(04) Communication cable
(05) Air exhaust fan
(06)Air pump
(07) 3 reflecting mirrors (has been installed in the machine)
(08) One focus lens(has been installed in the machine )
(09) One laser tube(has been installed in the machine) |
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.we will give you 24hours service from phone and skype or go to your home for after-sale service
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you
.After sales service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
Looking for agents for all over the world
Thanks for your time!
