Product Specifications
| Prod Model: |
DEK-1325 |
| Power(W): |
4.5kw |
| Voltage: |
380V, 50/60Hz |
| Dimension(L*W*H): |
3070X1970X1550mm |
| Weight: |
1600kg |
| Engraving Speed: |
12000mm/Min |
| Spindle: |
4.5kw Air Cooling Spindle |
| Software: |
Type3, Artcut, Artcam, Ucancam |
| Table: |
T-Slot and Vacuum Working Table |
| Control System: |
Taiwan Syntec/Weihong Nk260 |
| Lathe Structure: |
Welding Steel Frame |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
Three Heads |
Product Description

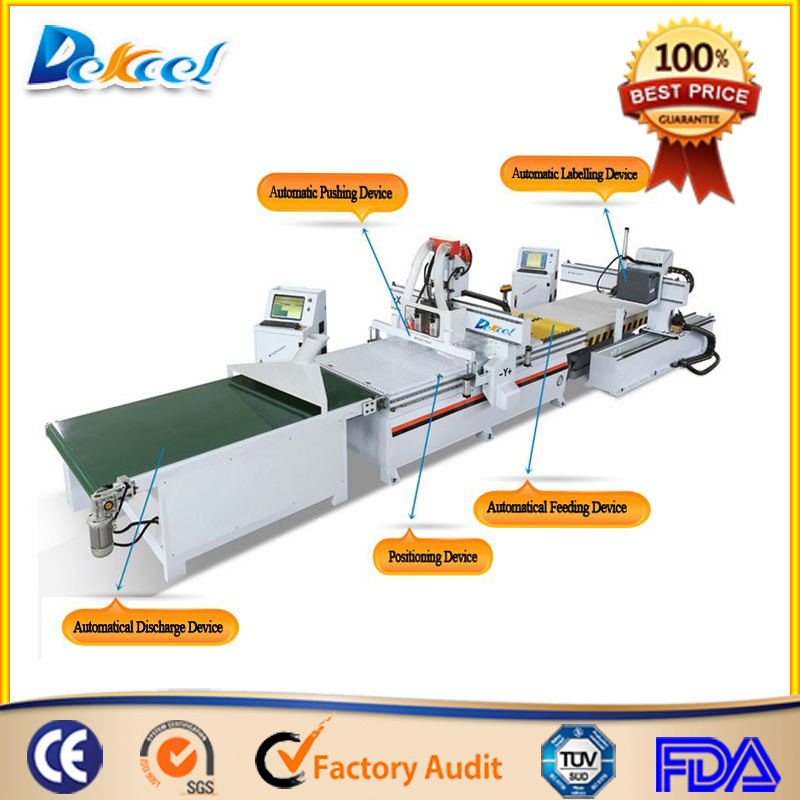

Features of wood panel furniture production line
The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
The major machine body makes the stability and no shacking in high speed.
XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
The professional mechanical design, scientific structure and generous appearance.
XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
High quality driver motor, spindle motor, cables, inverters, etc.
Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ ARTCAM/UG/PRO-E/MASTERCAM.
Application of cnc wood router cutting machine
1.Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Cylindrical objects
Techinical parameter of panel wood cnc cutting machine
Working area: |
1300*2500*200mm |
Spindle type: | Air-cooling spindle |
Spindle power |
4.5KW*3,two spindles,one drilling heads |
Spindle rotating speed |
0-18000rpm |
Power (except spindle power) |
5.8KW (include powers of: motors, drivers, inverters and so on) |
Power supply: |
AC380±10, 50 HZ |
Worktable: |
T-slot and vacuum table combined ,6 vacuum zone with clamps |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:2x2mm,letter:1x1mm |
Operating temperature: |
5°C-40°C |
Working humidity |
30%-75%(without condensed water) |
Working precision |
±0.03mm |
System resolution |
±0.001mm |
Control configuration: |
Weihong control system /Syntec control system |
Data transfer interface: |
USB |
System environment: |
windows 7 |
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
Compatible software |
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares. |
Cutting thickness: |
0-40mm also (depends on different material) |
Z tool censor: |
yes |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. Vacuum water pump / Vacuum oil-free pump
2. Double-head or multi-heads
3.Air cooled type spindle (China or Italian brand air spindle)
4.Smaller power spindles
5.Servo motors (China or Japan brand)
6.Weihong NC Control system ,Taiwan Syntec or DSP control system
7.Auto tool change system
(this system need other systems accordingly, like LNC control system, servo motors etc)
8.Mist spay cooling system
9.Dust collector
10.their features could be customized accordingly |
After service
1.1.5 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
About payment
We accept TT or Western Union. Paypal.
Before you pay,we will make Proforma Invoice for you.all items will listed on there.
About shipment
by sea or by air for your optional.
About delivery time:
As the manufacturer ,we pay more attention to the quality .So the machine will be tested well then send it to you.The delivery time is about 7-10 working days .because we must ensure all things are ready,then can send the machine to you.
