| Price: | US $ 5500-7000set |
|---|---|
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE 1325 |
|---|---|
| Voltage: | 380V/220V, 3phase, 50/60Hz |
| Dimension(L*W*H): | 3200*2140*1850mm |
| Power(W): | 6.0kw |
| Spindle: | 3kw Changsheng Water Cooling Spindle |
| Spindle Speed: | 0-24000rpm |
| Inverter: | 3.7kw Fuling Inverter |
| Working Area: | 1300*2500*200 mm |
| Structure: | Big Steel Welded Structure |
| Working Table: | Vacuum & T-Slot Table |
| Controll System: | DSP A11 Control System |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Mechanical |
| Controlling Mode: | CNC |
| Certification: | SGS BV TUV |
Advantages:
Features:

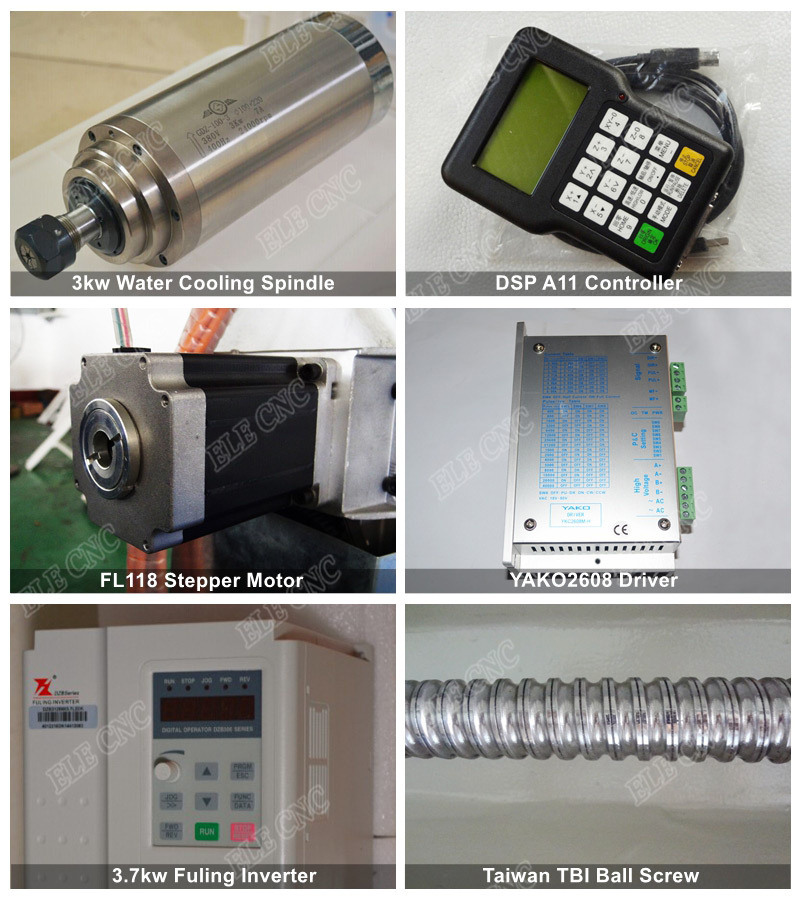

Main parts:
Technical Parameters:
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
Table Surface | T-slot & vacuum working table ,4 slots |
Spindle | 3kw Changsheng water cooling spindle |
X, Y Structure | 20#Taiwan HIWIN Linear guide and helical rack |
Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
Motor and driver | FL118 stepper motor,YAKO 2608 stepper driver |
Spindle Speed | 0-24000RPM |
Inverter | 3.7kw Fuling Inverter |
Command Language | G Code |
Control System | DSP A11 control system |
Computer Interface | USB |
Collet | ER20 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Optional | 3kw water circulation vacuum pump with water box 1.5kw New type duble-bag dust collector |
Applications:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
Packaging & Shipping
Our Services
Delivery port:
delivery date: in 15 working days after receiving the deposit
Payment: 50% T/T in advance and 50% T/T before delivery
Guarantee: 12months for the whole machine.
Within 18 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;
Out of 18 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
4, the factory will supply the videos and pictures to teach the client to install the gantry
After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory. You
will also get free suggestion and consulting, technical support and service by
email/fax/Tel and lifetime technical support.
