Product Specifications
| Prod Model: |
XCL030401 |
| Drive Method: |
1/4duty, 1/3bias |
| Polarizer Type: |
Transmissive / Negative /Glare |
| Operating Temp: |
-20-70 |
| Storage Temp: |
-30-80 |
| Voltage: |
Vdd:5.0V Vlcd:7.5V |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Metering Module |
| Type: |
LCM |
| Response Time: |
16ms |
| Display Technology: |
FSTN/CSTN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Viewing Angle: |
12 O`Clock |
Product Description
Product Description

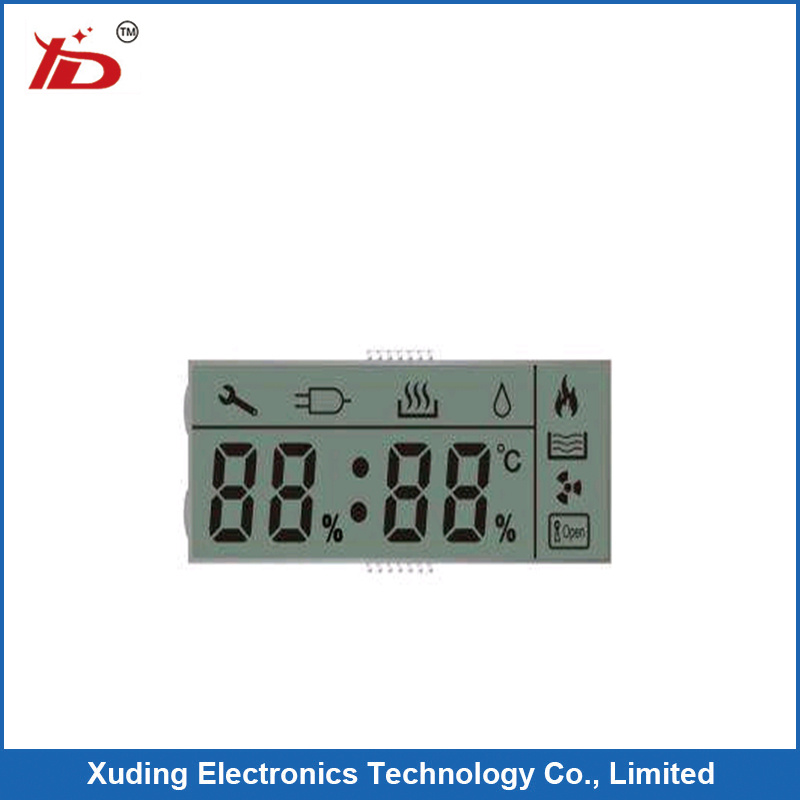

VA lcd display with white backlight
1. The product description
| | |
| Manufacturer | XUDING |
| Series number | XCOI070105-01 |
| Display format | |
| Outline dimension | 85*32mm |
| Visual area | 80*29 mm |
| Active area | mm |
| Character size | mm |
| DOT (pixel) size | mm |
| IC package | |
| IC or equivalent | |
| Interface | 1/4Duty 1/3Bias |
| Interface | Parallel |
| Display type | STN/FSTN/FFSTN |
| Sunlight readable | No |
| Touch panel optional | No |
| Contrast ratio(typ) | No |
| Viewing direction | 12:00 |
| LED backlight color | Blue /yellow green /gray |
| Appearance | White on blue/black on yellow green/white on gray |
| Power supply(typ) | 3.3V |
| Backlight current (typ) | side, white Led(4PCS) |
| Operating temp | -20ºc-70ºc |
| Storage temperature | -30-80ºc |
| If accept customized | Yes |
| RoHS compliance | Yes |
