FSTN-Cog LCD Display Module 240*128 Resolution Outdoor and Indoor LCD Screen

FSTN-Cog LCD Display Module 240*128 Resolution Outdoor and Indoor LCD Screen
Price: US $ 7.55-7.8/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: T/T

Product Specifications


Prod Model: XCGG241204
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Method: 1/128duty,1/12bias
Polarizer Type: Transmissive / Negative /Glare
Operating Temp: -20--70
Storage Temp: -30--80
Voltage: Vdd:3.3V Vlcd:16.0V
Screen Size: ≤17"
Application: Mobile Phone
Aspect Ratio: 4:3
Feature: 3D Display
Type: STN
Widescreen: Not Widescreen
Response Time: 16ms
3D: 3D
Optimum Resolution: 240*128

Product Description


Product Description

COG 240*128 Graphic Liquid Crystal Display Module

1. The product description



Manufacturer   XUDING
Series numberXCGG2401204
Display format240*128 Dots
Outline dimension93*58*12.4mm
Visual area86.15*47.78mm
Active area83.03*45.04mm
Character size
0.32*0.32 mm
DOT (pixel) size0.34*0.34 mm
IC package
COG
IC or equivalent
UC1698U
Interface
1/128Duty   1/12Bias
InterfaceParallel
Display typeSTN/FSTN/FFSTN
Sunlight readable
No
Touch panel optionalNo
Contrast ratio(typ)No
Viewing direction6:00
LED backlight color
Blue /yellow green /gray
AppearanceWhite on blue/black on yellow green/white on gray
Power supply(typ)3.0V
Backlight current (typ)side, white Led(6PCS)
Operating temp
-20ºc~70ºc
Storage temperature-30ºc~80ºc
If accept customizedYes
RoHS complianceYes

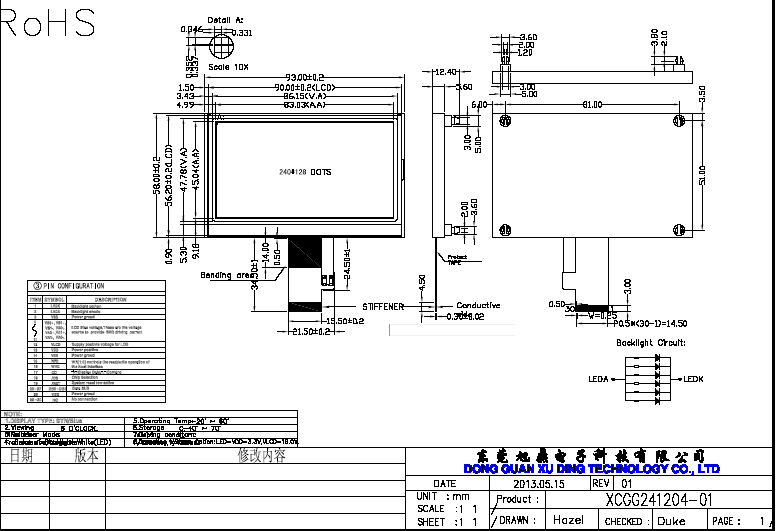

2. Outline size







Dongguan xu ding electronics technology Co., Ltd. (XUDING) professional sales LCD/LCM/TFT LCD display. Its products are widely used in electric power terminal, digital control, instrumentation, medical equipment, security, tax control equipment, industrial automation and other fields.

XUDING with independent research and development capabilities, and more than 5 years experience of quality personnel complete facilities, reasonable workshop layout, advanced equipment, professional technical support, and for the supplier to our company in the LCD panel industry customers long-term support and trust

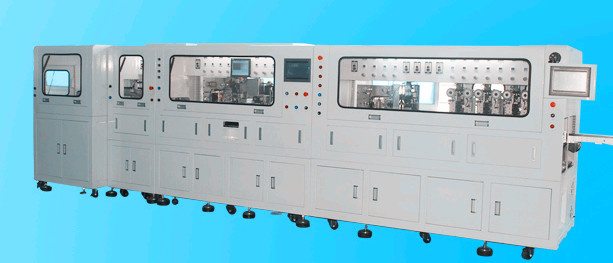

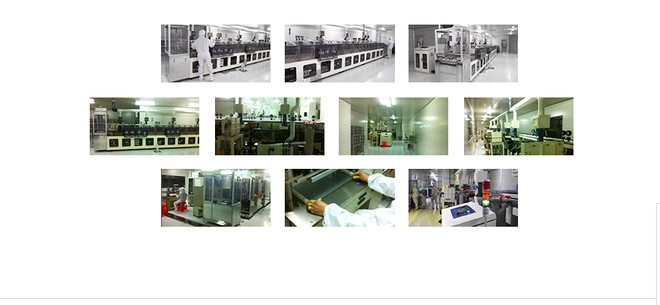

Our production plant has stringent quality control to guarantee Absolute product quality. Our production equipment are state-of-the-art Japanese technology Including COB, TAB, COG, etc.

Thank you for choosing Xu Ding electronic science and technology, long-term cooperation and common development, we will serve you wholeheartedly!
