Product Specifications
| Prod Model: |
TDGC2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current Type: |
AC |
| Frequency: |
Industrial Frequency |
| Phase: |
Single Phase or Three Phase |
| Usage: |
Td(S)Gc2 |
| Brand: |
Chana or OEM |
Product Description
Application

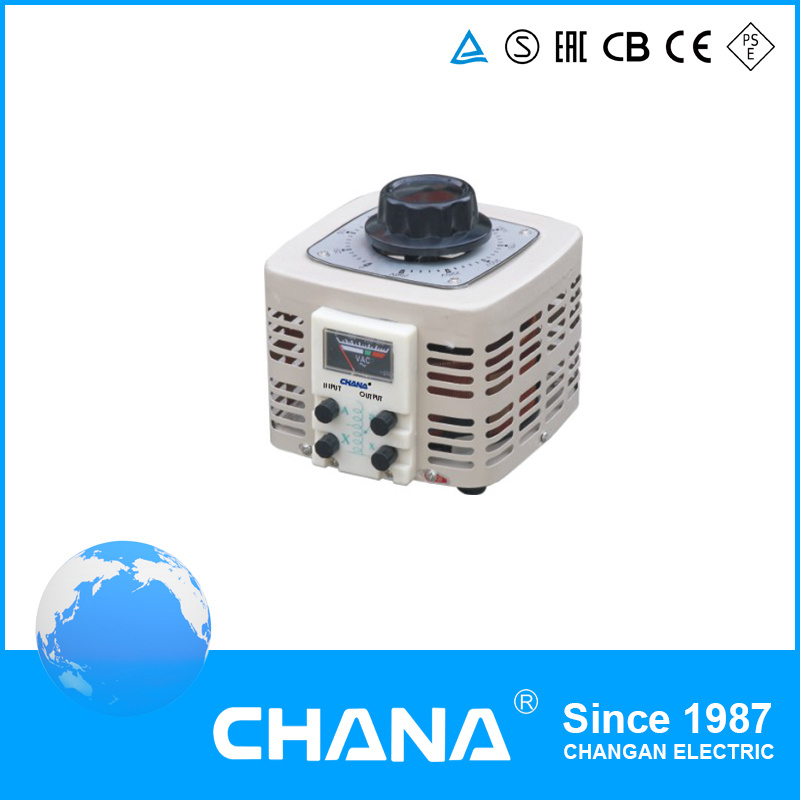

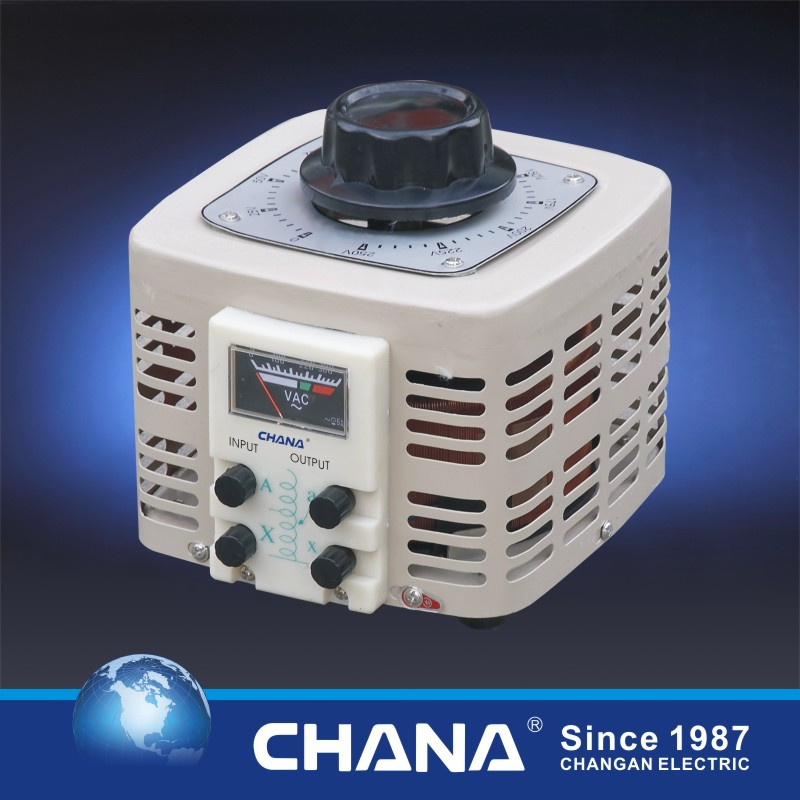

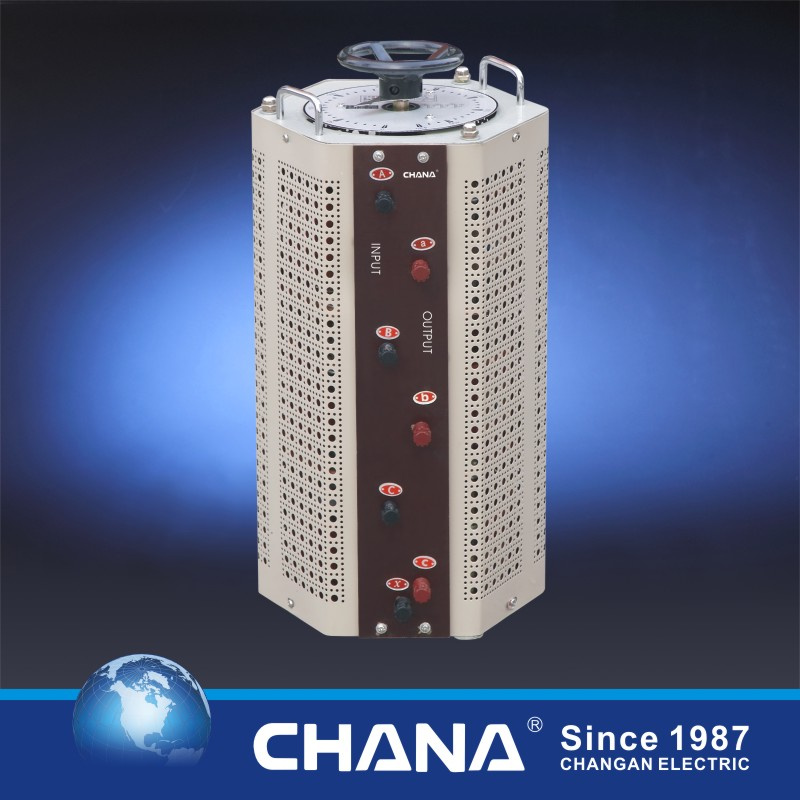

TD(S)GC2 contact voltage regulator is dry self-cooled variac transformer. It can be applied in industry(metallurgy, chemic, instrument, manufacturing, light industry, scientific experiment and housedhold appliances for relize voltage regulating, power, temperature and light controlling.
Feature
The product features fidelity in waveform. Small shape. High effciency, convertience, raliable and long-runtime. It's an ideal AC regulated power supply.
Normal Working conditions and installation conditions
The alitude is not more than 1000m
Ambbient temperature;
The highest temperature: +40º C
The average temperature of the hottest month: +30º C
The highest average temperature of year: +20º C
The lowest temperature: -5º C
The waveform of supply voltage
The wave form of supply voltage is close to sine wave
The three phase supply voltage is symmetric
The three phase voltage should be almost symmetric for three phases voltage regulator.
Installlation environment
It can not be connected in parallel with each other
It should be used indoors
The environment should be clean
Grand acceleration caused by earthquakeag; Horizontal less than 3m/s^2, vertical less than 1.5m/s^2.
Special working conditions
If you demand other special working conditions except these above-mentioned normal working comditions, please illuminated when inquire and order.
| Type | Rated Capacity | Phase No. | Rated frequency | Rated input voltage | Rated output voltage | Rated ouput current |
| TDGC2-0.5 | 0.5KVA | 1 | 50Hz | 220V | 0-250V | 2A |
| TDGC2-1 | 1KVA | 1 | 50Hz | 220V | 0-250V | 4A |
| TDGC2-2 | 2KVA | 1 | 50Hz | 220V | 0-250V | 8A |
| TDGC2-3 | 3KVA | 1 | 50Hz | 220V | 0-250V | 12A |
| TDGC2-5 | 5KVA | 1 | 50Hz | 220V | 0-250V | 20A |
| TDGC2-10 | 10KVA | 1 | 50Hz | 220V | 0-250V | 40A |
| TDGC2-15 | 15KVA | 1 | 50Hz | 220V | 0-250V | 60A |
| TDGC2-20 | 20KVA | 1 | 50Hz | 220V | 0-250V | 80A |
| TDGC2-30 | 30KVA | 1 | 50Hz | 220V | 0-250V | 120A |
| TDGC2-1.5 | 1.5KVA | 3 | 50Hz | 220V | 0-250V | 2A |
| TDGC2-3 | 3KVA | 3 | 50Hz | 220V | 0-250V | 4A |
| TDGC2-6 | 6KVA | 3 | 50Hz | 220V | 0-250V | 8A |
| TDGC2-9 | 9KVA | 3 | 50Hz | 220V | 0-250V | 12A |
| TDGC2-15 | 15KVA | 3 | 50Hz | 220V | 0-250V | 20A |
| TDGC2-30 | 30KVA | 3 | 50Hz | 220V | 0-250V | 40A |
