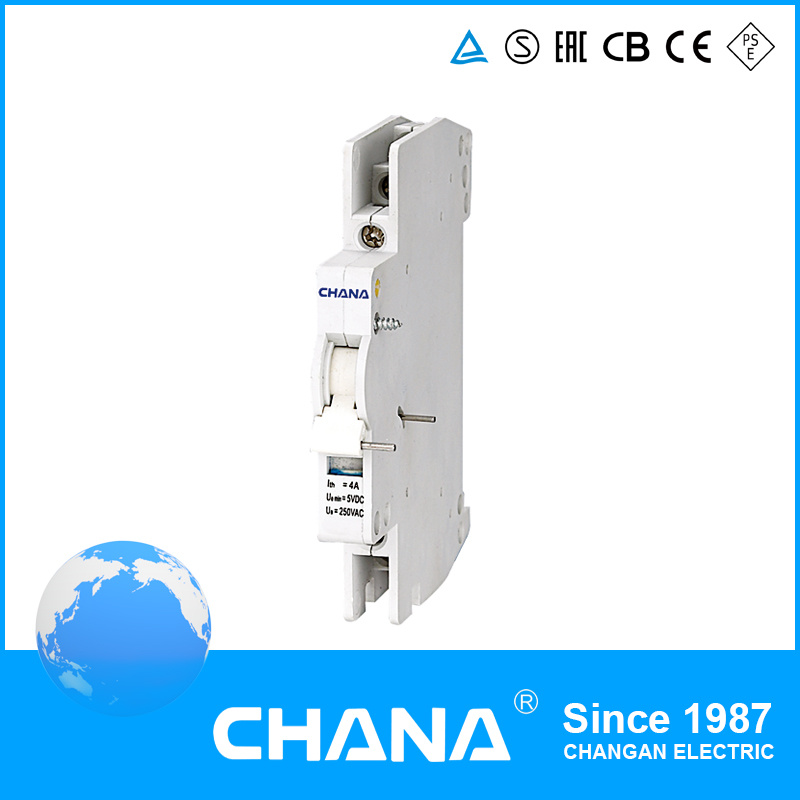

Alarm Auxiliary Contact Accessories for MCB RCCB
| Price: |
US $ 2.09-2.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
EKM1-FB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Frequency: |
50/60Hz |
| Brand Name: |
Chana |
| Packing Type: |
Carton |
| Export Market: |
Global |
| Quality: |
AAA |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Certification: |
TUV |
| Poles Number: |
1 2 3 4 |
Product Description
Description For EKM1-FBFree samples can be provided!!!Technical Data1)EKM1-OF&EKM1-FBElectrical Features R
ated value: A C415 /400V 50/60Hz 3A
A C240 /400V 50/60Hz 3A
D C130V 1A
D C48V 2A
D C24V 6A
Configurations: EKM1-OF 1N/O+1N/C
EKM1-FB 1N/O+1N/C
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Rated short circuit making capacity: 20le, t=0.1s
Dielectric test voltage at ind. Freq. for 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2Mechanical FeaturesElectrical life:6,000
Mechanical life:10,000
Protection degree: I P20
Ambient temperature (with daily average≤35ºC):-5ºC...+40ºC
Storage temperation: -25ºC...+70ºCInstallationTerminal connection type: Cable
Terminal size top/bottom for cable: 2.5mm2 18-13AWG
Tightening torque 0.8 N*m 7In-Ibs.
Item | Data |
| Contact operating | AC: Un=415V In=3A Un=240V In=6A |
| current | DC: Un=130V In=1A Un=48V In=2A Un=24V In=6A |
| Dielectric Properties | Auxiliary contact should bear 2000V, |
| 1 min frequency voltage withstand test. |
| Life | The operating life of auxiliary contact |
| shall never be less than 5000 times. |
2EKM1-MXElectrical Features Rated voltage US(V): AC230/400 50/60Hz DC24 DC48 A C24 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Rated short circuit making capacity: 20le, t=0.1s
Dielectric test voltage at ind. Freq. for 1min: 2kV
Insulation voltage Ui: 500V
Pollution degree: 2Mechanical FeaturesElectrical life:4,000
Mechanical life:4,000
Protection degree: I P20
Ambient temperature (with daily average≤35ºC):-5ºC...+40ºC
Storage temperation: -25ºC...+70ºCInstallationTerminal connection type: Cable
Terminal size top/bottom for cable: 2.5mm2 18-13AWG
Tightening torque 0.8 N*m 7In-Ibs.About US: Changan Group Co.,Ltd was established at years of 1987,which is leading of industrial electric appliances,integrating the research&development,manufacture,trade,information service functions together. At present,group have passed ISO9001,ISO14001,OHASA18001 and acquired 3C certification for all products,all of our export product are strictly production according to ISO9001 and IEC standard,some product had got CE,CB,SMEKO,KEMA certification.The company has owned 10 son companies,50 sales branch,3000 employees ,areas of 0.4 million square meters,registered capital reached 26 million,yearly out put value reached 346 million.The company has the honor to be titled as "China star enterprise","China top 500 private enterprise","China top 500 in machinery industry","China top 10 of LV electric appliance"
