| Price: | US $ 0.6-0.7/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 180/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |

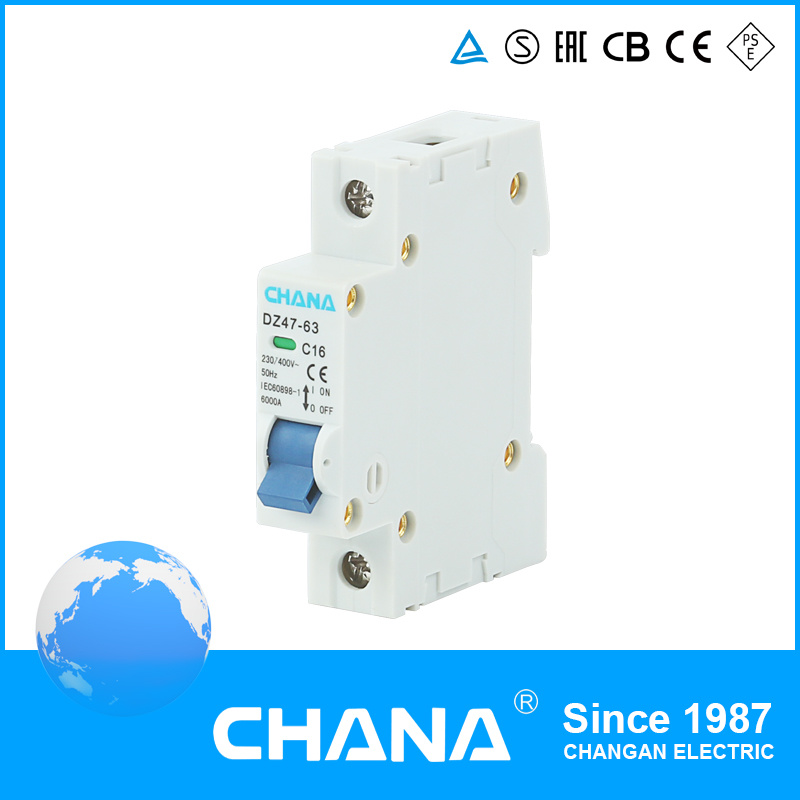

| Prod Model: | DZ47-63 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | PA |
| Handle Color: | Blue or Customized |
| Coil: | Cooper |
| Contacts: | Silver |
| Breaking Capacity: | Low Voltage Circuit Breakers |
| Operation: | Manual Type |
| Speed: | Normal Type Circuit Breaker |
| Arc-extinguishing Medium: | Air |
| Structure: | MCB |

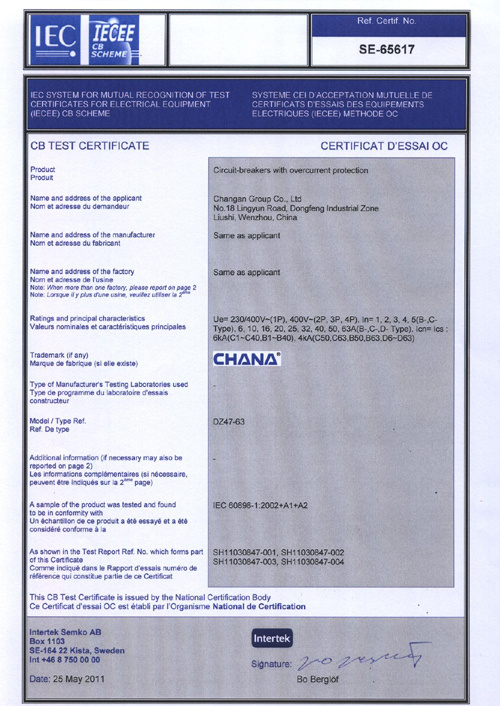

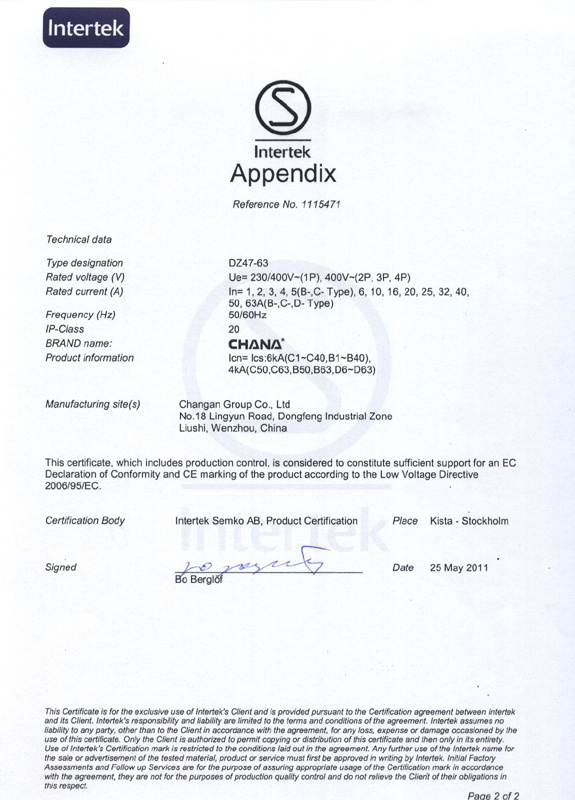

| Certification: | Eac,RoHS,Semko |
| Installation: | DIN Rail |
| Poles Number: | 1p,1p+N,2p,3p,3p+N.4p |
Electrical Features
Rated current In :1,2,3,4,6,10,16,20,25,32,40,50,63A
Poles:1P, 1P+N, 2P, 3P, 3P+N,4P
Rated voltage Ue:240/415V
Insulation voltage Ui :500V
Rated frequency:50/60Hz
Rated breaking capacity :4500A(3000A,4000A,6000A can customized)
Energy limiting class:3
Rated impulse withstand voltage(1.2/50) Uimp:4000V
Dielectric test voltage at ind. Freq. for 1 min:2kV
Pollution degree:2
Thermo-magnetic release characteristic: B,C,D
Mechanical Features
Electrical life:8,000
Mechanical life:20,000
Contact position indicator: Yes
Protection degree:IP20
Reference temperature for setting of thermal element:30ºC
Ambient temperature (with daily average≤35ºC): -5ºC...+40ºC
Storage temperation: -25ºC...+70ºC..
Installation
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2.0 N*m 22 In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
Connection: From top and bottom
Combination with accessories
Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
Alarm contact: Yes
About US:

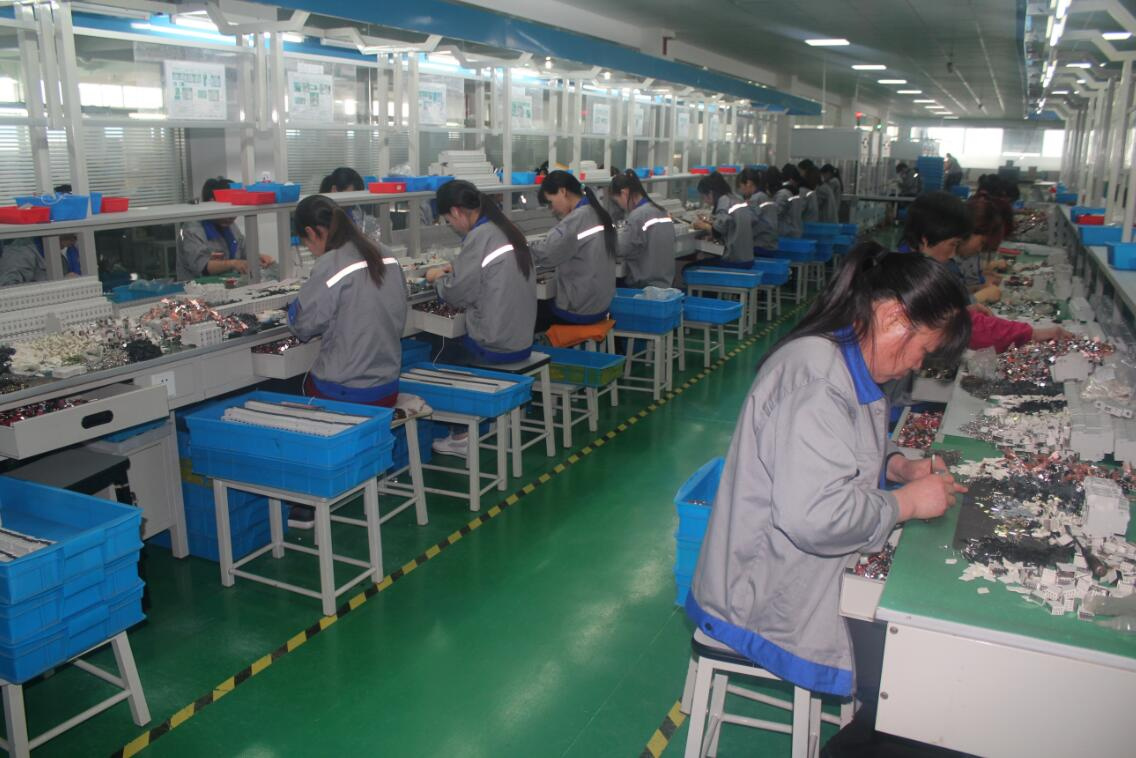

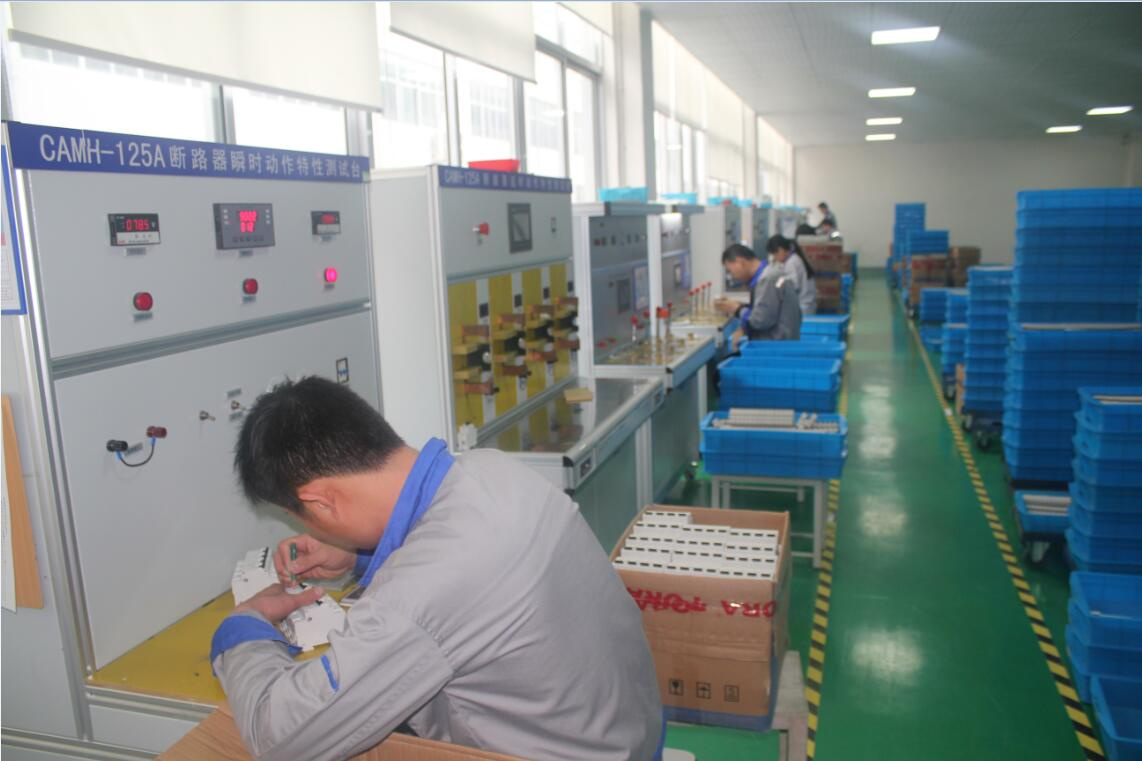

Changan Group Co.,Ltd was established at years of 1987,which is leading of industrial electric appliances,integrating the research&development,manufacture,trade,information service functions together. At present,group have passed ISO9001,ISO14001,OHASA18001 and acquired 3C certification for all products,all of our export product are strictly production according to ISO9001 and IEC standard,some product had got CE,CB,SMEKO,KEMA certification.The company has owned 10 son companies,50 sales branch,3000 employees ,areas of 0.4 million square meters,registered capital reached 26 million,yearly out put value reached 346 million.The company has the honor to be titled as "China star enterprise","China top 500 private enterprise","China top 500 in machinery industry","China top 10 of LV electric appliance"
Our product range:
1,Circuit Breaker: MCB,RCCB,RCBO,MCCB,ACB,VCB,SPD,ATS.
2,Contactor:AC/DC contactor,Mini Contactor,Capacitor switching contactor,home contactor,Mechanical interlocking ac contactor
3,Relay: Thermal overload relay,time relay,power relay,general relay,Crystal level relay,Pump water level automatic controller,CAD6 controller relay,Phase broken and phase sequence protection relay,
4,Switch:Pushbutton switch,limit switch,CAL control box,Rotary switch,main Switch,knife switch ,Float Switch,Cam starter and LED indicator,Mircocomputor control wsitch,
5,Voltage AC Stabilizer and Regulator
6,Starter:magnetic starter,Star-delta starter,soft starer,press reduce starter.
7,Dry Transformer,Current transformer and fuse
8,Motor protector:JD8,JD5,JD6,MPCB
9,Distribution Box,Plastic distribution box,Metal distribution box,distribution cabinet
10,Power Capacitor,Compensator,Speed controller,
Shipping:
1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable
Warranty:
1.We provide 1.5 year warranty.
2. Compensation will be paid if product had badly quality problem.
