| Price: | US $ 20000-40000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Money Gram,Western Union |

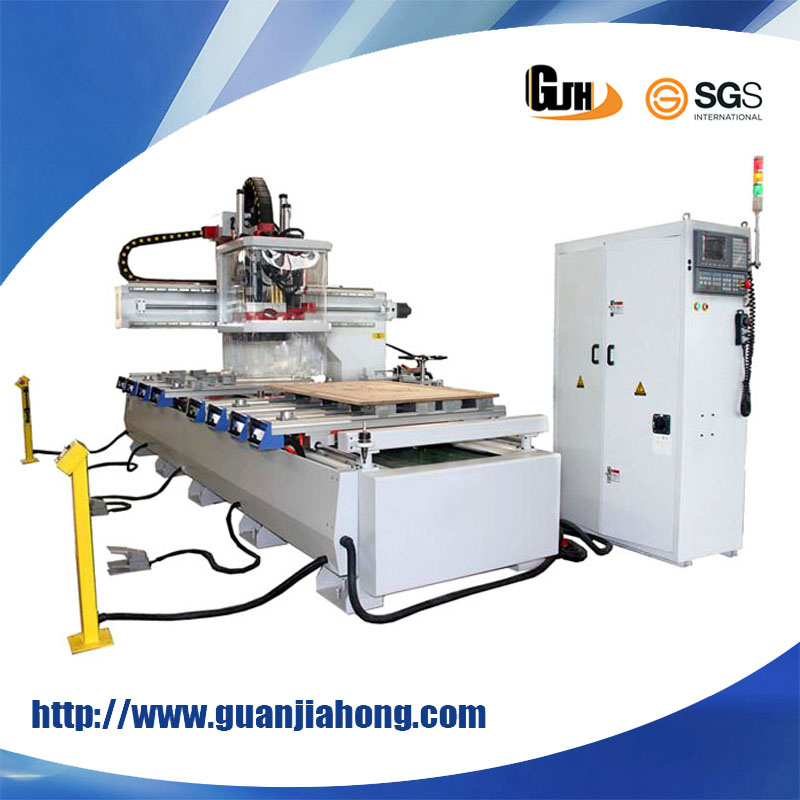

| Prod Model: | DTC-1335 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: | Woodworking |
| Engraving Machine Type: | CNC Engraving Machine |
| Power: | High Power |
| Drive Type: | AC Servo Drive |
| Control: | CNC |
| Certification: | SGS |
| Current: | AC |
| Condition: | New |
| Table Size: | 1440X3040mm |
| Movement: | Gantry |

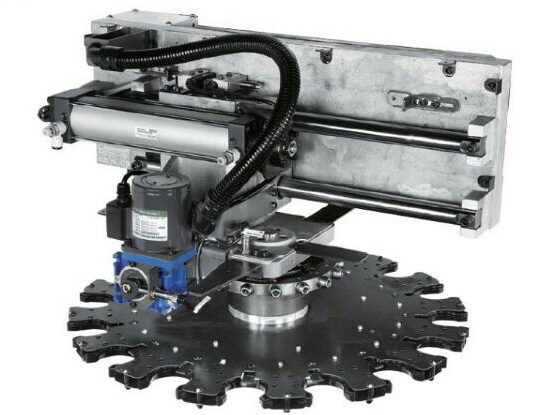

1. Circle style automatic tool changer with 8 pieces of tools in total. Changing the tool automatically only needs 8 second. It used to engraving and drilling holes on top space.
2. Italian Combination drill (11 bits+ 1 saw blade), saw blade for cutting panels into different sizes "X" axis and "Y" axis, drilling for cut holes on 4 side faces of wooden panel for insert lockset (perpendicular to "Z" axis)
3. Adopting Taiwan-made SYNTEC control system, separate keyboard control system and color LCD screen makes the machine have perfect performance.
4. Adopting high-torque Japan-made YASKAMA servo motor and driver, with steady working capability and high positioning precision.
5. Adopting Italy-made HSD air-cooling spindle make the machine have high precision, long life-time and steady working capacity. Auto-tool changer system makes the machine safer and save time.
6. Auto oil-injection system makes the maintenance more convenient.
7. Most Electric parts are imported from World Famous Brand company.
1.Wood processing: processing of various furniture such as door, window, cabinet, craft wooden door, screen and so on.
2. Advertisement: engraving and cutting various labels and number plate.
3. Art craft: engraving characters of any languages and graphics on gifts and souvenirs.
Application material:
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.
Processing effect:
Our router may carve various shade vulture, relief and etc. And it can do: Engraving, cutting , milling, drilling, etc.
Technical parameter:
| MODEL | DTC-1325-ATC |
| Working Area -X Y Z | 1300*2500*400mm |
| Overall dimension | 1800*3400*2000mm |
| Processing accuracy | 0.05mm |
| Repeat positioning accuracy | 0.04mm |
| Spindle | 9KW(ATC spindle)HSD |
| Max. spindle speed | 24000r/min |
| Max. Idling speed | 40000mm/min |
| Max. working Speed | 30000mm/min |
| Run mode | Servo |
| Working Voltage | AC380V/50Hz (220V/50Hz) |
| Command | Standard G code |
| Operating System | SYNTEC |
| Countertops | Vacuum adsorption |
| Diameter of Cutter | Φ3.175-Φ12.7 |
| Software | ArtCAM/Type3/WENTAI |
High Quality Parts and Accessories provide High Quality products:

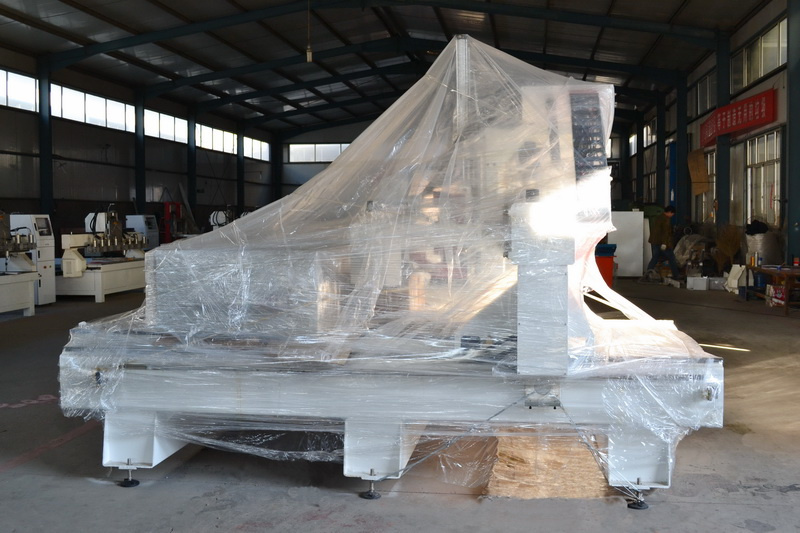

Live action for Packing & Workshop:
WE WILL :
1. Provide the user a CD to study the machine installation and commissioning.
2. Our technicists can give user online guide.
3. The user can call or email us any problems at any time.
4. One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.
