| Price: | US $ 2400-3310/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | UG-5040L |
|---|---|
| Working Area: | 500*400mm |
| Laser Type: | CO2 Sealed-off Laser Tube |
| Rated Laser Power: | 60W |
| Working Table: | Honey Comb |
| Driver And Motor Type: | Yako Stepper Motor and Driver |
| Guide Rail: | Linear Square Guide Rail |
| Control System: | Leetro Mpc6585 |
| Software: | Lasercut 6.1 |
| Auto Lifting Table: | up and Down 180mm |
| Rotary Axis: | Roller Type |
Small Mini 500* 400mm 60W Co2 Laser Engraving Cutting Machine with Rotary Axis
Applications
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Features
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Laser Tube
Adopted famous 60W Co2 laser tube, more powerful, long time time and stable
Working Table
Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.
Auto Lifting Table:Maximum Loading 50kgs with 180mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Motion System
Imported High precision, low friction force and stand wear and linear guide rails and blocks with 3M belt ensured stable transmission, lower noise
Operation System
Advanced USB port Leetro DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Rotary axis
Roller type for cylinder engraving
Technical Parameters
Effective working area | 500*400mm |
Laser Type | Co2 sealed-off laser tube |
Laser tube power | 60W |
Working table | Honey comb |
Auto lifting table | Up and down 180mm automatically |
Driver mode | Stepper motor and Driver, Yako brand |
Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
Transmission | Belt transmission |
Control panel | English |
Laser output control | 1-100% software setting |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-10000mm/min |
Control system | Leetro MPC6585 |
Control software | LaserCut 6.1 |
Design software when delivery | CorelDraw |
Control panel | DSP offline |
Resolution accuracy | < 0.01mm |
Location precision | < 0.01mm |
Highest scanning accuracy | 2500DPI |
Type of cooling | Water pump cooling |
Water protection system | Yes |
Blow-off system | Air pump for the laser head Air blower for the machine |
Biggest scanning accuracy | 2500DPI |
Working temperature | 0-45 °C |
Operating humidity | 5-95% (without condensed water) |
Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
Voltage | AC 220V+10% 50/60Hz, single phase or AC 110V+10% 50/60Hz, single phase |
Certificate | CE/FDA |
Parts Photos

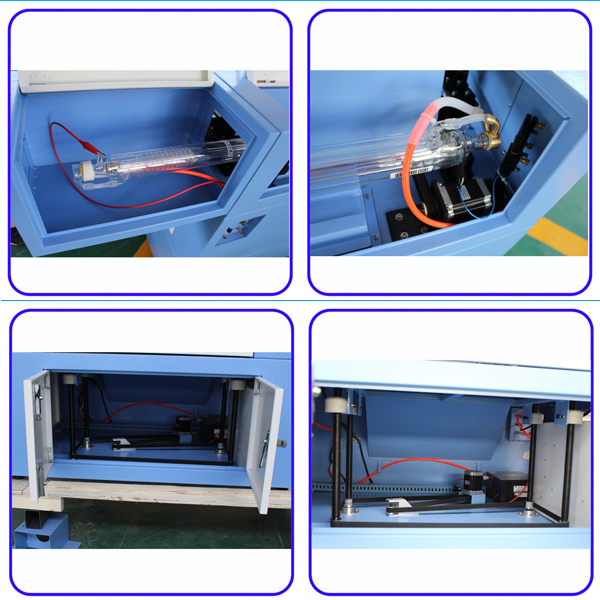

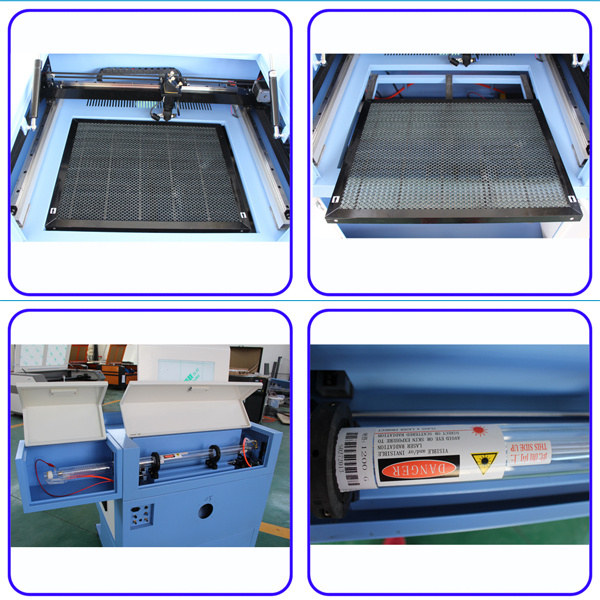

Honey comb working table/60W Co2 laser tube/auto lifting table

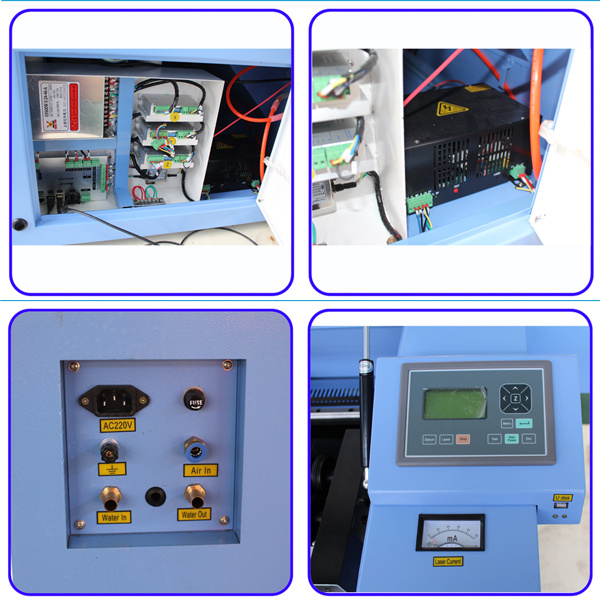

Control cabinet/Leetro control panel/power socket/

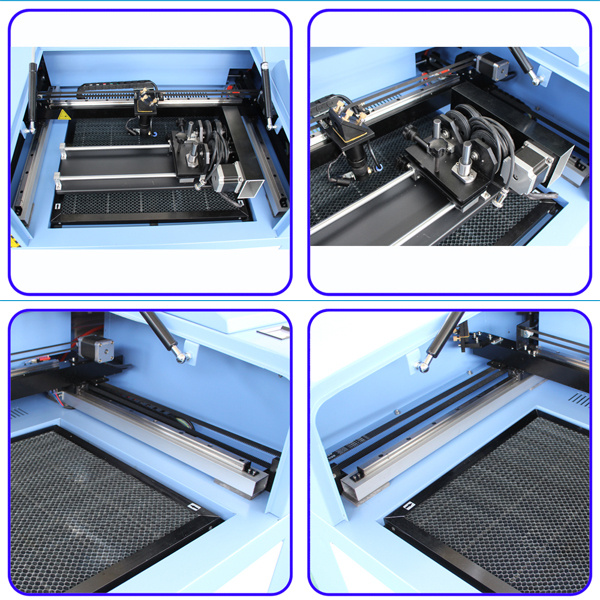

Roller rotary axis/ Linear square guide rail

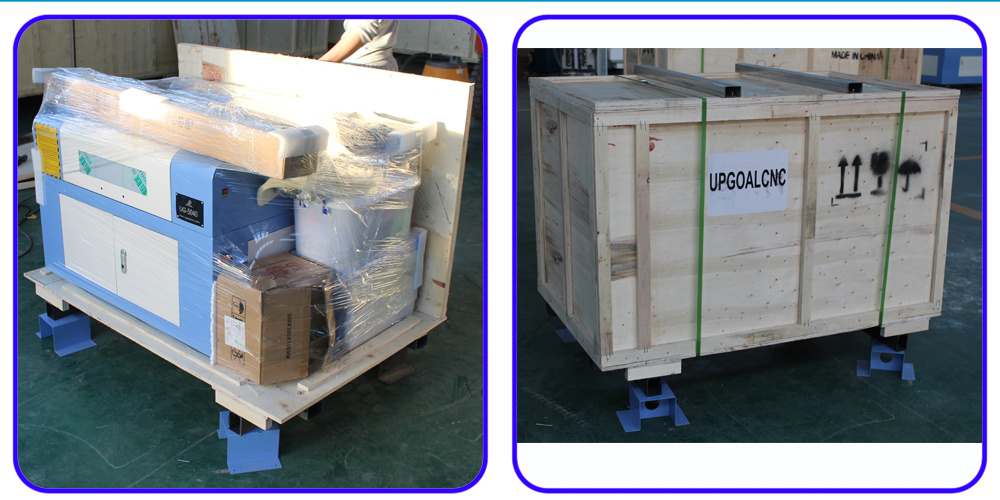

Packing
Reference Working Videos
https://www.youtube.com/watch?v=R2Oz8zmkQd4

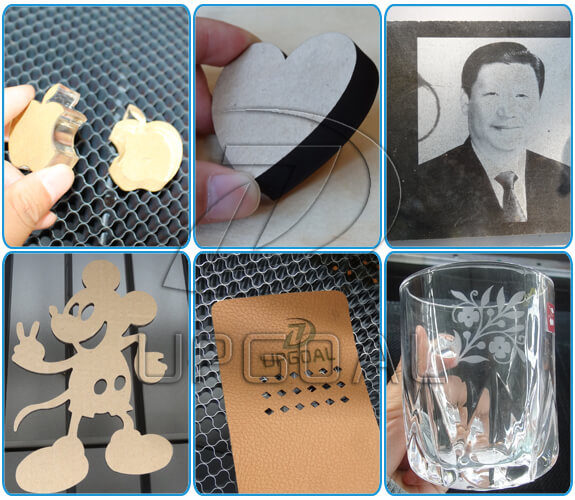

Reference Sample Photos
For more information, just feel free to contact us!
