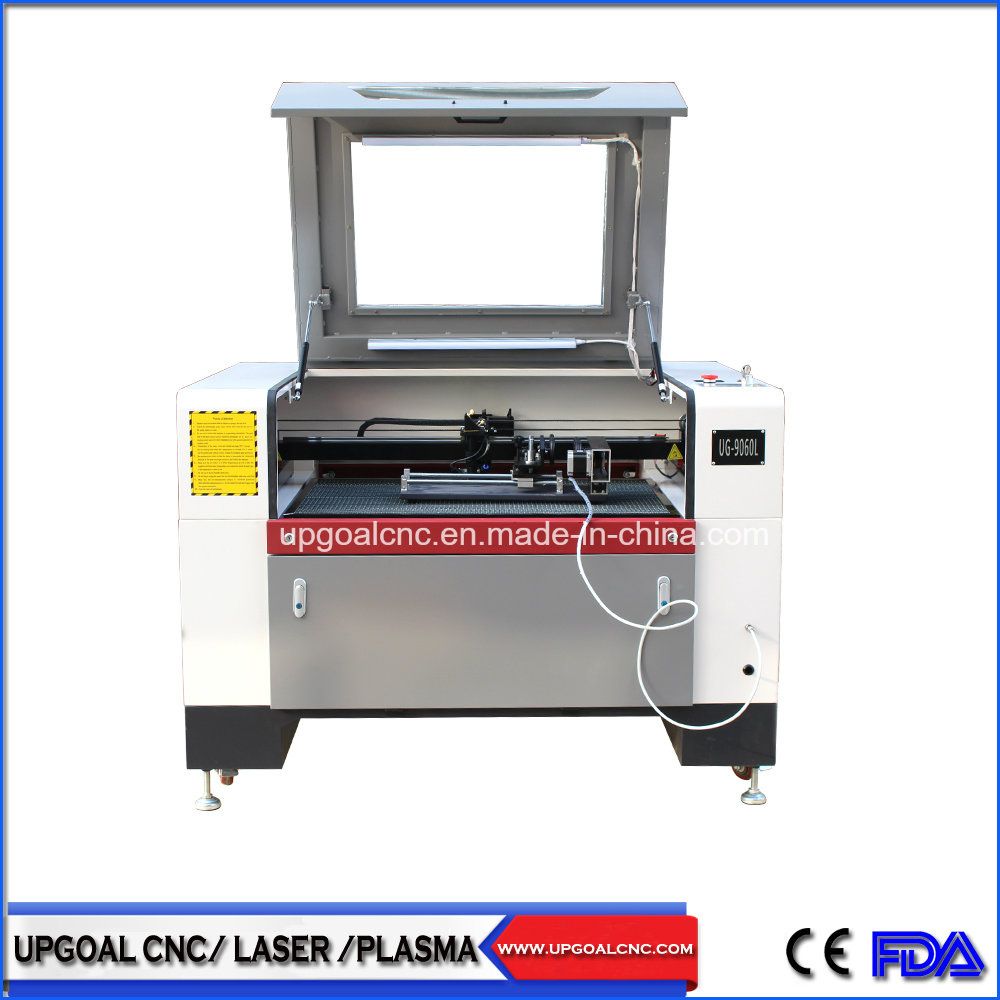

90W 9060 CO2 Laser Engraving Cutting Machine with Rotary Axis

90W 9060 CO2 Laser Engraving Cutting Machine with Rotary Axis
Price: US $ 2400-3210/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: UG-9060L
Working Area: 900*600mm
Laser Type: CO2 Sealed-off Laser Tube
Rated Laser Power: Reci W2, 90W
Working Table: Honey Comb and Knife Strip Double Working Table
Driver And Motor Type: Yako Three Phases Stepper Motor and Driver
Guide Rail: Linear Square Guide Rail
Transmission Type: Belt Transmission
Rotary Axis: Roller Type No Diameter Limitation
Control System: Ruida 6442s and Rd Works V8 Software
Lifting Table: Auto up and Down 150mm

Product Description

90W 9060 Co2 Laser Engraving Cutting Machine with Rotary Axis





Features

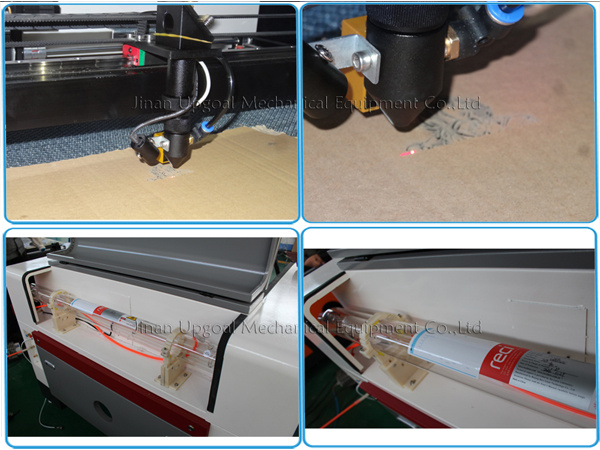

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality Reci W2 (rated power 90W, maximum power 100W)  Co2 laser tube,  long working time time and stable

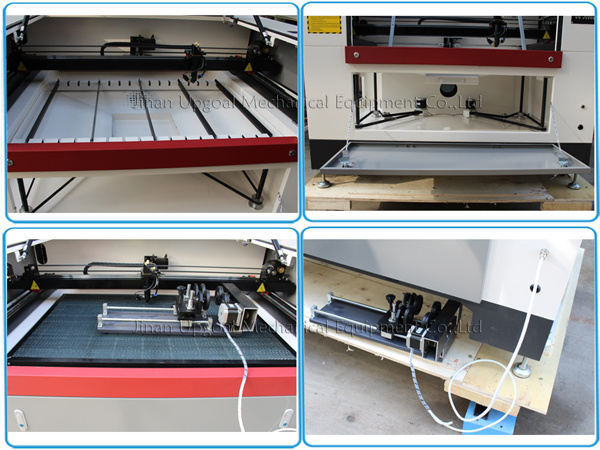

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thickness materials

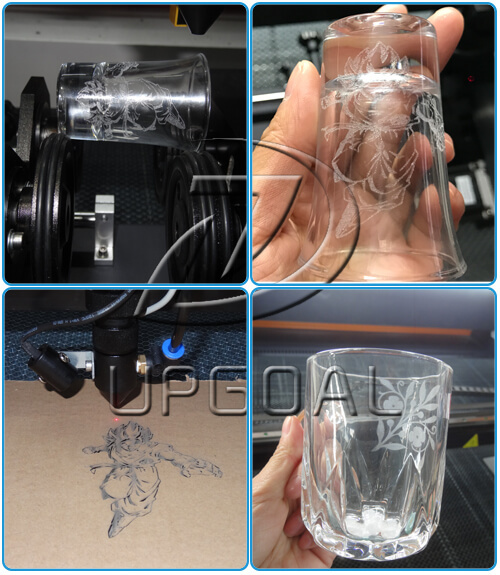

Rotary Axis

Roller type rotary axis, no diameter limitation, suitable for glass engraving.




Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

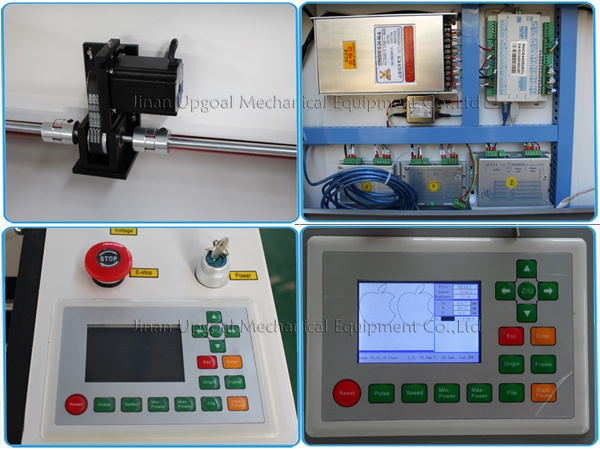

Operation System

Advanced USB port  RuiDa 6442S control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-5000, ensuring the laser tube long time continuous working.

Technical Parameters


Effective working area

900*600mm

Laser Type

Co2 sealed-off laser tube

Laser tube power

Reci S2, rated power 90W, maximum power 100W

Working table

Honey comb and knife strip, double working table

Lifting table

Auto, up and down

Driver mode

3 phases stepper motor and Driver, Yako brand

Guide rail

Linear square guide rail ( Hiwin,Taiwan)

Transmission

Belt transmission

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RuiDa 6442S

Control software

RDWorksV8

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller CW-5000 cooling

Water protection system

Yes

Focus

Auto focusing

Blow-off system

Air pump for the laser head

Air blower for the machine

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format

PLT,DST,DXF,BMP, DWG,AI,LAS,etc

Voltage

AC220V +10% 50/60Hz, single phase

or AC 110V+10% 50/60Hz, single phase

Certificate

CE/FDA




Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.

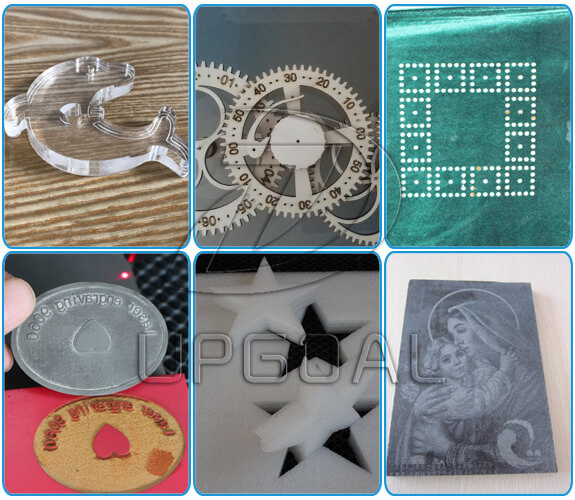

Reference Sample Photos


Reference Working Videos

https://www.youtube.com/watch?v=1yYquU7CcTQ&t=13s

https://www.youtube.com/watch?v=TRG5llGCVy4&t=191s

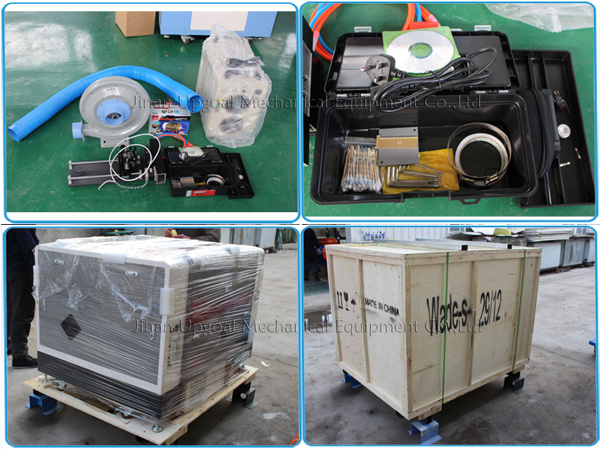

Accessories and packing

 For more information, just feel free to contact us!
