| Price: | US $ 2400-3310/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | UG-1390L |
|---|---|
| Working Area: | 1300*900mm |
| Laser Type: | CO2 Sealed-off Laser Tube |
| Rated Laser Power: | Efr F2 80W |
| Working Table: | Knife Strip |
| Driver And Motor Type: | Yako Three Phases Stepper Motor and Driver |
| Guide Rail: | Linear Square Guide Rail |
| Transmission Type: | Belt Transmission |
| Cutting Speed: | 0-10000mm/Min |
| Control System: | Ruida 6442s |
| Software: | Rdworks V8 |

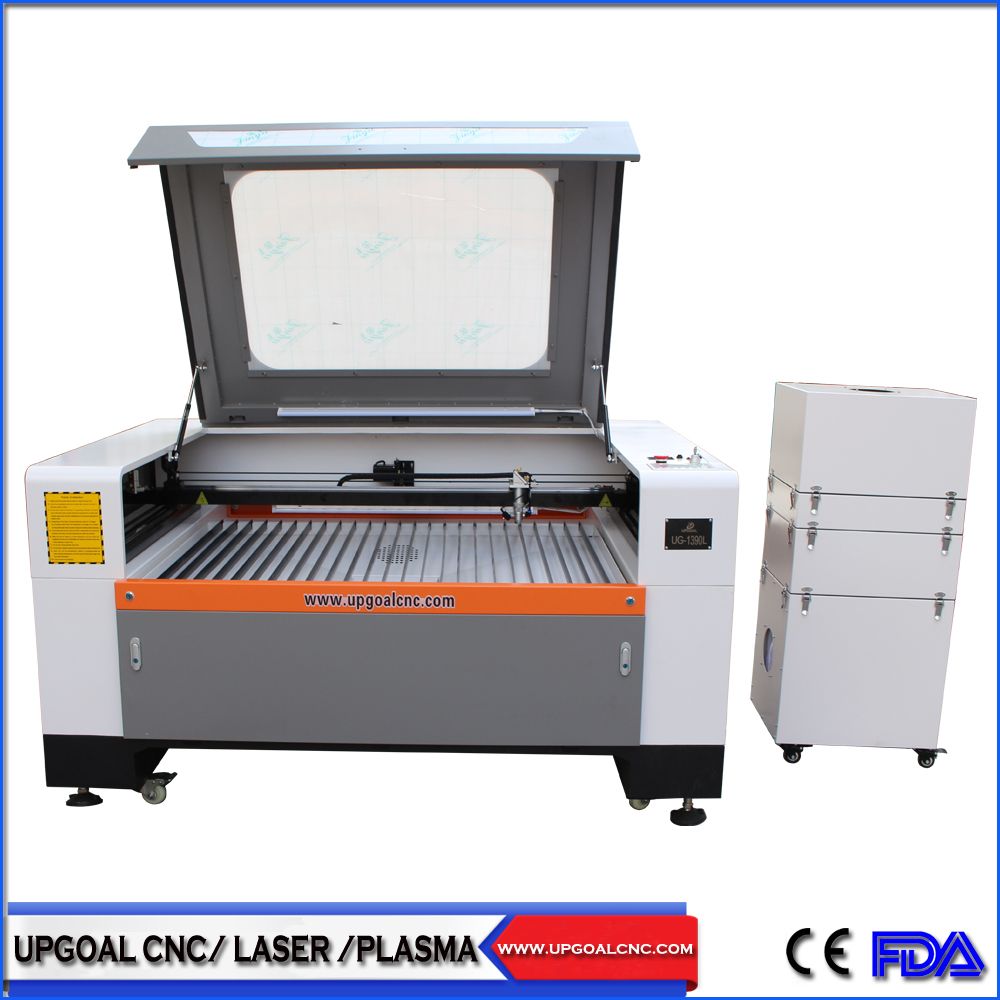

100W 1390 Model Co2 Laser Engraving Cutting Machine for Advertising Materials
Features

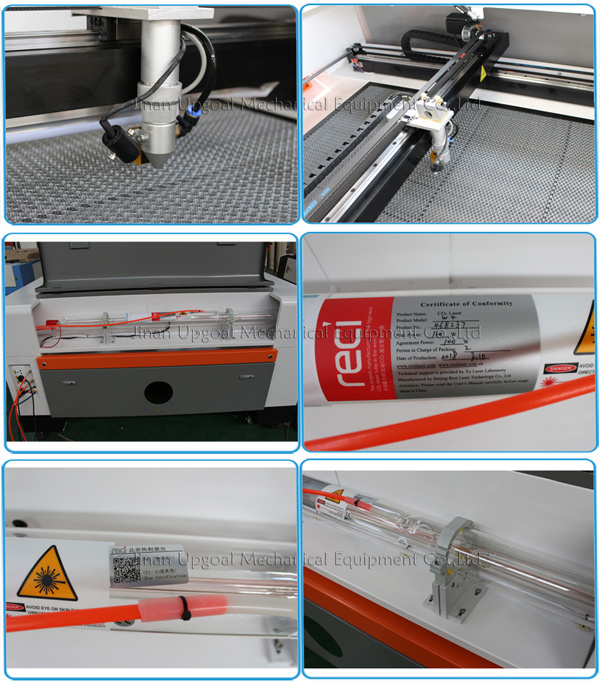

Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Laser Tube
Adopted high quality Reci W2 100W Co2 laser tube, long working time time and stable

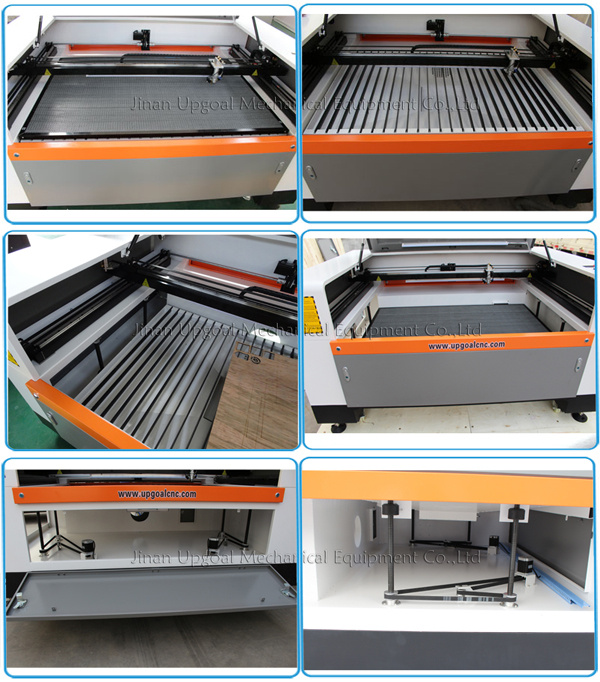

Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality
Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.
Motion System
Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

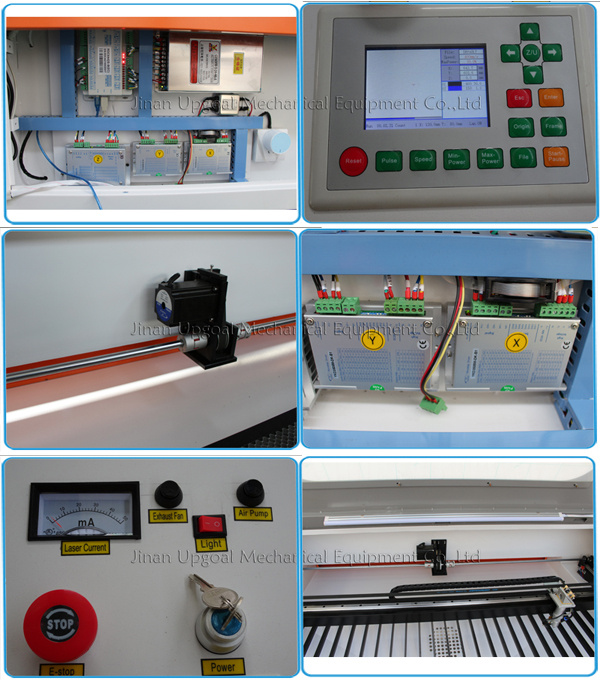

Operation System
Advanced USB port RuiDa 6442 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With WIFI connection function, no need to use USB cable, convenient and improving working efficiency.
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.

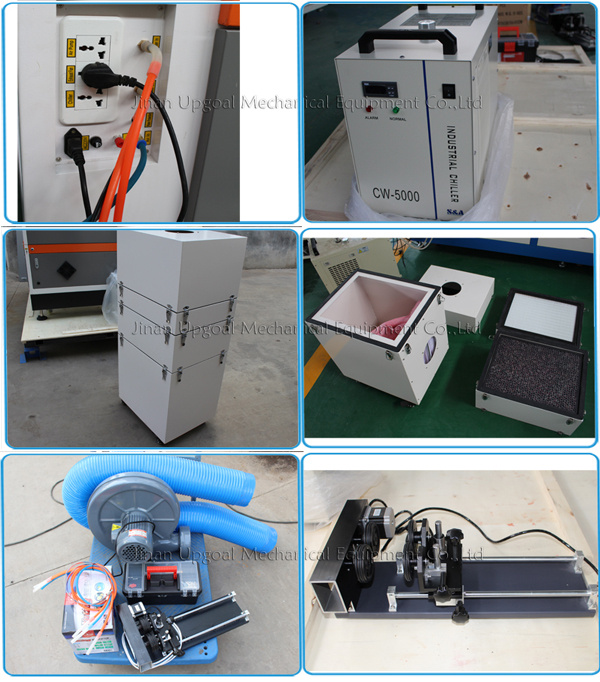

Cooling System
Industrial chiller CW-5000, ensuring the laser tube long time continuous working.
Air filtration system
Air filter with 5 layers filtration, during the laser engraving cutting machine using, can filtering a mass of gas & smoke which are harmful to human health when engraving & cutting processing materials. Has the feature of low noise, flexible using, and cover small area.
Roller type rotary axis for all kinds of cylinder engraving, special for goblet engraving.
Technical Parameters
Effective working area | 1300*900mm |
Laser Type | Co2 sealed-off laser tube |
Laser tube power | W4series, Reci, Beijing (Rated power: 100W, max. Power: 130W) |
Working table | Honey comb and knife strip, double working table |
Lifting table | Automatic up and down |
Driver mode | 3 phases stepper motor and Driver, Yako brand |
Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
Transmission | Belt transmission |
Control panel | English |
Laser output control | 1-100% software setting |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-10000mm/min |
Control system | RuiDa RDC6442S |
Control software | RDWorks V8 |
Wifi connection | Yes |
Design software when delivery | CorelDraw |
Control panel | DSP offline |
Resolution accuracy | < 0.01mm |
Location precision | < 0.01mm |
Highest scanning accuracy | 2500DPI |
Type of cooling | Industrial chiller CW-5000 cooling |
Water protection system | Yes |
Focus | Auto focus |
Blow-off system | Air pump for the laser head Air blower for the machine |
Air filtration system | Air filter |
Working temperature | 0-45 °C |
Operating humidity | 5-95% (without condensed water) |
Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
Voltage | AC 110V±10% 50/60Hz, single phase or AC 220V±10% 50/60Hz, single phase or |
Certificate | CE/FDA |
Applications
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=G8E68hvonbc

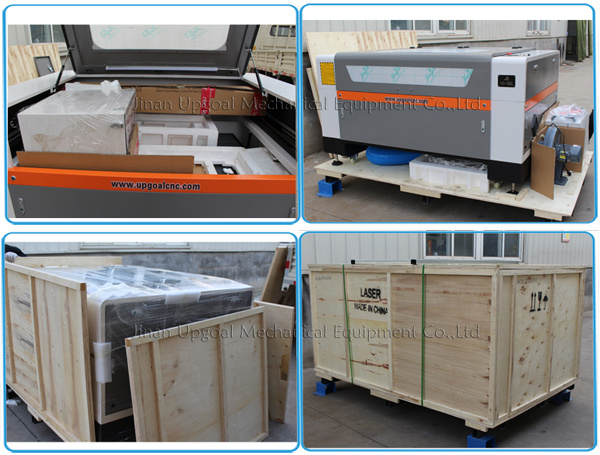

Packing
For more information, just feel free to contact us!
