| Price: | US $ 1500-2999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | UG-5040L |
|---|---|
| Working Area: | 500*400mm |
| Laser Type: | CO2 Sealed-off Laser Tube |
| Rated Laser Power: | 90W |
| Working Table: | Honey Comb&Knife Strip |
| Auto Lifting Table Ditsance: | 180mm |
| Driver And Motor Type: | Stepper Motor and Driver |
| Guide Rail: | Linear Square Guide Rail |
| Transmission Type: | Belt Transmission |
| Engraving Speed: | 0-10000mm/Min |
| Control System: | Ruida 6442s |

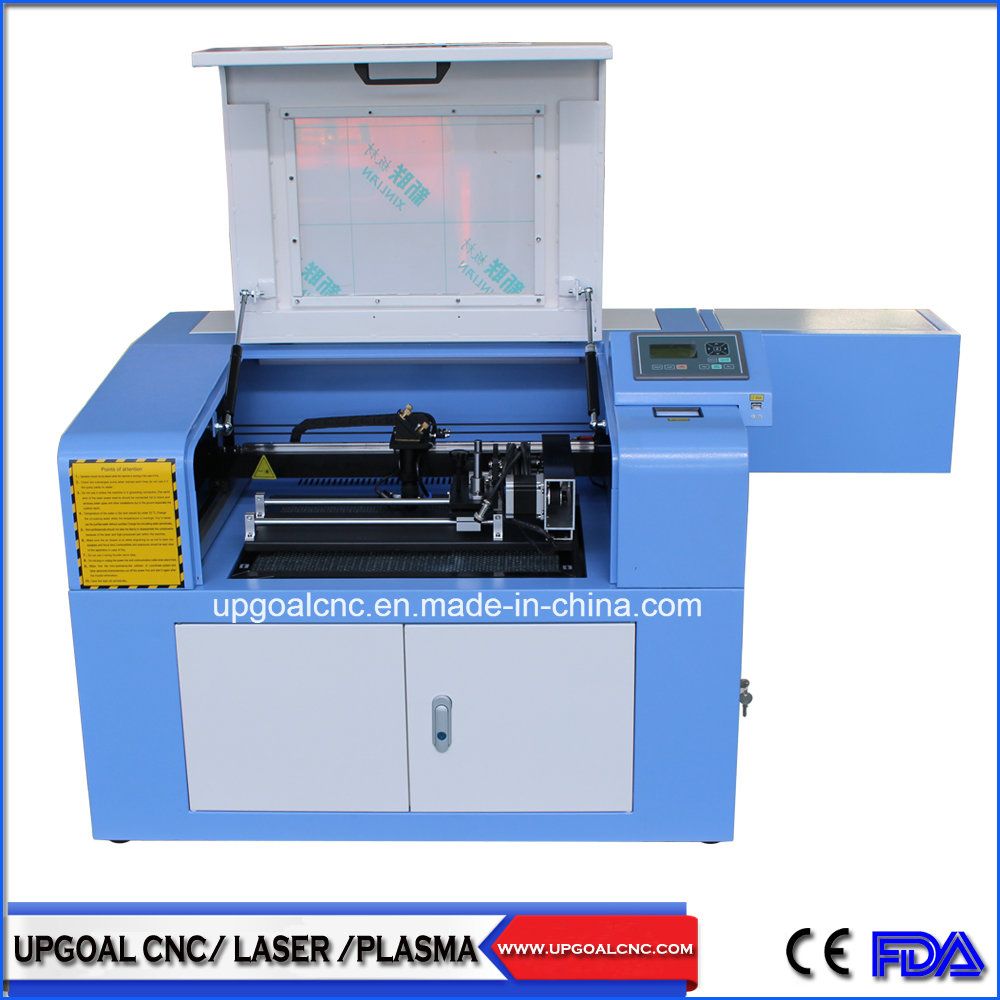

Desktop Laser Engraving Cutting Machine UG-5040L
APPLICATION FIELD
Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials
FEATURES
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Laser Tube
Adopted famous Reci W2 90W Co2 laser tube, more powerful, long time time(8000-10000 hours) and stable
Working Table
Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality
Auto Lifting Table:Maximum Loading 50kgs with 180mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Motion System
Imported High precision, low friction force and stand wear and linear guide rails and blocks with 3M belt ensured stable transmission, lower noise
Operation System
Advanced USB port RuiDa 6442 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.

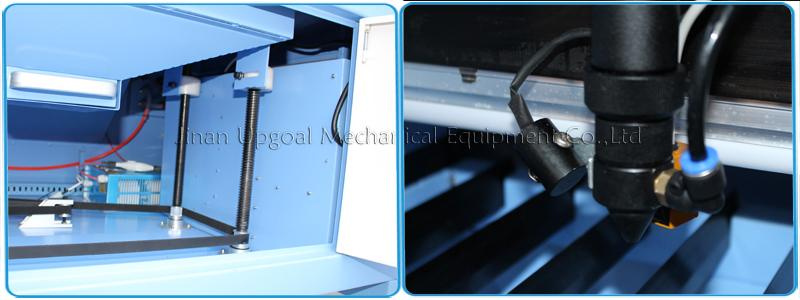

Co2 laser head with infrared positioning

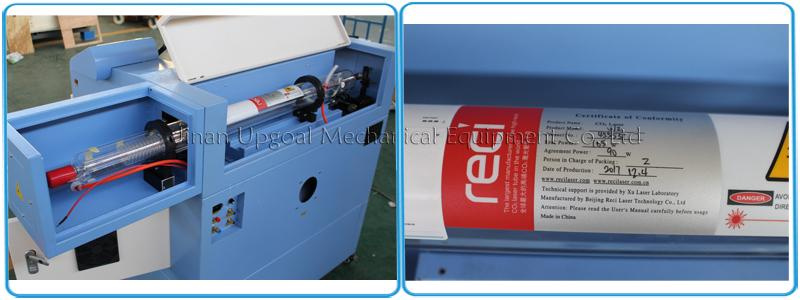

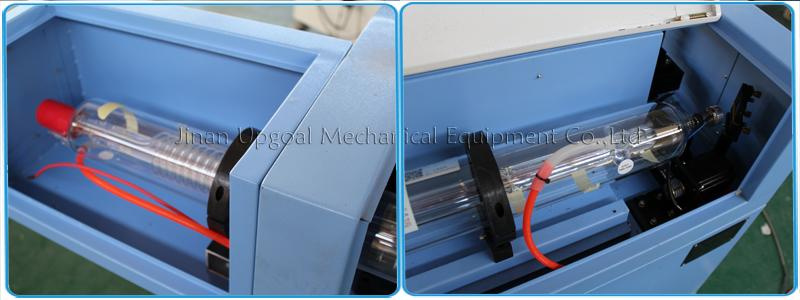

Reci W2 90W Co2 laser tube

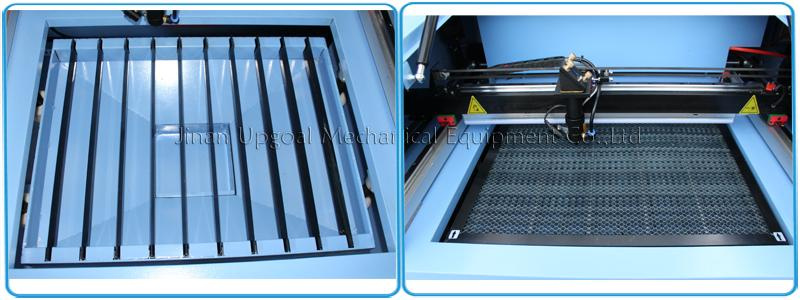

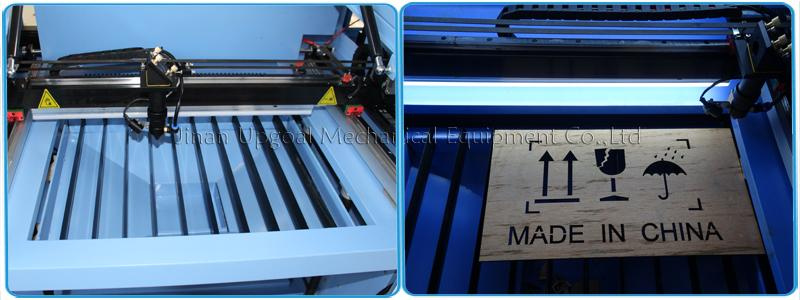

Double working table: honey comb and knife strip

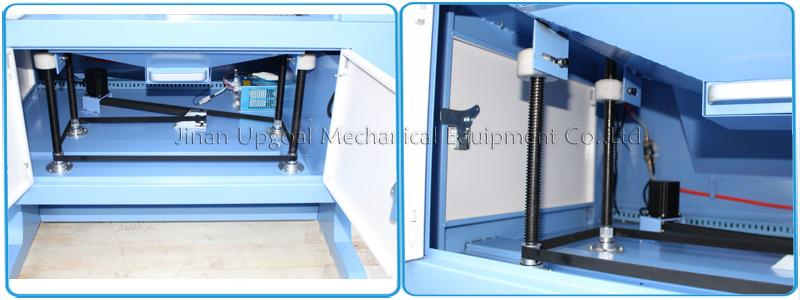

Auto lifting table & auto focusing switch
| Technical parameters | |
| Certificate | CE |
| Effective working area | 500*400mm |
| Laser Type | Co2 laser tube |
| Laser tube power | 90w Reci Laser Tube |
| Working table | Honey comb and knife strip, double working table |
| Auto lifting table | Up and down 18mm automatically |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt transmission |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | Leetro MPC6585 |
| Design software when delivery | LaserCut6.1 |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Water Pump |
| Water protection system | Yes |
| Biggest scanning accuracy | 2500DPI |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Voltage | AC 220V 50/60Hz, single phase |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
Reference Working Videos
https://www.youtube.com/watch?v=VW6r9TNq7kI
For more information, just feel free to contact us!
