| Price: | US $ 2400-3310/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | UG-5040L |
|---|---|
| Working Area: | 500*400mm |
| Laser Type: | CO2 Sealed-off Laser Tube |
| Rated Laser Power: | Reci W2 90W |
| Working Table: | Honey Comb and Knife Strip Double Working Table |
| Driver And Motor Type: | Yako Stepper Motor and Driver |
| Guide Rail: | Linear Square Guide Rail |
| Transmission Type: | Belt Transmission |
| Control System: | Ruida 6442s |
| Software: | Rdworks V8 |
| Auto Lifting Table: | up and Down 180mm |

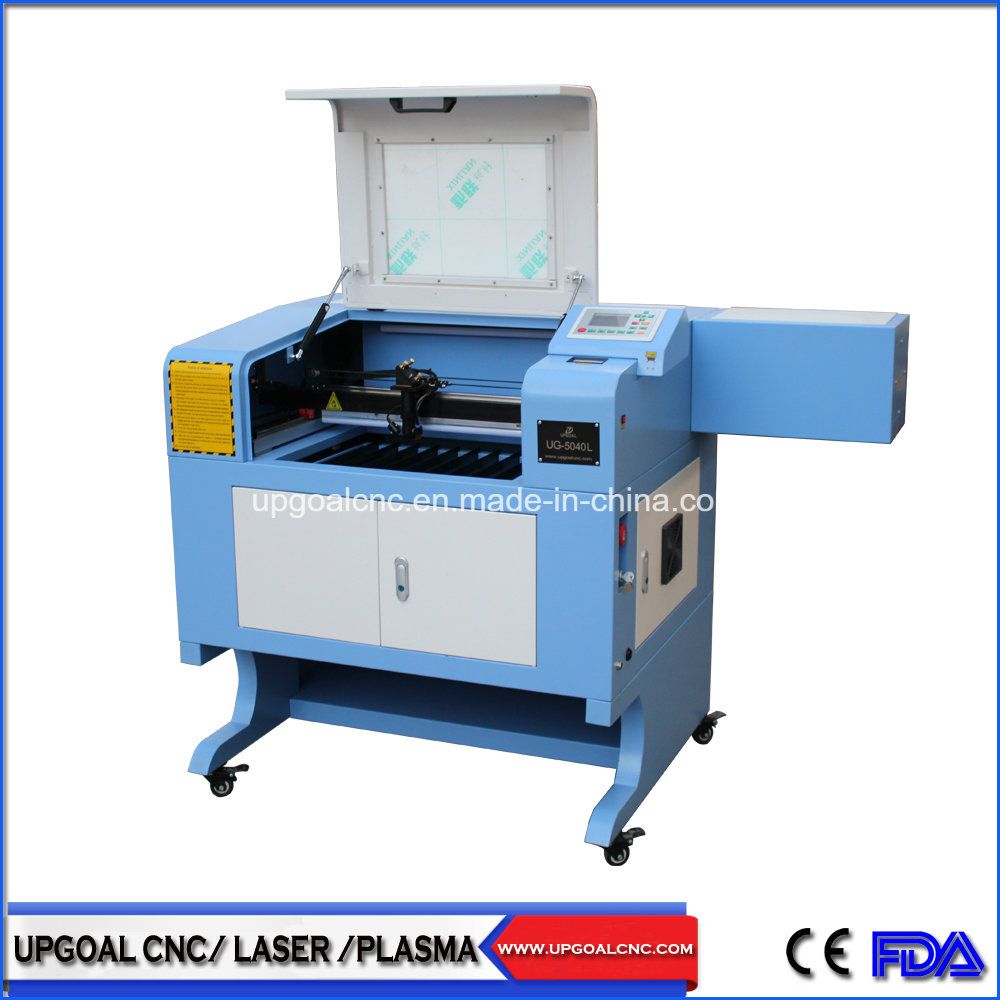

Small 90W 500*400mm Co2 Laser Cutting Machine with RuiDa Control System
Applications
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Features
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Laser Tube
Adopted famous Reci W2 900W Co2 laser tube, more powerful, long time time(8000-10000 hours) and stable
Working Table
Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality
Auto Lifting Table:Maximum Loading 50kgs with 180mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Motion System
Imported high precision, low friction force and stand wear and linear guide rails and blocks with 3M belt ensured stable transmission, lower noise
Operation System
Advanced USB port RuiDa 6442 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Technical Parameters
| Effective working area | 500*400mm |
| Laser Type | Co2 sealed-off laser tube |
| Laser tube power | 90W, Reci W2 |
| Working table | Honey comb and knife strip, double working table |
| Auto lifting table | Up and down 180mm automatically |
| Driver mode | Stepper motor and Driver, Yako brand |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt transmission |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | RuiDa 6442 |
| Control software | RDWorks V8 |
| Design software when delivery | CorelDraw |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Water pump cooling |
| Water protection system | Yes |
| Blow-off system | Air pump for the laser head Air blower for the machine |
| Biggest scanning accuracy | 2500DPI |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
| Voltage | AC 220V+10% 50/60Hz, single phase or AC 110V+10% 50/60Hz, single phase |
| Certificate | CE/FDA |
Parts Photos

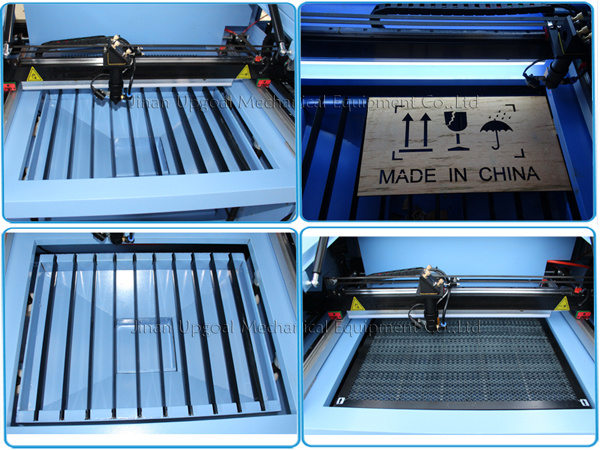

Co2 laser head/Double working table

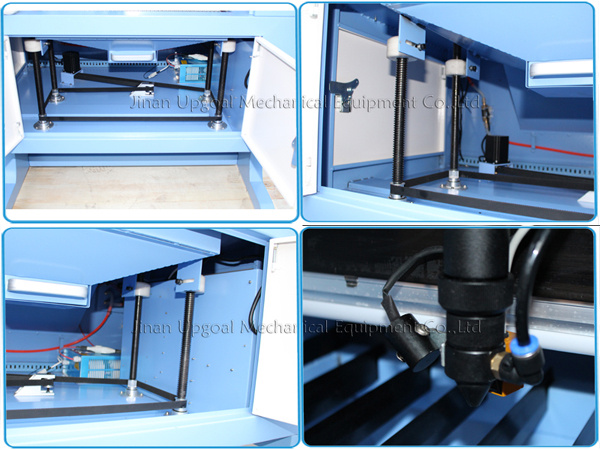

Auto lifting table

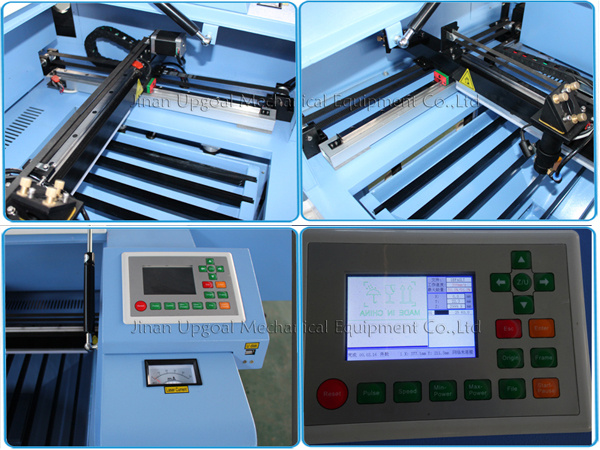

Linear square guide rail Hiwin Taiwan/RuiDa control panel

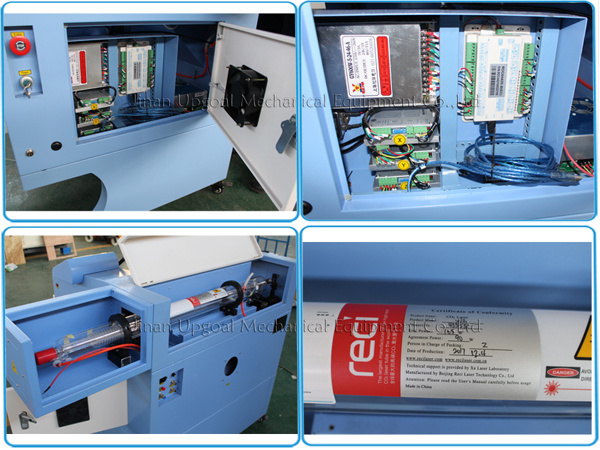

Control cabinet / Reci W2 90W Co2 laser tube

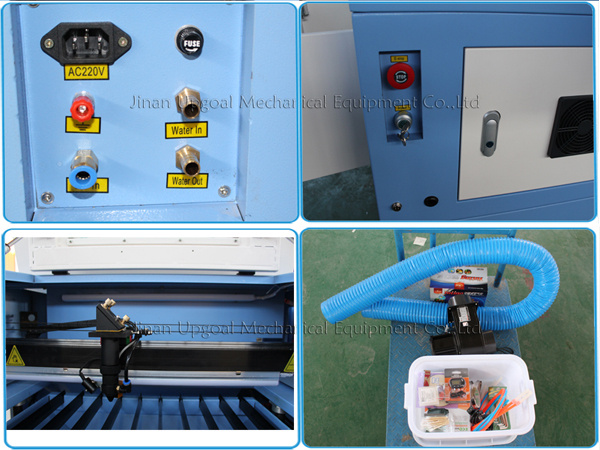

Power Socket/Switches/Dual LED/Accessories
Reference Working Videos
https://www.youtube.com/watch?v=VW6r9TNq7kI
Reference Sample Photos
For more information, just feel free to contact us!
