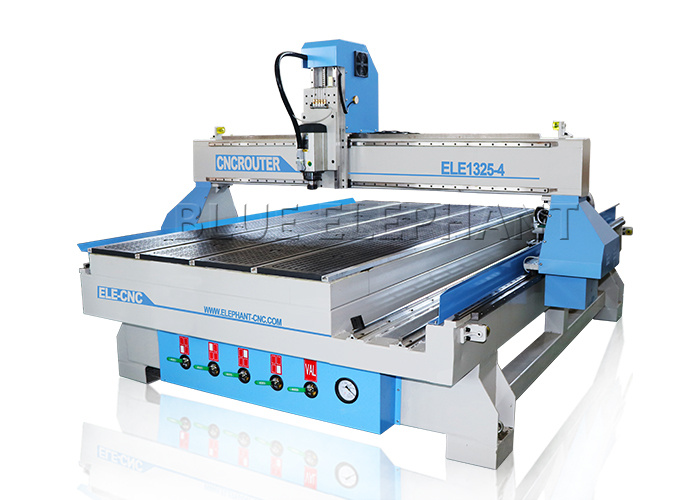

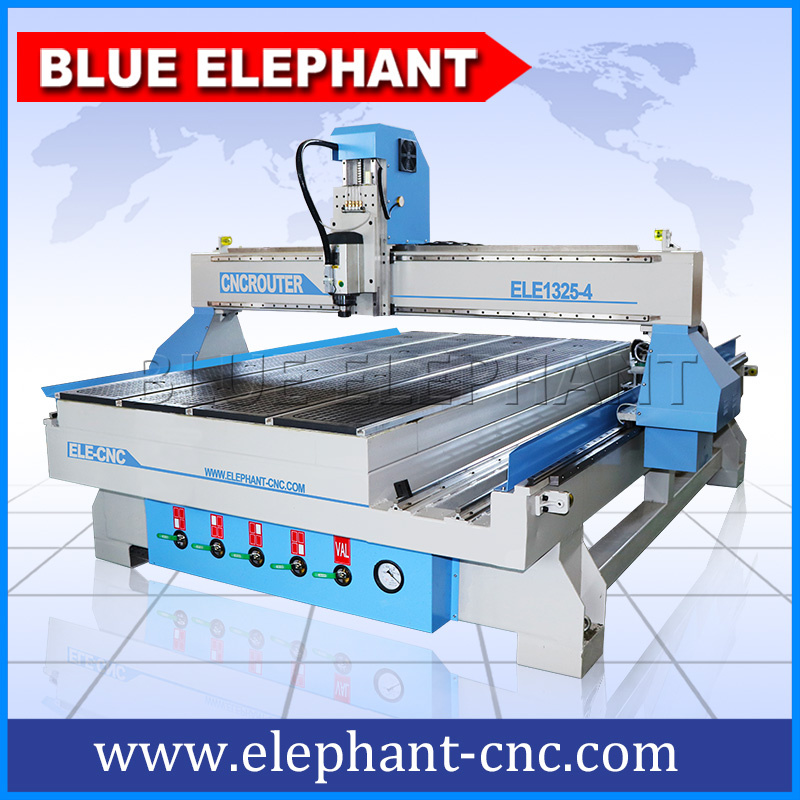

Simple Operation Smart 4 Axis MDF Cutting CNC Center Router Machine 1325 for Aluminum Windows
| Price: |
US $ 8500-10050/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE 1325-4 |
| Voltage: |
AC380V, 50Hz, 3pH (Option: 220V) |
| Control System: |
Mach3 4 Axis Control System |
| Spindle: |
Italy Hsd Air Cooling Spindle |
| Motor: |
Leadshine H2-2206 Hybrid Servo Motor |
| Driver: |
Leadshine H2-2206 Hybrid Servo Driver |
| Inverter: |
5.5kw Taiwan Delta Inverter |
| Table Surface: |
T-Slot and Vacuum Working Table |
| Working Area: |
1300*2500*200mm |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description
Simple Operation Smart 4 Axis MDF Cutting Cnc Center Router Machine 3 Axis 1325 for Aluminum Windows
Features of 4 axis cnc router 1325:- With chinese leadshine easy motor and driver, bigger power.
- 4.5kw Original Italy HSD air cooing spindle, The most famous brand, have after-sales service all over the world.
- 300mm rotary device on the side, for processing cylinders such as sofa legs, table legs etc.
Parameters of 4 axis cnc router 1325:| Description | Parameter |
| model | ELE1325-4 |
| Working area(X*Y*Z) | 1300*2500*200mm |
| Cutting accuracy | ±0.01/300mm |
| Repositioning Accuracy | ±0.01mm |
| Table Surface | Vacuum&T-slot Table |
| Frame | Welded Steel Square Tube Structure |
| X, Y Structure | Rack and Pinion Drive, Sweden ABBA #20 Rail Linear Bearings |
| Z Structure | Sweden ABBA #20 Rail Linear Bearings and Ball Screw |
| Spindle Power | 4.5kw HSD air cooling spindle |
| Spindle Speed | 0-18000 rpm |
| Rotary device | Diameter:300mm, Effective processing length: 2500mm |
| Inveter | 5.5kw Taiwan DELTA inverter |
| Drive Motors | Leadshine H2-2206 Hybrid Servo Motors and Drivers for all axis |
| Working Voltage | AC380V, 50Hz, 3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | Mach3 4axis control System |
| Control box | Place the computer's big control box |
| Collet | ER32 |
| Software Compatibility | ARTCAM Software |
| Lubrication system | Automatic lubrication system |
| Tool Sensor | Manual tool sensor calibration |
| Vacuum pump | 5.5kw water circulation vacuum pump |
PS:All the working area and specifications can be customized according to your requests.

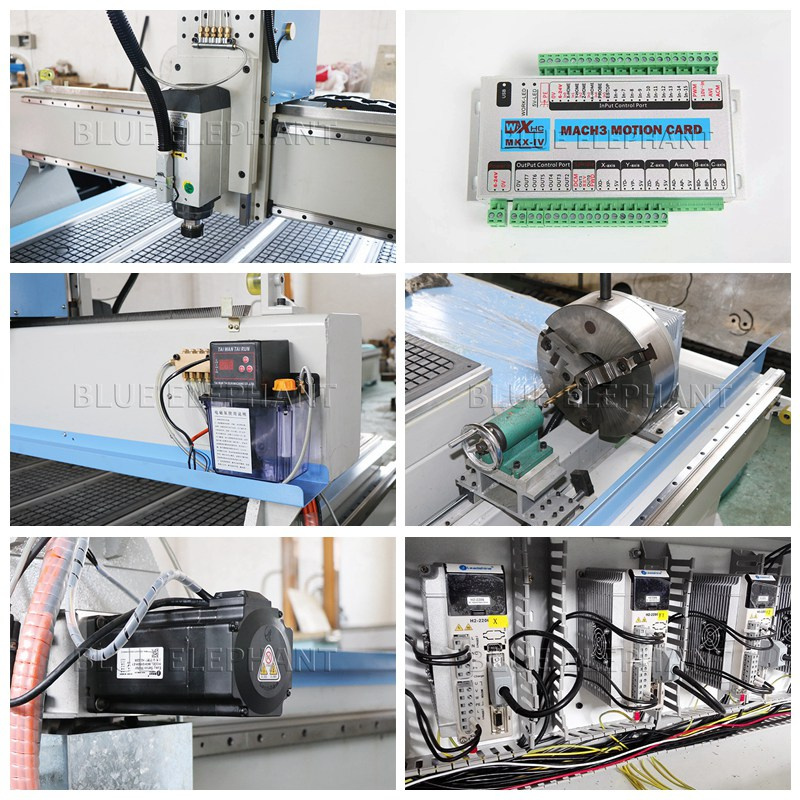

Product Details of 4 axis cnc router 1325:
Features of 4 axis cnc router 1325:- X, Y, Z working area ....1300 x 2500 x 200 mm
- Rotary axis diameter ....300 mm
- Rotary axis length ..... 2500 mm
- Spindle ..... 4.5 kW Italy HSD air cooling
- Inverter ..... 5.5 kW Taiwan Delta Inverter
- Spindle speed ..... 0 - 18000 RPM
- X, Y, Z traveling positioning accuracy ..... 0.02/300 mm
- Maximum rapid travel rate ..... 55000 mm/min
- Maximum working speed ..... 40000 mm/min
- Table Surface ...... Combined T-slot and vacuum working table
- Frame ...... 10m-12mm Heavy duty Body
- X, Y , Z rail ..... SKF ABBA Square Rail on X, Y axis
- X, Y, Z trasmission .... Helical rack on X, Y axis and High precision Taiwan TBI Ball Screw on Z axis
- Drive motors ..... Leadshine servo motors and drivers on all axis
- Lubrication ..... Automatic lubrication system
- Control system ..... March3 4 axis control system
- Command language and formats ..... G Code (*.uoo,*.mmg,*.plt)
- Interface .....USB
- Software compatibility ..... Artcam, Type3
- Working voltage ....380V, 3 phase, 50Hz
- Vacuum pump ..... Water circulation vacuum pump 5.5kW
Applications:- Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
- Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
- Relief sculpture and 3D engraving.
- Cylindrical object.
Samples of 4 axis cnc router 1325:

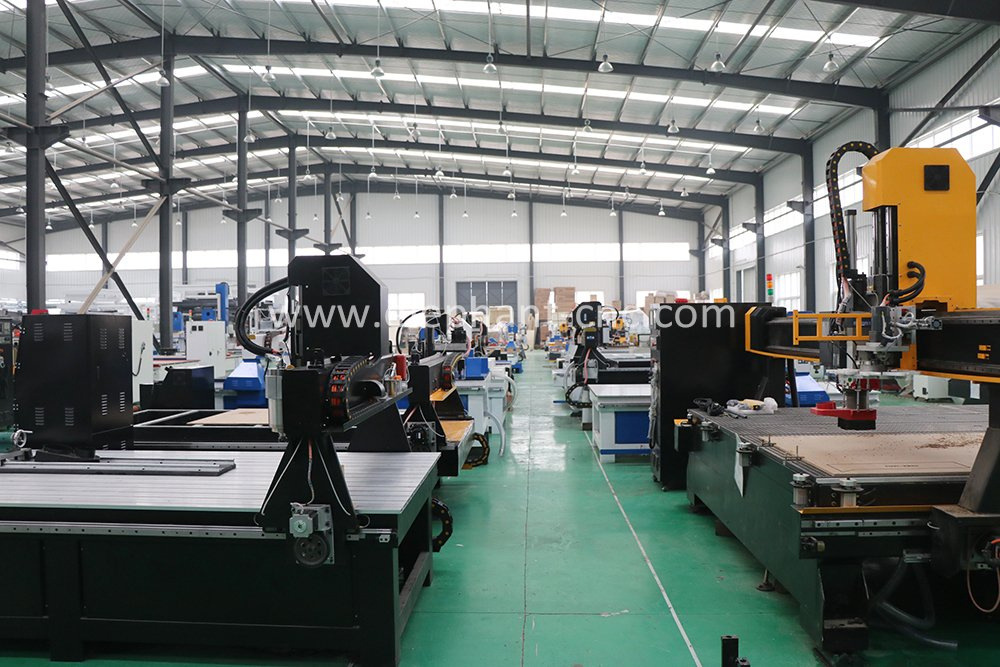

Welcome to our factory:
Looking forward for the agents from all over the world! Welcome to contact us!
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.
We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.
