Product Specifications
| Prod Model: |
D5~D300mm |
| Type: |
Concave Lens |
| Shape: |
Single-lens |
| Coating: |
Ar Bbar |
| Material: |
Si Ge Zns Znse Baf2 Mgf2 CaF2 |
Product Description

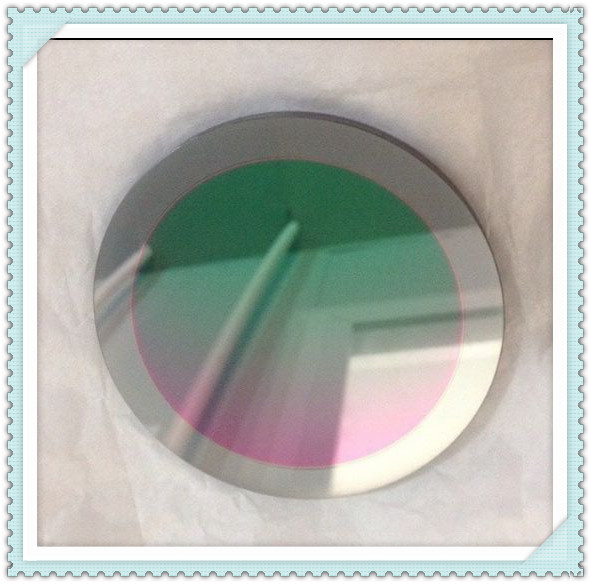

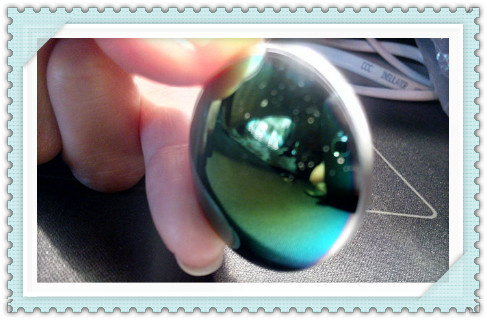

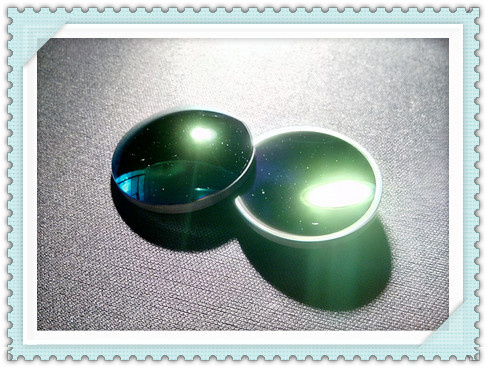

Si Lenses, Silicon Lens
Silicon is used as an optical window primarily in the 3 to 5 micron band and as a substrate for production of optical filters. It is frequently used for laser mirrors because of its high thermal conductivity and low density. Silicon is also useful as a transmitter in the 20 micron range. Large blocks with polished faces are also employed as targets in neutron physics experiments.Our IR thermal imaging lenses are transmissive optics, ideal for IR applications.
Product Name | Uncoated/ AR Coated Si Window |
Material | Silicon (Si) |
Surface Quality | 40-20 or better |
Surface Accuracy | λ/4 or better |
Diameter Tolerance | +0.0/-0.1mm or better or better |
Thickness Toleranc | ±0.1mm or better |
Focal Length Tolerance | ±1% or better |
Centration | <3' or better |
Clear Aperture | >90% or better |
Bevelling | <0.2×45° |
Coating | AR Coatings Designed for 3-12μm or 8-12μm |
Available materials include:
Germanium (Ge)
Zinc Selenide (ZnSe)
Zinc Sulfide (ZnS)ZnS
Zinc Sulfide MultiSpectral (ZnS MS)
Silicon (Si)
Calcium Flouride (CaF2)
amorphous material transmitting infrared radiation (AMTIR)
Geometries include:
spheres
aspheres
diffractives
freeforms lens arrays
Optical coatings include:
high efficiency BBAR (broad band anti-reflective)
high durability, medium efficiency BBAR
diamond-like coatings (DLC)
filters
Contact us
our certification
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.
Our Strengths
Ample, stable and cost-efficient supply of IR materials.
ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.
Consistent and high-performance manufacturing
During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.
The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.
Excellent quality and efficient service
From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.
Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.
Competitive Prices
ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.
Stable and reliable business partner
We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.
Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
