Circular Plano-Convex Cyl Lenses, Optical Lenses
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
D5~D300mm |
| Type: |
Convex Lens |
| Shape: |
Cylindrical Shaped Lens |
| Material: |
Uvfs K9 Bk7 |
| Coating: |
Ar Bbar |
Product Description

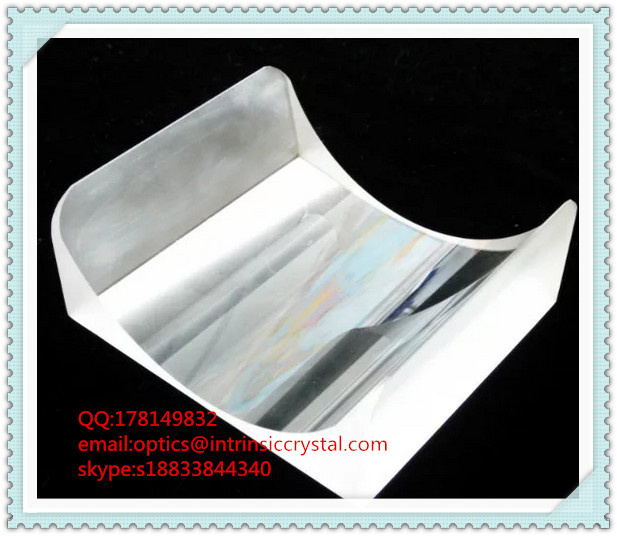

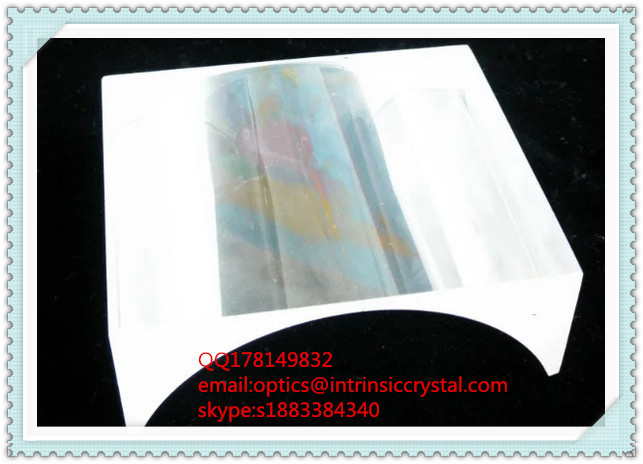

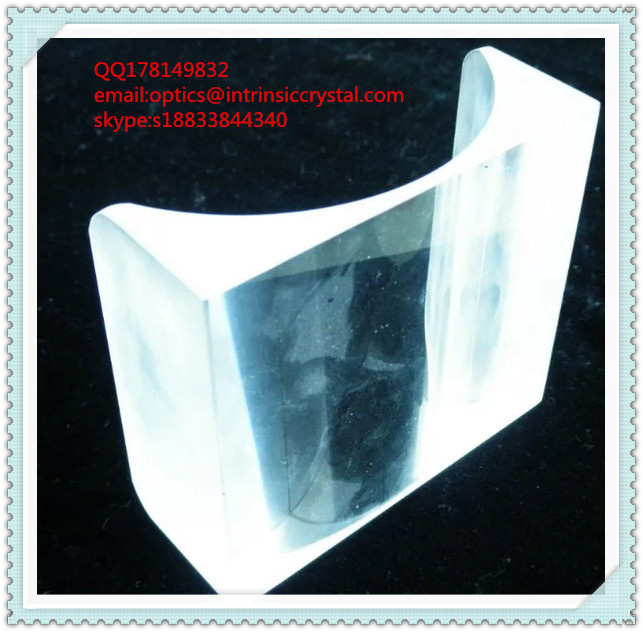

Circular Plano-Convex Cylindrical Lens
Specifications
| Parameter | Standard |
| Diameter Tolerance: | +0/-0.1 mm |
| Center Thickness Tolerance: | +/-0.1 mm |
| Focal Length Tolerance: | +/-1 % |
| Surface Figure at 632.8 nm(over 90% diameter): | λ / per 30 mm |
| Centration: | < 0.02 mm |
| Surface Quality: | 60- 40 |
| Clear Aperture: | > 85 % of dimensions |
| Coating: | custom |
Circular Plano-Convex Cylindrical Lens
| Focal Length | Diameter | Material | Center Thickness | Edge Thickness | Part No. |
| f (mm) | Φ(mm) | name | Tc (mm) | Te (mm) | Standard |
| 6.35 | 6.00 | BK7 | 3.30 | 1.35 | KCTSC 001 |
| 12.70 | 10.00 | BK7 | 5.90 | 3.59 | KCTSC 002 |
| 12.70 | 12.00 | BK7 | 5.90 | 2.00 | KCTSC 003 |
| 19.00 | 10.00 | BK7 | 4.33 | 2.96 | KCTSC 004 |
| 19.00 | 12.00 | BK7 | 4.33 | 2.28 | KCTSC 005 |
| 22.00 | 10.00 | BK7 | 10.00 | 8.84 | KCTSC 006 |
| 22.00 | 12.00 | BK7 | 10.00 | 8.29 | KCTSC 007 |
| 22.00 | 20.00 | BK7 | 10.00 | 4.04 | KCTSC 008 |
| 25.40 | 10.00 | BK7 | 3.64 | 2.65 | KCTSC 009 |
| 25.40 | 12.00 | BK7 | 3.64 | 2.19 | KCTSC 010 |
| 25.40 | 20.00 | BK7 | 11.31 | 6.69 | KCTSC 011 |
| 25.40 | 24.00 | BK7 | 11.31 | 3.50 | KCTSC 012 |
| 38.10 | 10.00 | BK7 | 4.05 | 3.40 | KCTSC 013 |
| 38.10 | 12.00 | BK7 | 4.05 | 3.11 | KCTSC 014 |
| 38.10 | 20.00 | BK7 | 7.64 | 4.91 | KCTSC 015 |
| 38.10 | 24.00 | BK7 | 7.64 | 3.56 | KCTSC 016 |
| 50.80 | 10.00 | BK7 | 3.78 | 3.30 | KCTSC 017 |
| 50.80 | 12.00 | BK7 | 3.78 | 3.09 | KCTSC 018 |
| 50.80 | 20.00 | BK7 | 5.28 | 3.30 | KCTSC 019 |
| 50.80 | 24.00 | BK7 | 5.28 | 2.38 | KCTSC 020 |
| 50.80 | 48.00 | BK7 | 21.61 | 6.00 | KCTSC 021 |
| 76.20 | 20.00 | BK7 | 5.10 | 3.81 | KCTSC 022 |
| 76.20 | 24.00 | BK7 | 5.10 | 3.23 | KCTSC 023 |
| 76.20 | 48.00 | BK7 | 12.29 | 4.13 | KCTSC 024 |
| 100.00 | 20.00 | BK7 | 4.53 | 3.55 | KCTSC 025 |
| 100.00 | 24.00 | BK7 | 4.53 | 3.12 | KCTSC 026 |
| 100.00 | 48.00 | BK7 | 9.45 | 3.54 | KCTSC 027 |
| 150.00 | 20.00 | BK7 | 4.01 | 3.36 | KCTSC 028 |
| 150.00 | 24.00 | BK7 | 4.01 | 3.08 | KCTSC 029 |
| 150.00 | 48.00 | BK7 | 7.14 | 3.33 | KCTSC 030 |
| 200.00 | 20.00 | BK7 | 3.76 | 3.28 | KCTSC 031 |
| 200.00 | 24.00 | BK7 | 3.76 | 3.06 | KCTSC 032 |
| 200.00 | 48.00 | BK7 | 6.07 | 3.25 | KCTSC 033 |
| 250.00 | 20.00 | BK7 | 3.61 | 3.22 | KCTSC 034 |
| 250.00 | 24.00 | BK7 | 3.61 | 3.05 | KCTSC 035 |
| 250.00 | 48.00 | BK7 | 5.44 | 3.19 | KCTSC 036 |
| 300.00 | 20.00 | BK7 | 3.50 | 3.18 | KCTSC 037 |
| 300.00 | 24.00 | BK7 | 3.50 | 3.03 | KCTSC 038 |
| 300.00 | 48.00 | BK7 | 5.03 | 3.16 | KCTSC 039 |
| 500.00 | 20.00 | BK7 | 3.30 | 3.11 | KCTSC 040 |
| 500.00 | 24.00 | BK7 | 3.30 | 3.02 | KCTSC 041 |
| 500.00 | 48.00 | BK7 | 4.21 | 3.09 | KCTSC 042 |
