Product Specifications
| Prod Model: |
D5~D300mm |
| Type: |
Convex Lens |
| Material: |
Optical Glass |
| Shape: |
Spherical Plano Convex Lenses |
| Coating: |
Ar Bbar |
Product Description

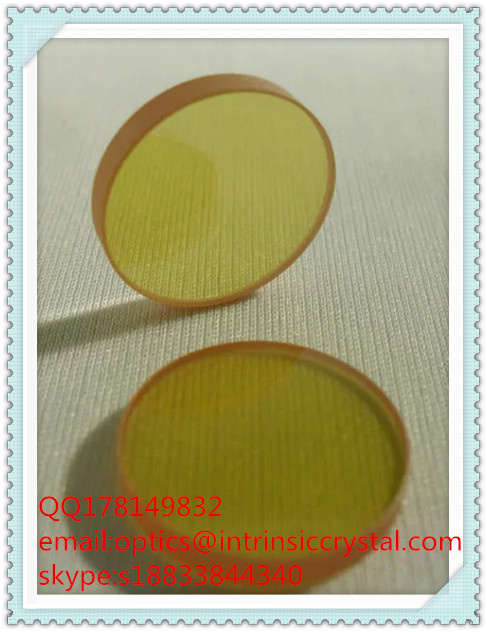

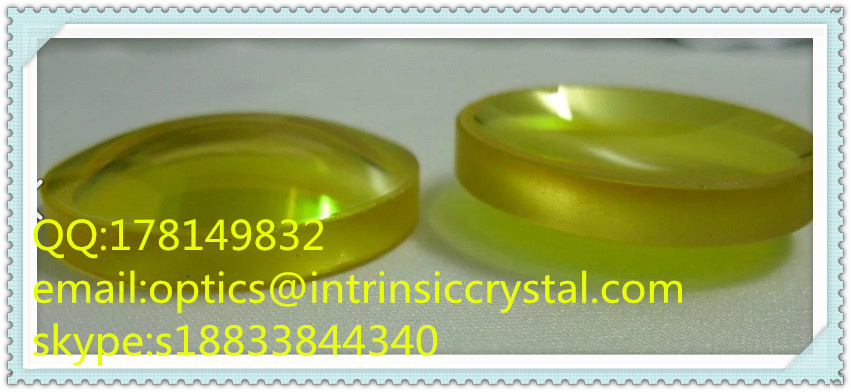

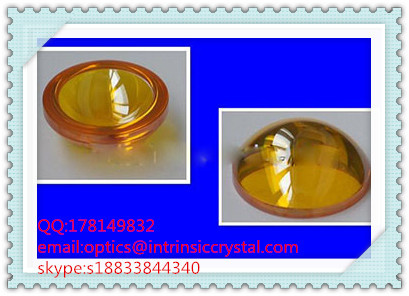

CO2 laser focusing lens is widely used in laser processing for , cutting, drilling, sculpture, engraving etc and laser systems. To meet the market's need, we explored the following two series products: Plan-convex and Plano-concave mirror and crescent lens.
ZnSe and ZnS are crucial materials for IR optics due to their transparency in a broad spectral region from 0.4 to 20 mkm. Since the moment of its foundation NN OPTIKA company has produced CVD ZnSe which is an ideal material for manufacturing optical components used in powerful industrial CO2 lasers. CVD ZnSe is also widely applied in thermal vision devices as well as in various IR maging systems, e.g. in medical instruments. As for ZnS, it is mainly used in IR spectrometers and some kinds of special equipment.
Specifiction of our CO2 lens as follow:
Technical parameters |
Wavelength | 10.6um |
Focal length tolerance | ±0.5% |
Diameter tolerance | +0.0/-0.02mm |
Thickness tolerance | ±0.05mm |
Surface accuracy | λ/4 |
Surface quality | 20-10 |
Centration | <1arcmin |
Clear aperture | >90% |
Bevelling | <0.2×45° |
Coating | A: AR Coating 350nm-650nm |
B: AR Coating 650nm-1050nm |
C: AR Coating 1050nm-1580nm |
The parameter for CO2 ZnS laser lenses
| Part No | diameter | focal length | shape |
| D20-1 | 20mm | 38.1mm | PX, PV, CV-CX |
| D20-2 | 20mm | 50.8mm | PX, PV, CV-CX |
| D20-3 | 20mm | 63.5mm | PX, PV, CV-CX |
| D20-4 | 20mm | 75mm | PX, PV, CV-CX |
| D20-5 | 20mm | 76.2mm | PX, PV, CV-CX |
| D20-6 | 20mm | 4' | PX, PV, CV-CX |
| D20-7 | 20mm | 5' | PX, PV, CV-CX |
| D20-8 | 20mm | 7.5' | PX, PV, CV-CX |
| Part No | diameter | focal length | shape |
| D25.4-1 | 25.4mm | 38.1mm | PX, PV, CV-CX |
| D25.4-2 | 25.4mm | 50.8mm | PX, PV, CV-CX |
| D25.4-3 | 25.4mm | 63.5mm | PX, PV, CV-CX |
| D25.4-4 | 25.4mm | 75mm | PX, PV, CV-CX |
| D25.4-5 | 25.4mm | 76.2mm | PX, PV, CV-CX |
| D25.4-6 | 25.4mm | 4' | PX, PV, CV-CX |
| D25.4-7 | 25.4mm | 5' | PX, PV, CV-CX |
| D25.4-8 | 25.4mm | 7.5' | PX, PV, CV-CX |
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.
Our Strengths
Ample, stable and cost-efficient supply of IR materials.
ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.
Consistent and high-performance manufacturing
During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.
The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.
Excellent quality and efficient service
From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.
Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.
Competitive Prices
ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.
Stable and reliable business partner
We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.
Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
