Product Specifications
| Prod Model: |
D5~D300mm |
| Type: |
Convex Lens |
| Material: |
Optical Glass |
| Shape: |
Spherical Plano Convex Lenses |
| Coating: |
Ar Bbar |
Product Description

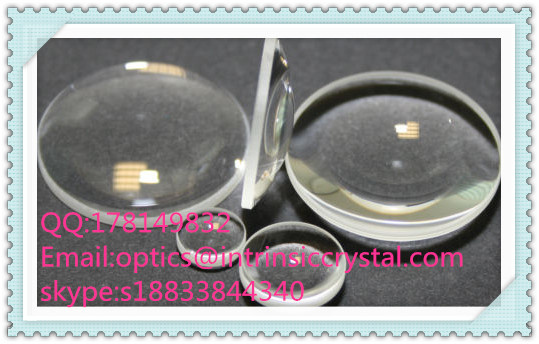

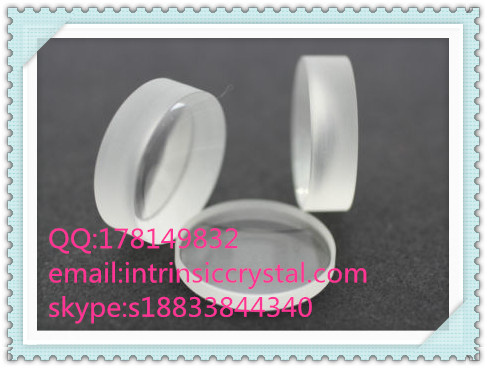

These simplest form lenses have flat surface on one side and spherical surface on the other. They are widely used in telescopes, microscopes, collimators, optical transceivers, magnifiers, condenser systems and eyepieces. Plano convex lens made of BK7, UV FS (UV grade Fused Silica), CaF2 (Calcium Fluoride) are available. Under customer's request lenses may be anti-reflection coated.
For required coating please refer to the COATINGSsection. We can supply custom cutting, edging, coating or complete fabrication if required.
Specifications:
Material .......................... Optical Grade CaF2 Single Crystal
Design Wavelength ................................................ 1.5μm
Design Index ........................................................ n=1.425
Surface Quality ................................ 80-50 scratch and dig
Paraxial Focal Length .............................................. ±2%
Diameter Tolerance ................................... +0.0, -0.15mm
Centration .................................................... 3 arc minutes
Clear Aperture ........................................................ >80%
Surface Irregularity...................... λ/4 per 25mm at 632.8nm
Part No. | Material | Diameter | R | Focal Length ( f ) | ET |
| | 3μ | |
| IC-PX-12.7-25 | CaF2 | 0.5" | 10.4mm | | 25mm | | 2mm |
| IC-PX-12.7-50 | CaF2 | 0.5" | 20.9mm | | 50mm | | 2mm |
| IC-PX-12.7-75 | CaF2 | 0.5" | 31.3mm | | 75mm | | 2mm |
| IC-PX-12.7-100 | CaF2 | 0.5" | 41.8mm | | 100mm | | 2mm |
| IC-PX-12.7-150 | CaF2 | 0.5" | 62.6mm | | 150mm | | 2mm |
| IC-PX-12.7-200 | CaF2 | 0.5" | 83.5mm | | 200mm | | 2mm |
| IC-PX-12.7-250 | CaF2 | 0.5" | 104.4mm | | 250mm | | 2mm |
| IC-PX-12.7-300 | CaF2 | 0.5" | 125.3mm | | 300mm | | 2mm |
| IC-PX-12.7-400 | CaF2 | 0.5" | 167.0mm | | 400mm | | 2mm |
| IC-PX-12.7-500 | CaF2 | 0.5" | 208.8mm | | 500mm | | 2mm |
| IC-PX-12.7-750 | CaF2 | 0.5" | 313.2mm | | 750mm | | 2mm |
| IC-PX-12.7-1000 | CaF2 | 0.5" | 417.5mm | | 1000mm | | 2mm |
| IC-PX-12.7-2000 | CaF2 | 0.5" | 835.1mm | | 2000mm | | 2mm |
| | | | | | | | |
| IC-PX-25.4-50 | CaF2 | 1.0" | 20.9mm | | 50mm | | 2mm |
| IC-PX-25.4-75 | CaF2 | 1.0" | 31.3mm | | 75mm | | 2mm |
| IC-PX-25.4-100 | CaF2 | 1.0" | 41.8mm | | 100mm | | 2mm |
| IC-PX-25.4-150 | CaF2 | 1.0" | 62.6mm | | 150mm | | 2mm |
| IC-PX-25.4-200 | CaF2 | 1.0" | 83.5mm | | 200mm | | 2mm |
| IC-PX-25.4-250 | CaF2 | 1.0" | 104.4mm | | 250mm | | 2mm |
| IC-PX-25.4-300 | CaF2 | 1.0" | 125.3mm | | 300mm | | 2mm |
| IC-PX-25.4-400 | CaF2 | 1.0" | 167.0mm | | 400mm | | 2mm |
| IC-PX-25.4-500 | CaF2 | 1.0" | 208.8mm | | 500mm | | 2mm |
| IC-PX-25.4-750 | CaF2 | 1.0" | 313.2mm | | 750mm | | 2mm |
| IC-PX-25.4-1000 | CaF2 | 1.0" | 417.5mm | | 1000mm | | 2mm |
| IC-PX-25.4-2000 | CaF2 | 1.0" | 835.1mm | | 2000mm | | 2mm |
 |
