| Price: | US $ 2400-3210/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | UG-1290L |
|---|---|
| Working Area: | 1200*900mm |
| Laser Type: | CO2 Sealed-off Laser Tube |
| Rated Laser Power: | Reci W2, 90W |
| Working Table: | Honey Comb and Knife Strip Double Working Table |
| Driver And Motor Type: | Yako Three Phases Stepper Motor and Driver |
| Guide Rail: | Linear Square Guide Rail |
| Auto Lifting Table: | up and Down300mm |
| Control System: | Leetro Mpc6585, Lasercut6.1 Software |
| Cooling: | Industrial Chiller Cw-5000 |
| Blow Off: | Air Pump and Air Blower(550W) |

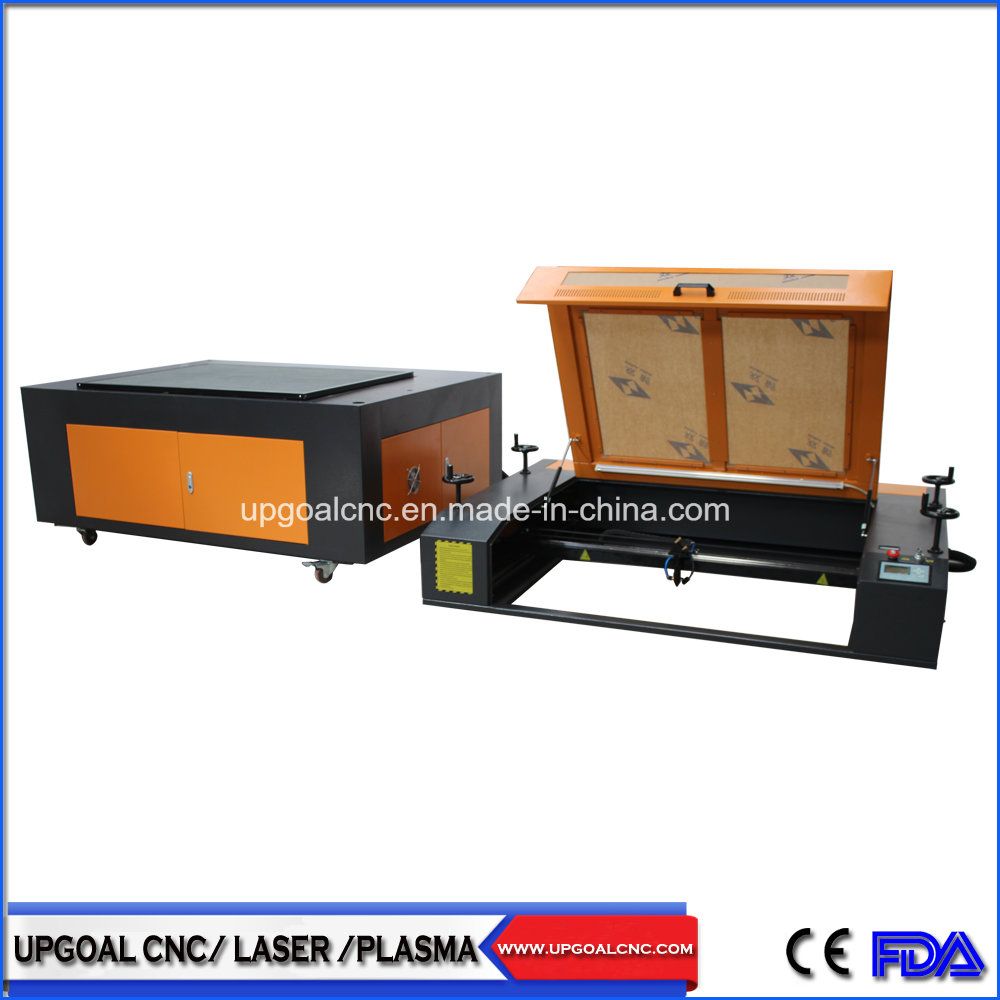

Separatable Stone Photo Co2 Laser Engraving Machine 1200*900mm
Features

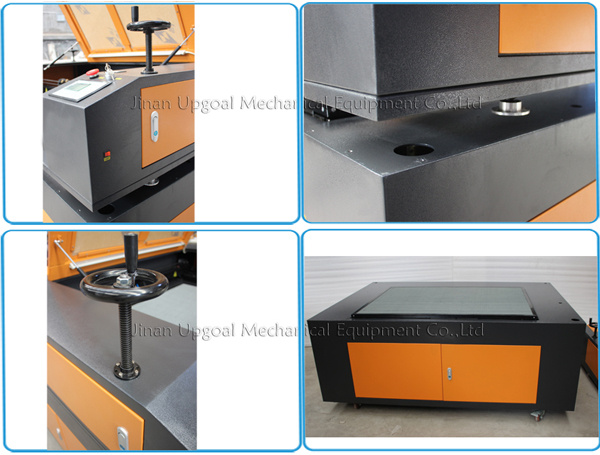

Separated Structure
Upper and lower separation design. The Upper parts can be taken down and set up onto the stone as solution for heavy stones while materials loading difficulties and platform load bearing is limited.
Manual Lifting Handle
Distance between the two parts can be adjusted which is Much more convenient for thicker materials processing
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

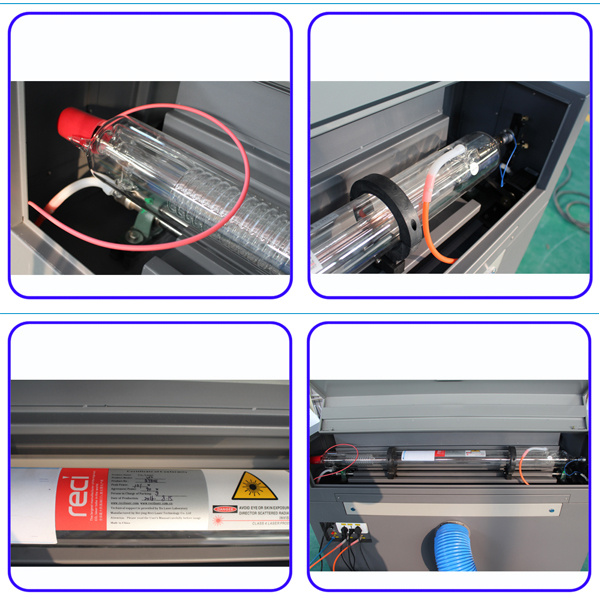

Laser Tube
Adopted high quality Reci W2 (rated power 90W, maximum power 100W) Co2 laser tube, long working time time and stable

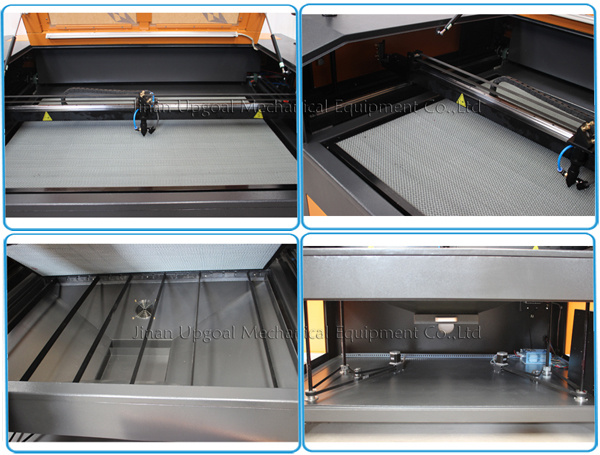

Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality
Auto Lifting Table Maximum Loading 50kgs with 300mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Motion System
Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

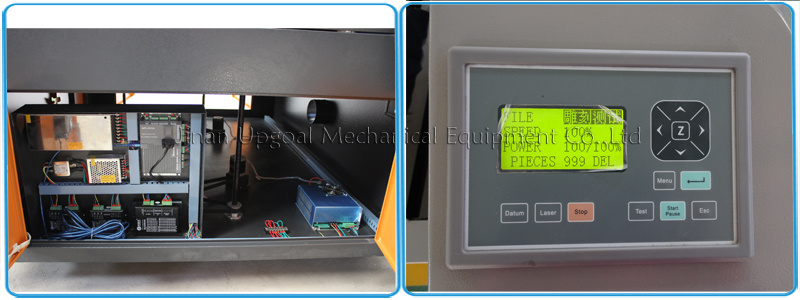

Operation System
Advanced USB port Leetro control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
With WIFI connection function, no need to use USB cable, convenient and improving working efficiency.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-5000, ensuring the laser tube long time continuous working.
Technical Parameters
Effective working area | 1200*900mm |
Laser Type | Co2 sealed-off laser tube |
Laser tube power | W2 series, Reci, Beijing (Rated power: 90W, max. Power: 100W) |
Working table | Honey comb |
Driver mode | 3 phases stepper motor and Driver, Yako brand |
Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
Transmission | Belt transmission |
Control panel | English |
Laser output control | 1-100% software setting |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-10000mm/min |
Control system | Leetro MPC6585 |
Control software | LaserCut 6.1 |
Design software when delivery | CorelDraw |
Control panel | DSP offline |
Resolution accuracy | < 0.01mm |
Location precision | < 0.01mm |
Highest scanning accuracy | 2500DPI |
Type of cooling | Industrial chiller, CW-5000 cooling |
Water protection system | Yes |
Blow-off system | Air pump for the laser head Air blower for the machine |
Biggest scanning accuracy | 2500DPI |
Working temperature | 0-45 °C |
Operating humidity | 5-95% (without condensed water) |
Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
Voltage | AC 220V±10% 50/60Hz, single phase or |
Certificate | CE/FDA |
Applications
Application industry: Marble engraving, Advertisement, Gift Package, Model.
Application Materials: Acrylic,crystal, marble, wood, paper, cloth, leather, rubber, glass, ceramic tile.
Reference Working Videos
https://www.youtube.com/watch?v=kdVv4MKhh_s&index=10&list=PLZ2SG5kTfvfOCXsQbxHpyInEaDg01cVvL
Reference Samples
For more information, just feel free to contact us!
