| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union |
| Prod Model: | CY-700-MSD |
|---|---|
| Type: | Plasma |
PVD magnetron sputtering coating machine
Introduction of magnetron sputtering coating machine
Vacuum magnetron sputtering coating machine is widely used in household appliances, clocks, lamps, crafts, toys, light reflector, phone
keypad outer covering and instrumentation, plastics, glass, ceramics, tiles and other decorative film and functional film. Our company's
magnetron sputtering machine has many advantages such as good control ability and repeatability for film thickness; strong adhesion
between substrate and film; making special material film and let different materials sputtering on products' surface at the same time, then
will make mixed film, compound film, TiN imitation gold film; high purity films etc..
Feature of magnetron sputtering coating machine
High ionization rate,high deposition speed and strong adhesion
Cleanness,pollution-free,instead of water platin
Advanced control system and easy to operate,deposited at various workplaces
Technical parameters of magnetron sputtering coating machine
| Model and Technical Parameters of Vacuum Multiple Arc Ion Coating Machine | ||||||||||
| Performance /Model | VAKIA-CAC-700 | VAKIA-CAC-900 | VAKIA-CAC-1000 | VAKIA-CAC-1250 | VAKIA-CAC-1400 | VAKIA-CAC-1600 | ||||
| Size of coating chamber | Ø700*H900mm | Ø900*H1100mm | Ø1000*H1200mm | Ø1250*H1350mm | Ø1400*H1600mm | Ø1600*H1800mm | ||||
| Power supply type | Arc power supply, filament power supply, pulse bias power supply | |||||||||
| Structure of vacuum chamber | Vertical front door structure, rear air exhaust system and double-layer water cooling chamber | |||||||||
| Material of vacuum chamber | High-quality stainless steel cavity | |||||||||
| Limit vacuum | 6.0*10-4Pa | |||||||||
| Extraction time (no load) | Pump the atmosphere to 8.0*10-3Pa ≤15 minutes | |||||||||
| Vacuum Acquisition system | Diffusion pump or molecular pump + Roots pump + Mechanical pump + Holding pump (the specific model can be configured according to customer requirements) | |||||||||
| Arc source | 4 units or 6 units | 6 units or 8 units | 8 units or 10 units | 10 units or 12 units | 14 units or 16 units | 16 units or 18 units | ||||
| Bias power supply | 10KW/ 1 unit | 20KW/ 1 unit | 20KW/ 1 unit | 30KW/ 1 unit | 40KW/ 1 unit | 50KW/ 1 unit | ||||
| Rotating mode of work piece turntable | Planetary revolution and auto-rotation, variable frequency speed regulation (controllable and adjustable) | |||||||||
| Work piece baking temperature | Controllable and adjustable from room temperature to 450°C (PID temperature control) | |||||||||
| Process gas | 3-path or 4-path process gas flow control and display system, selective automatic gassing system | |||||||||
| Cooling mode | Water circulation cooling mode, cooling water tower or industrial water cooler or deep cooling system. (Provided by customers) | |||||||||
| Control mode | Manual/automatic integration mode, touch screen operation, PLC or computer control | |||||||||
| Total power | 25KW | 30KW | 35KW | 45KW | 60KW | 75KW | ||||
| Alarm and protection | Alarm water shortage, over-current and over-voltage, open circuit and other abnormal conditions of pumps, targets and so on and execute relevant protective measures and electric interlock function | |||||||||
| Equipment area | W2m*L3m | W2.5m*L3.5m | W3m*L4m | W4m*L5m | W4.5m*L6m | W5m*L7m | ||||
| Other technical parameters | Water Pressure ≥0.2MPa, Water Temperature ≤25°C, Air Pressure 0.5-0.8MPa | |||||||||
| Remarks | The specific configuration of coating equipment can be designed according to process requirements of coating products | |||||||||

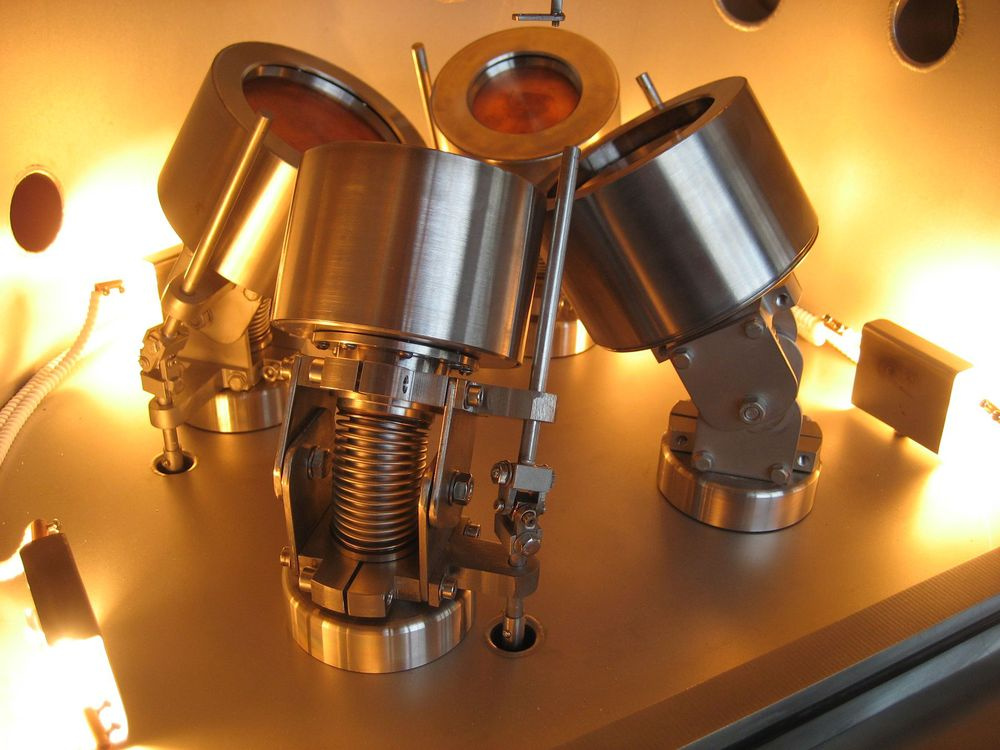

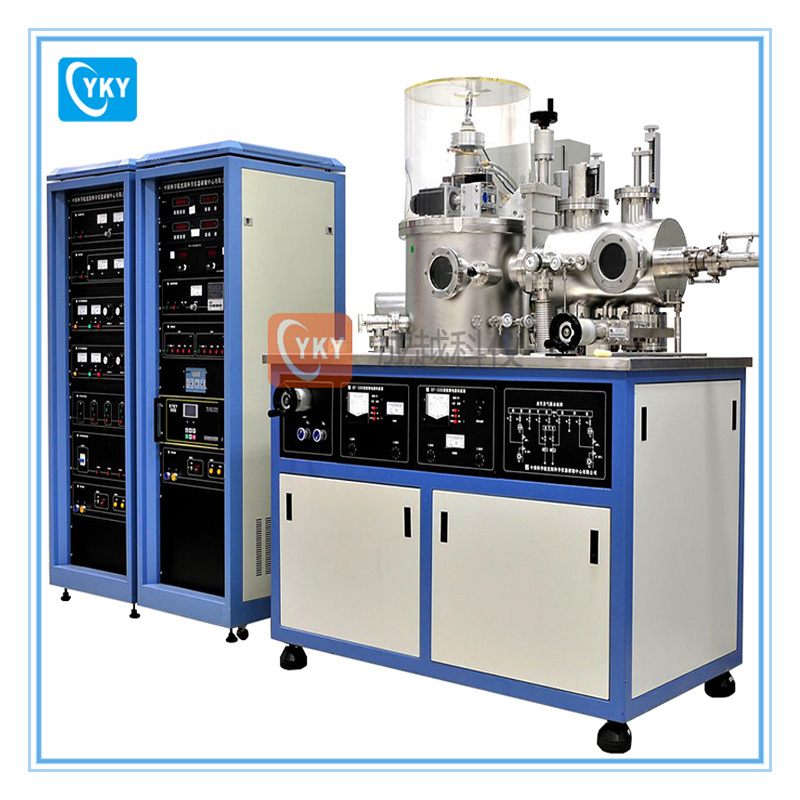

Pictures of products:
Company Information
Zhengzhou CY Scientific Instrument Co.,Ltd locate in hi-tech zone, Zhengzhou city.It is a high-tech companies that engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches.Mainly focus on Our main products include:microwave sintering furnace, dental porcelain furnace, tube furnace,muffle furnace,,zirconia sintering furnace,Phosphor powder sintering furnace,crystal sintering furnace, battery material sintering furnace, CVD system, relative accessories and etc. determined to do advanced materials preparation equipment manufacturers and suppliers of leader.
We sincerely welcome you come to visit us. Your comments and suggestions will be great honor for us.
FAQ
1. Are you a manufacturer or trade company ?
Yes,you can assured that we are a producer with full experience doing business
in domestic and oversea.
2. We are not professional for operation and installation of your machine?
While it is not a stumbling block,our machine is easy to operate,no need to professional
training,and the instruction manual and vedio sent to you are enough.What's more,we
have professional engineers and they can solve all questions.
3. How about packaging ?.......if machine damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,plywood
carton or as your requirement.Damage haven't happened before,if happen,we will
arrange replacement.
4. We haven't do business before,how can I trust your company and machine ?
We have been GOLD supplier for three years with no complaints on Alibaba.and our
machine have exported to Eath Asia,South Asia,the middle East Asia,Africa etc. areas
and have a good feedback.

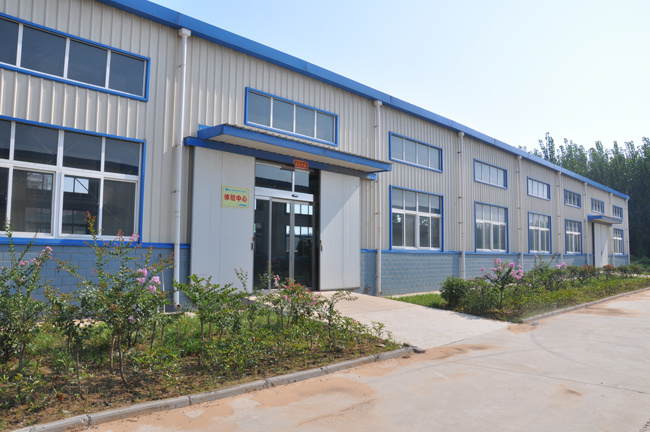

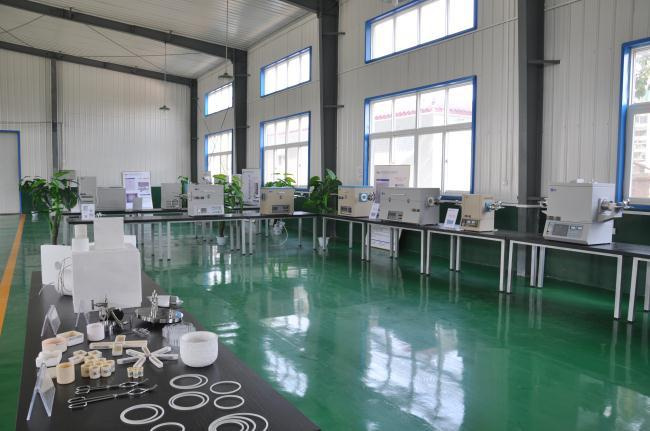

Our Factory
