Compact Atmospheric Plasma Cleaning Unit Machine for Surface Treatment
| Price: |
US $ 6700/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Product Specifications
| Prod Model: |
CY1100X-PJF-LD |
| Output Frequency: |
20-23 kHz |
| Gas Pressure: |
40 Psi Min. |
| Plasma Working Pressure: |
7- 10 Psi |
| Name: |
Plasma Cleaning Unit |
| Warranty: |
One Year |
| Type: |
Clean |
Product Description
Atmospheric Plasma Jet-Flow system ( Plasma Pen) for surface Treatment - CY1100X-PJF-LD
Introduction of plasma cleaning unitCY1100X-PJF is a compact Atmospheric Plasma Jet-Flow ( so called Plasma Beam , Plasma Pen)
system for surface Treatment, which consist of RF generator, flexible gas delivery pipe and plasma
beam head. The plasma jet flow can activate and clean material surface rapidly at low temperature
without vacuum, such as single crystal wafer, optical component, plastics etc. It is excellent tool for
cleaning wafer surface before epitaxial or optical fiber before welding to obtain higher quality. This
device also may be used for studying Atmospheric pressure CVD. Technical parameter of plasma cleaning unit | Input Power | Standard AC 208V - 240V, 50/60 Hz, < 1000W
AC110V power is available with an additional 1000W transformer |
| Output Frequency | 20-23 kHz |

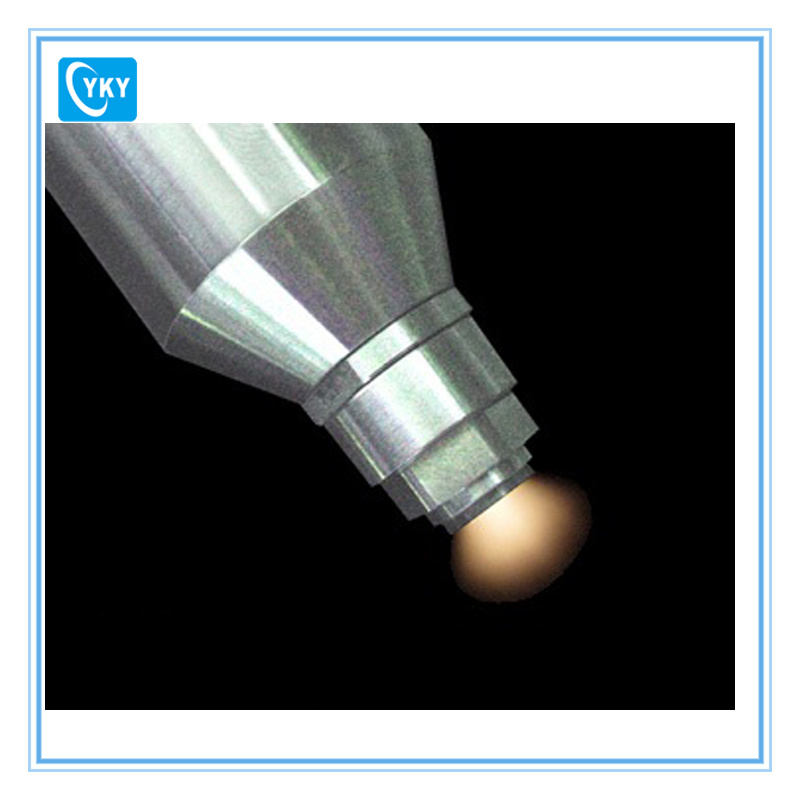

Plasma Beam head
| Two plasma Beam heads are included
round head:10-12mm
Rectangular head:15-18mm |
Features
| High speed surface treatment with simple and safe operation
Neither vacuum nor chamber required with versatile plasma chemistry
Handheld or in-line processing at low cost
light weight and compact size |
| Input Gas Pressure and Working Gases | 40 PSI min.
Air, N2, Ar, He or any mixed gas ( no flammable and explosive gases) |
| Plasma working Pressure | 7- 10 PSI |
| Working Environment | Temperature: < 42°C
Humidity: : ≤ 40ºCRH
No flammable gas |
| Overall Dimensions | 380 (W) ×210 (H) ×500 (D) mm |
| Net Weight | 10 kg |
| Warranty & Certificate | One year limited with lifetime support
CE certified |

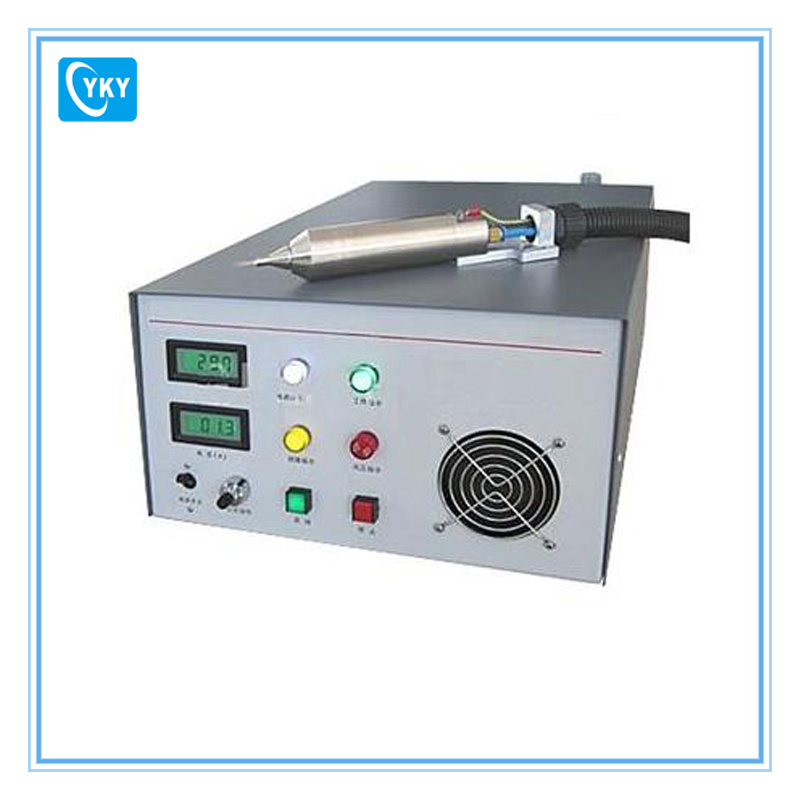

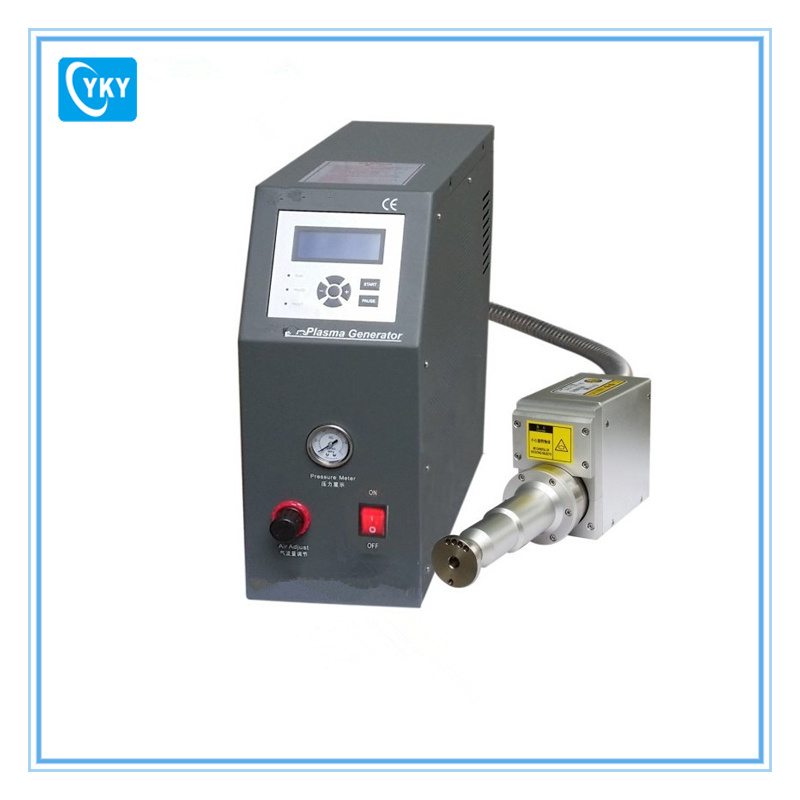

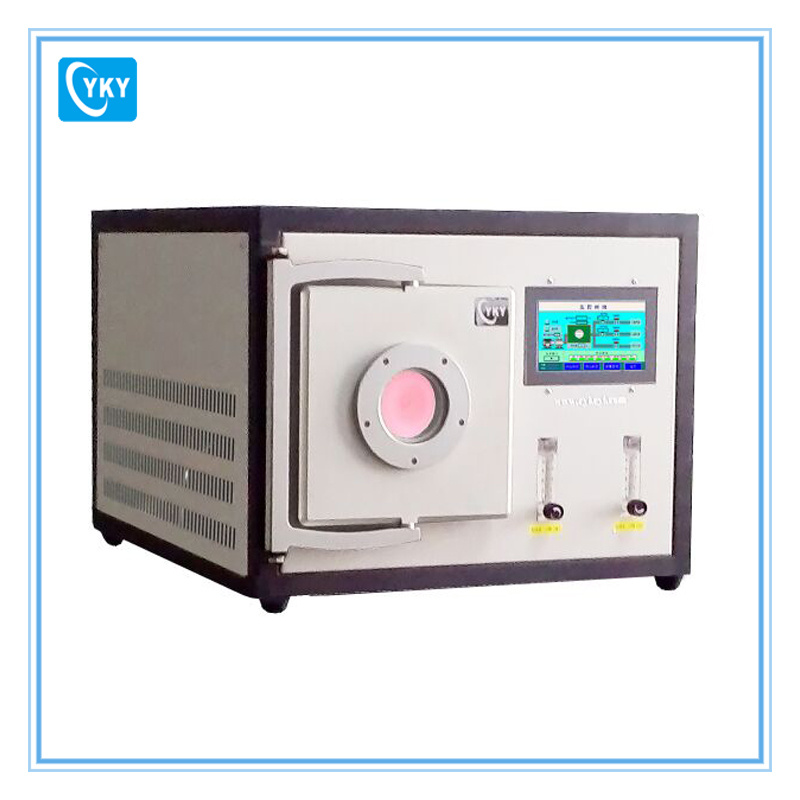

More photos of plasma cleaning unit
