1700c High Temperature Sapphire Crystal Slice Annealing Furnace
| Price: |
US $ 3400/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
CY-M1700 |
| Chamber Size: |
Customized |
| Temperature Accuracy: |
+/-1c |
| Display: |
LCD |
| Thermocouple: |
B Type |
Product Description

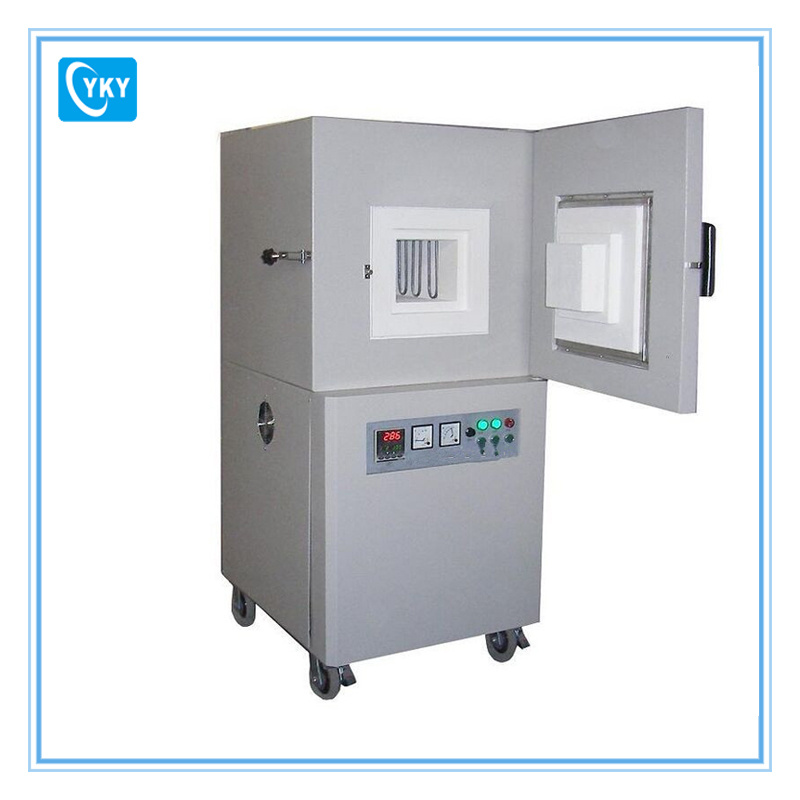

High Temperature Sapphire Annealing Furnace
Brief Introduction The 1700ºC muffle furnace is heated by MoSi2 rods with the Max. heating temperature 1700C. It is widely used in heat treament process like gem stone heating processing , denture processing industry, scientific research institutes, as well as high temperature sintering of power metallurgy industry, annealing, zirconia sintering, ect Specification| Model | CY-M1700 |
| Chamber model | Side Door |
| Display | LED |
| Limiting temperature | 1700ºC |
| Working temperature | ≤1650ºC |
| Heating rate | Suggestion 0~20ºC/min |
| Temperature accuracy | ±1ºC |
| Inside chamber size | 120×120×130(mm) |
| Heating element | MoSi2 |
| Thermal couple | B Type |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Chamber material | Alumina Fiber |
| Rated power | 1.8KW |
| Working voltage | AC 110-480V 50-60Hz |
| Warranty | 12 month (exclusive wearing part) |
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and customized
lab equipment.Welcome you come to visit us.
Zhengzhou CY Scientific Instrument Co., Ltd. Materials Science and Technology Co., Ltd. is a high and new technology enterprise registered in Zhengzhou city of Henan province, mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet. On the basis of sticking to independent innovation, the company absorbs extensively the advanced technology of excellent products at home and abroad. Meanwhile, the company studies, develops and manufactures various kinds of heating equipment and experimental instrument with consideration of our comprehensive national conditions. The company has solid technical force and forms a thorough research and development system by cooperating closely with a number of research institutes.
