Atmospheric Plasma Jet-Flow System (Plasma Pen) for Surface Treatment
| Price: |
US $ 2500-2600/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
CY1100X-PJF-LD |
| Output Frequency: |
20-23kHz |
| Working Pressure: |
7-10psi |
| Temperature: |
<42c |
| Humidity: |
<40crh |
| Warranty: |
One Year |
| Type: |
Cleaning |
Product Description
Atmospheric Plasma Jet-Flow system ( Plasma Pen) for surface Treatment - CY1100X-PJF-LD
Introduction

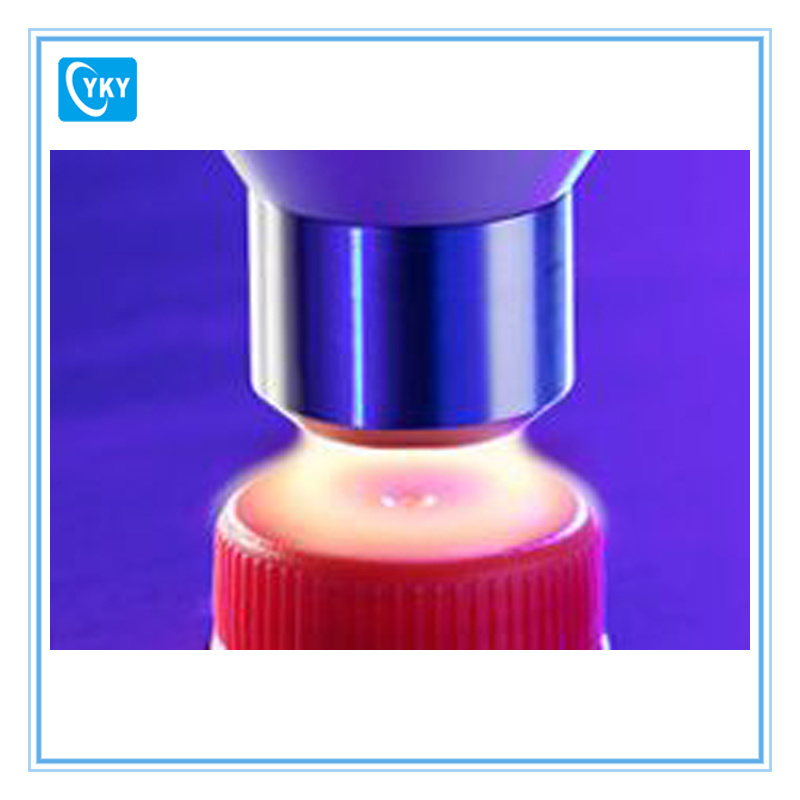

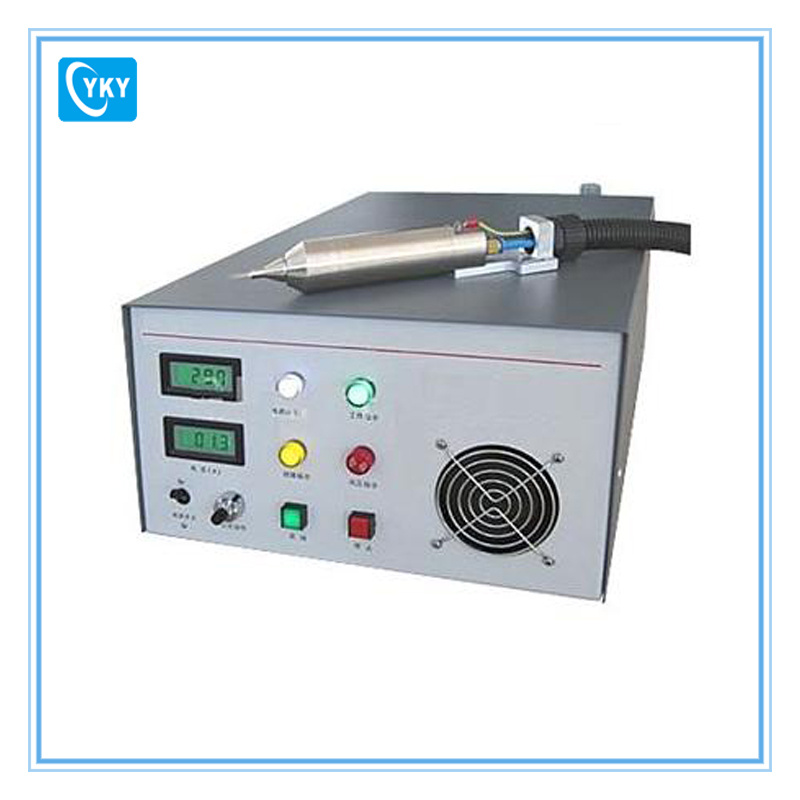

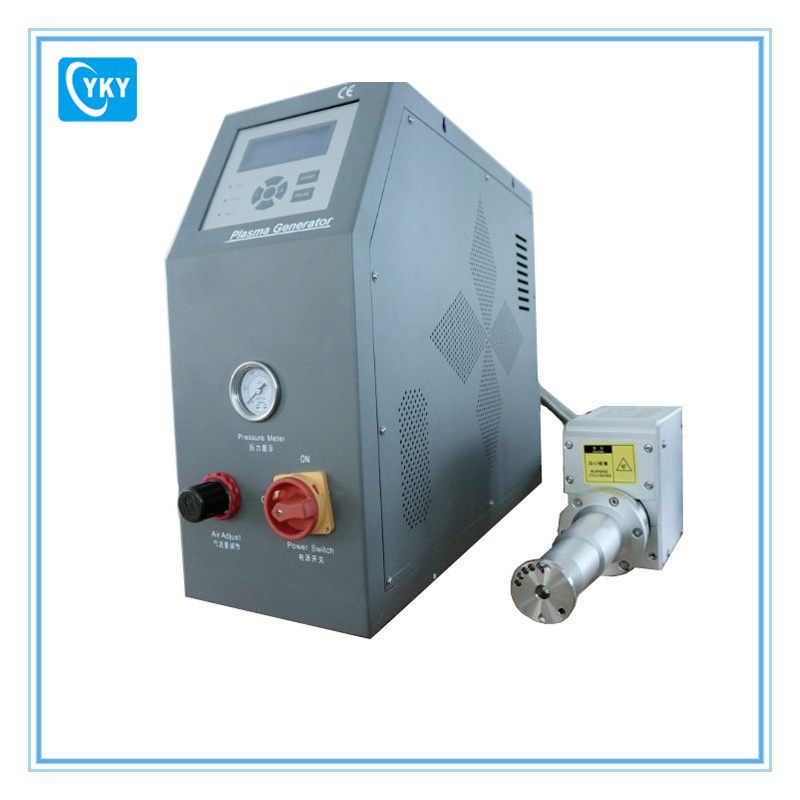

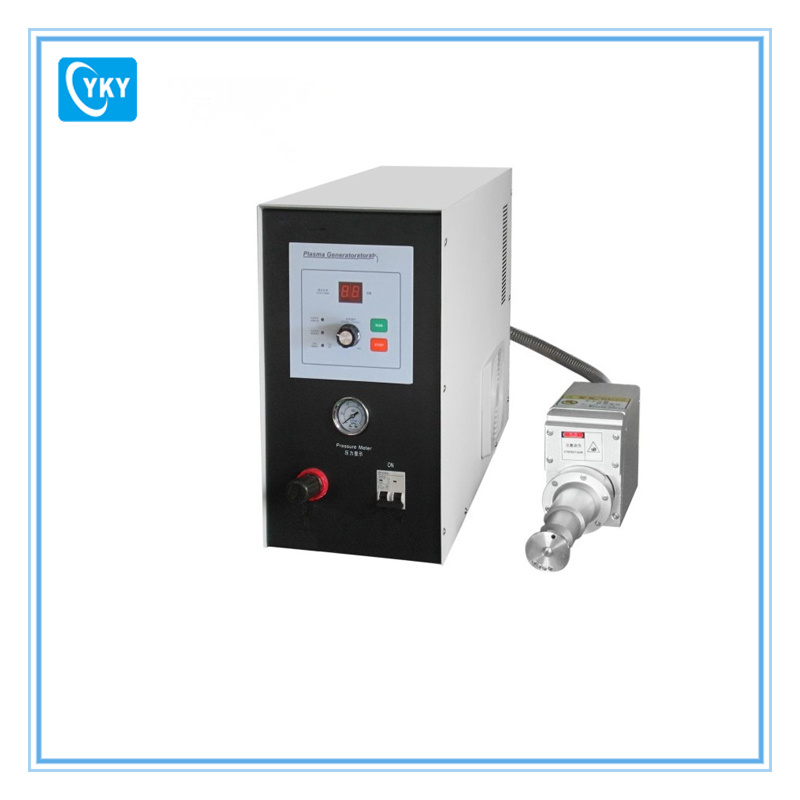

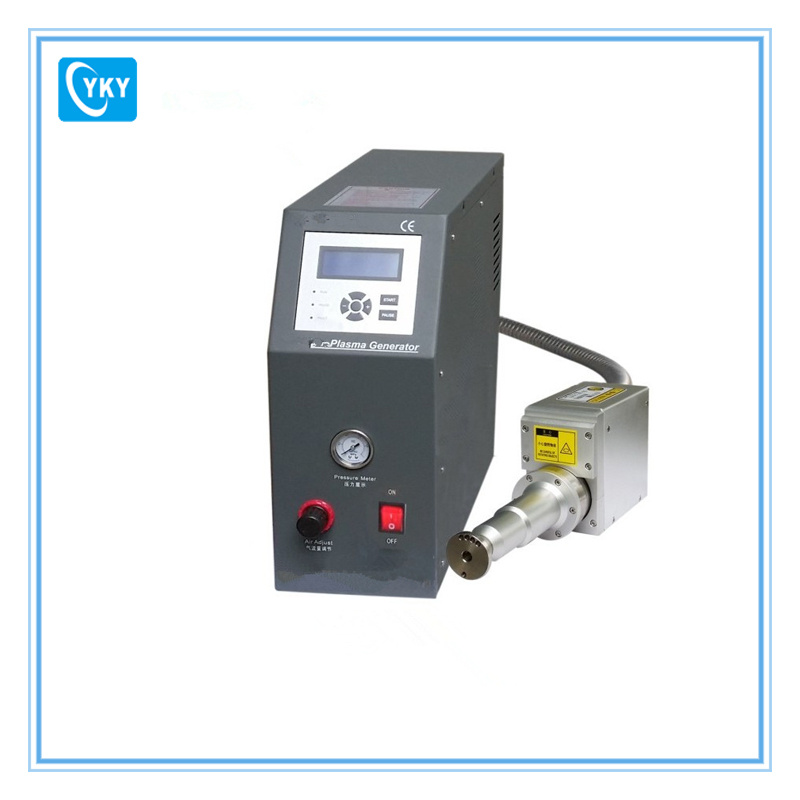

CY1100X-PJF is a compact Atmospheric Plasma Jet-Flow ( so called Plasma Beam , Plasma Pen) system
for surface Treatment, which consist of RF generator, flexible gas delivery pipe and plasma beam head. The
plasma jet flow can activate and clean material surface rapidly at low temperature without vacuum, such as
single crystal wafer, optical component, plastics etc. It is excellent tool for cleaning wafer surface before epitaxial
or optical fiber before welding to obtain higher quality. This device also may be used for studying Atmospheric pressure CVD.
Specification| Input Power | Standard AC 208V - 240V, 50/60 Hz, < 1000W
AC110V power is available with an additional 1000W transformer |
| Output Frequency | 20-23 kHz |
Plasma Beam head
| Two plasma Beam heads are included
round head:10-12mm
Rectangular head:15-18mm |
Features
| High speed surface treatment with simple and safe operation
Neither vacuum nor chamber required with versatile plasma chemistry
Handheld or in-line processing at low cost
light weight and compact size |
| Input Gas Pressure and Working Gases | 40 PSI min.
Air, N2, Ar, He or any mixed gas ( no flammable and explosive gases) |
| Plasma working Pressure | 7- 10 PSI |
| Working Environment | Temperature: < 42°C
Humidity: : ≤ 40ºCRH
No flammable gas |
| Overall Dimensions | 380 (W) ×210 (H) ×500 (D) mm |
| Net Weight | 10 kg |
| Warranty & Certificate | One year limited with lifetime support
CE certified |

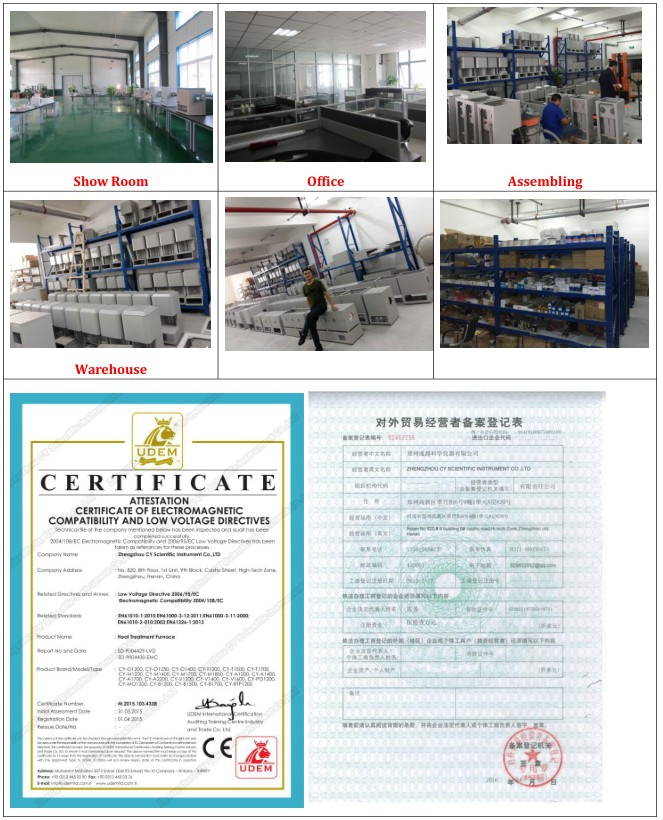

Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and customized lab equipment.Welcome you come to visit us.
