Product Specifications
| Prod Model: |
HCCA-1618, HCCA-1215 |
| Product Name: |
Bathroom Tile Gold Plating Machine |
| Structure: |
Vertical, Single Door |
| Operating System: |
PLC Touching Screen |
| Service: |
Installation Training, After Sales |
| Coating Film: |
Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc. |
| Coating Color: |
Gold, Rosegold, Silver, Black, Blue, Ect |
| Coating Material: |
Stainless Steel, Metal Alloy, Ceramic, Glass |
| Chamber Size: |
Customized |
| Control Mode: |
Automatic PLC Touch Screen Control |
| Brand: |
Hcvac, Dongguan, China |
| Type: |
Coating Production Line |
| Coating: |
Vacuum Coating |
| Substrate: |
Glass, Metal, Ceramic, Alloy, Crystal, Mosaic |
Product Description

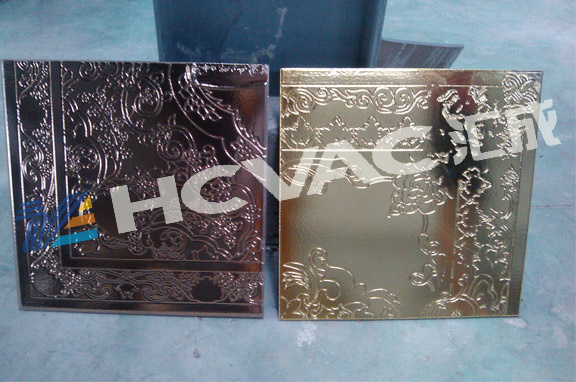

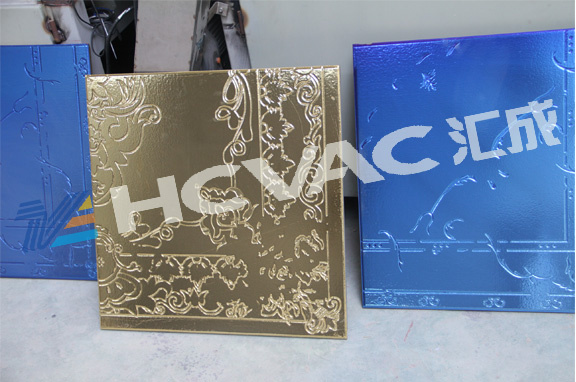

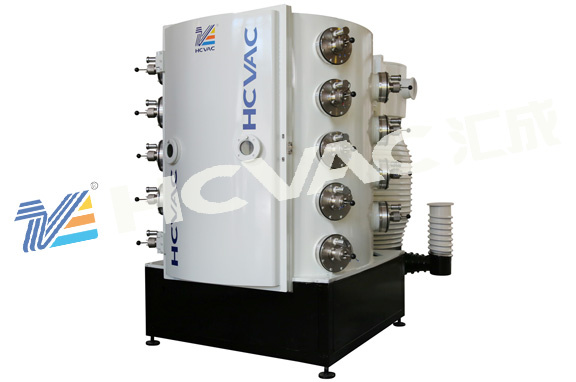

PVD Gold Coating Plating Machine for Bathroom Ceramic Wall Tiles

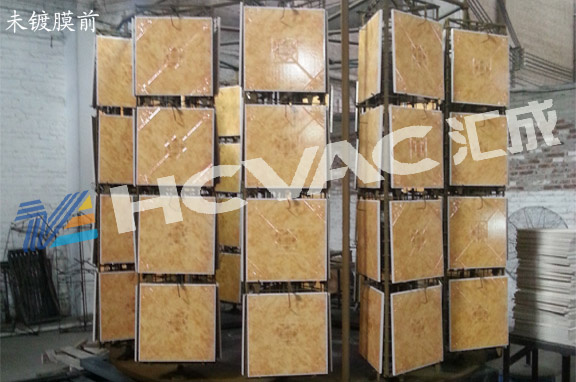

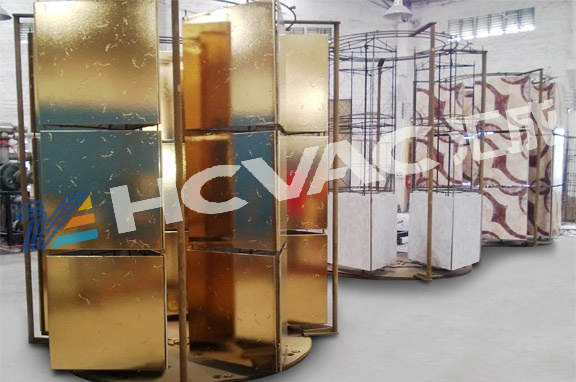

The machine suitable for coating all ceramic, porcelain, glass mosaic, mosaic tiles, also suitable for ceramic tablware and other metal products.
This is an ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is integrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
We can design the dimension of the vacuum chamber according to your requirements. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
Company Introduction:
The coating experts of your own company:Full set solution for the coating production
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
A special after-sales service hotline is set up to provide the customers with satisfactory problem solutions and technical support.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Please feel free to contact us for further information!Contact: Lillian Yang
Mobile: 0086-13825720037Technical parameters:Mode
Dimension | LH-900 | LH-1100 | LH-1250 | LH-1600 | LH-1800 |
| 900*1000mm | 1100*1000mm | 1250*1500mm | 1600*1800mm | 1800*1800mm |
| Maily application | Metal decorative coating and Ceramic decorative coating |
| Coating mode and main confirguration | Eight multi-arc targets | Ten multi-arc targets | Twelve multi-arc targets | Twenty multi-arc targets | Twenty two multi-arc targets |
| Power source | Electric-arc power, Filament power, |
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve |
| Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling |
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(8.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(8.0*10 -4 Pa) |
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute |
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. |
Why a HCVAC system? Over 1000 plants installed worldwideQuick cycle timesHigh production capability with low energy consumptionMore up time due to ease of loading/unloading and low maintenanceHigh productivity with only a single operatorSteel process chambers, built to lastEco-friendlySpace saving designPVD option available on all plants1 year component warranty and 12 years minimum guaranteed working lifeComplete global network of consulting, engineering and renowned after sales service

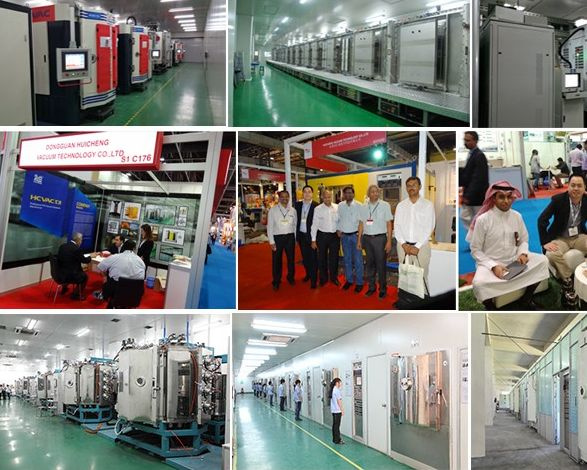

DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
