Product Specifications
| Prod Model: |
LH- |
| Product: |
Ceramic Tile Titanium Nitride Coating Machine |
| Business Type: |
China Manufacturer/Supplier |
| Structure: |
Vertical, Single Door |
| Control System: |
Manual Automatic All-in-One |
| Operating System: |
PLC Touching Screen |
| Brand: |
Hcvac |
| Coating Color: |
Gold, Rosegold, Silver, Black, Blue Ect |
| Chamber Material: |
Stainless Steel or Carbon Steel |
| Size: |
Customized |
| Coating Film: |
Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc. |
| Type: |
Coating Production Line |
| Coating: |
Vacuum Coating |
| Substrate: |
Glass, Metal, Ceramic, Alloy, Crystal, Mosaic |
| Certification: |
ISO9001, Ce |
Product Description
Ceramic tile titanium nitride gold pvd vacuum metallizing machine1. Brief intorduction:Ceramic Tiles vacuum metallizing machine can coat ceramic tiles, ceramic tableware, porcelain tiles, floor tiles, glass mosaic. Glass tiles. Beside ceramic, you can also coat metal, glass products. Until now we have make the biggest machine for coating tiles, it's production ability is can coat 1500 square meter per day.Ceramic Tiles vacuum metallizing machine is used to deposit TiN(gold color), Ti (silver color) and other coating on ceramic tiles. Thus it can replace the traditional paint gold, enhence the adhension, saves cost and improve production efficiency.
2. Detailed description:Ceramic Tiles vacuum metallizing machine is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is integrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; Combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Easy to implement

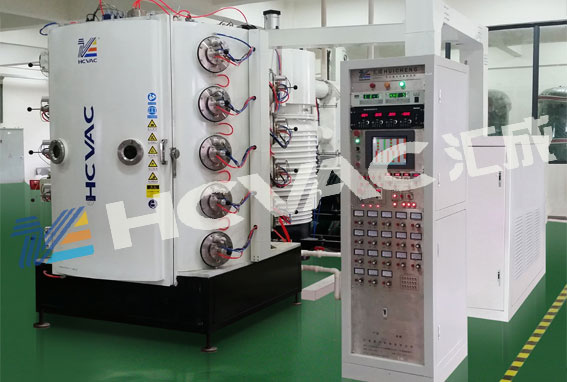

To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.This is our machine:(Popular size:D-1618,D-1818,D-2121,D-2522)

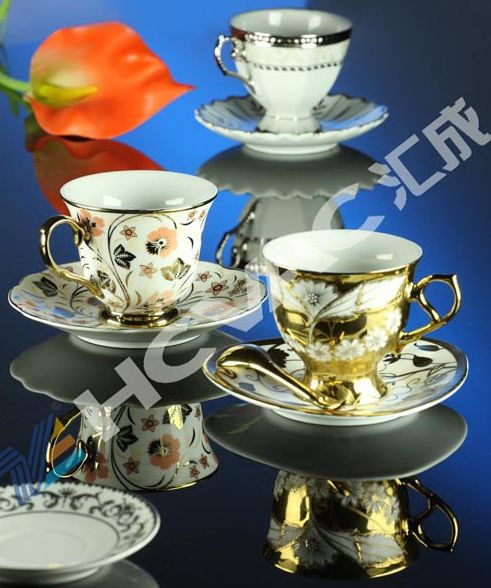

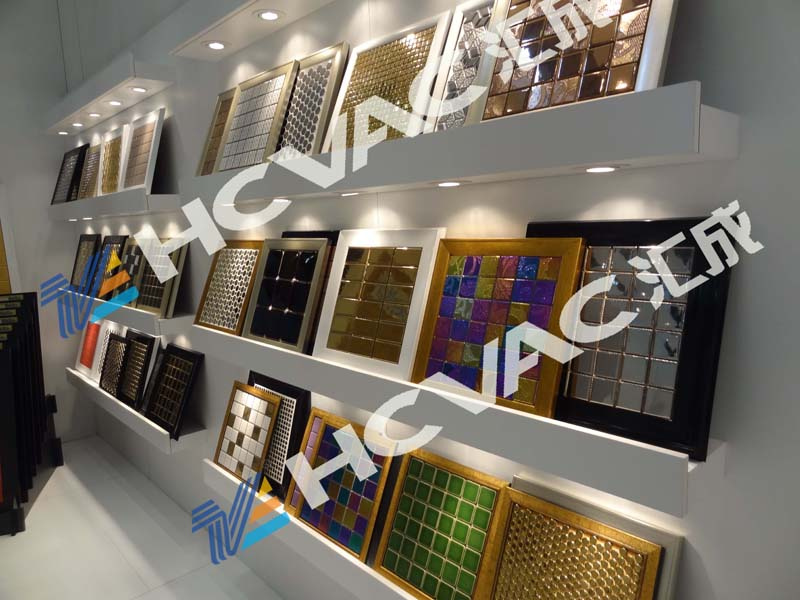

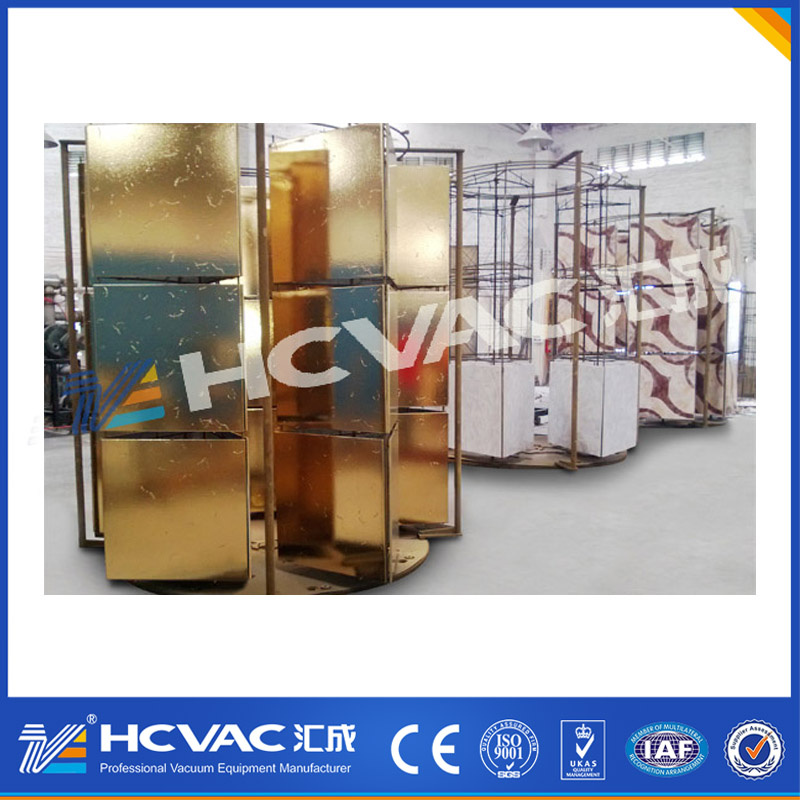

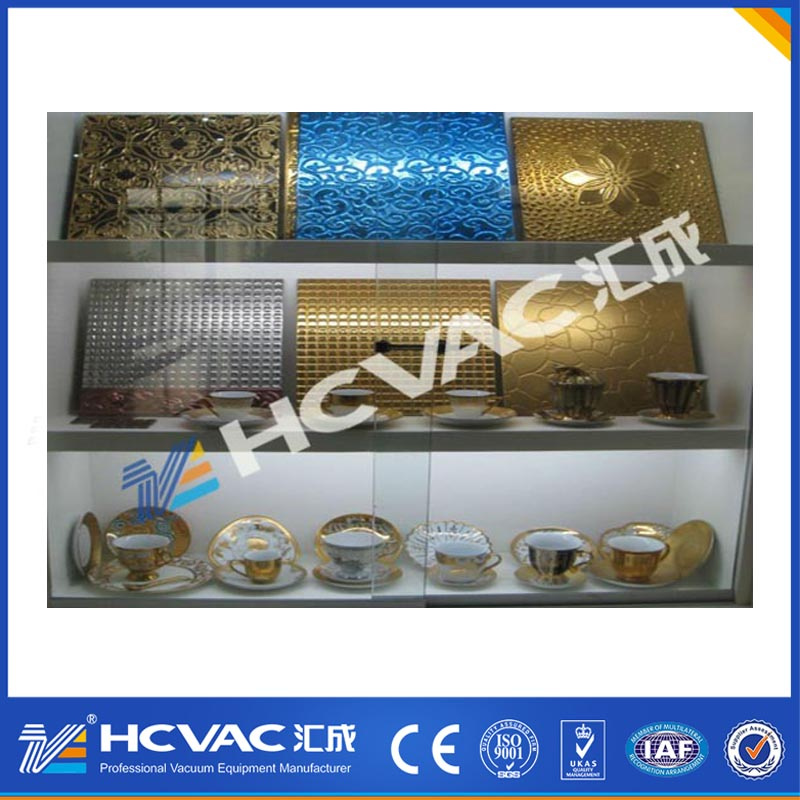

Samples coated by the machine:

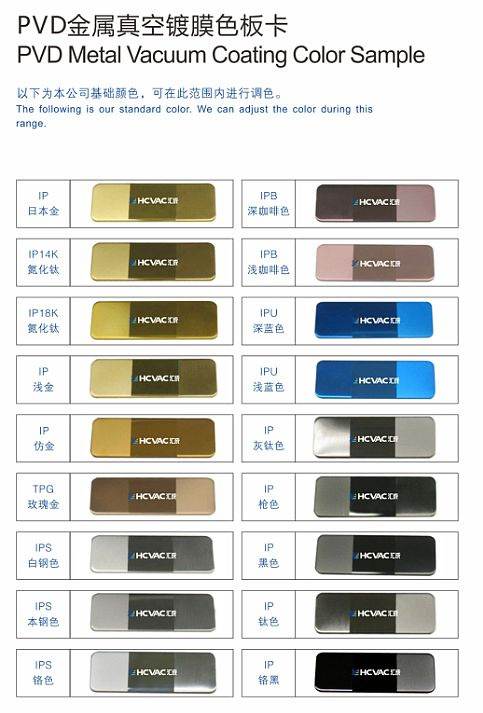

Color sample:
Mode
Dimension | LH-800 | LH-1250 | LH-1416 | LH-1618 |
| 800*1000mm | 1200*1500mm | 1400*1600mm | 1600*1800mm |
| Coating mode and main confirguration |
Eight multi-arc targets |
Twelve multi-arc targets |
Fourteen
multi-arc targets |
Twenty
multi-arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply |
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve |
| Vacuum chamber structure |
Vertical side opening door, pump system postposition, double water cooling |
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) |
| Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute |
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. |
