Product Specifications
| Prod Model: |
LH- |
| Business Type: |
China Manufacturer/Supplier |
| Product: |
Arc Ion Coating Machine |
| Coating Technology: |
PVD Vacuum Coating |
| Warranty: |
One Year Limited Warranty, Lifetime Maintenance |
| Structure: |
Vertical, Single Door |
| Control System: |
Manual Automatic All-in-One |
| Operating System: |
PLC Touching Screen |
| Brand: |
Hcvac-China |
| Coating Film: |
Tin, Tic, Ticn, Tialn, Crn, Cu, Au etc. |
| Coating Color: |
Gold, Rosegold, Silver, Black, Blue, Rainbow etc |
| Type: |
Coating Production Line |
| Coating: |
Vacuum Coating |
| Substrate: |
Glass, Metal, Ceramic, Alloy, Crystal, Mosaic |
| Certification: |
ISO90001, TUV |
Product Description
HCVAC-MAKE YOUR WORLD MORE BEAUTIFUL
Ceramic glass mosaic tile PVD arc ion coating machine,titanium gold coating equipment
(also suitable for glass,ceramic,metal,steel,alloy,mosaic,crystal ect)1. Vacuum process;
2. Non-pollution
3. Get metallized and colorful film
4. Full automaticPVD Ion Plating Machine is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry:PVD Ion Plating Machine can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipmentPVD Ion Plating Machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc

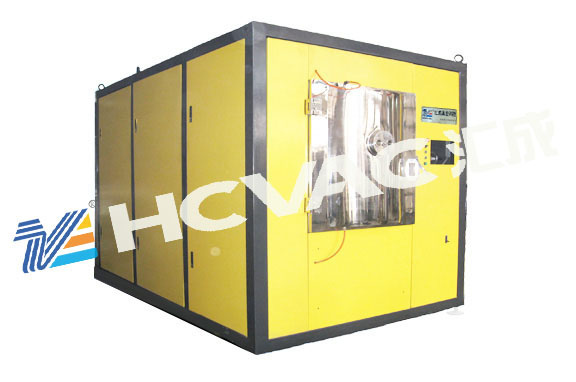

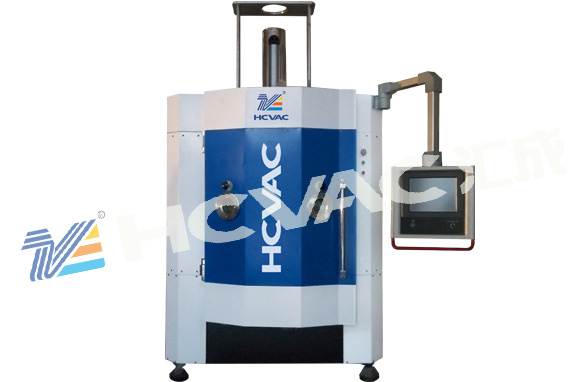

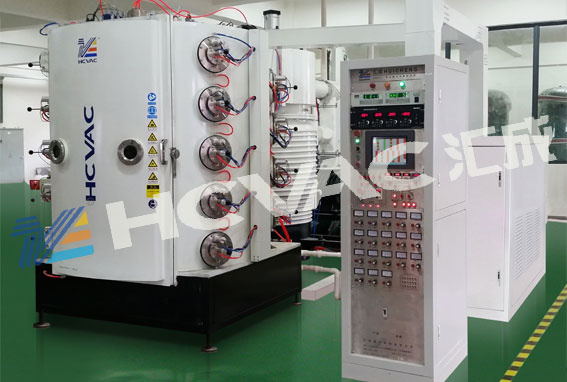

This is our machine:

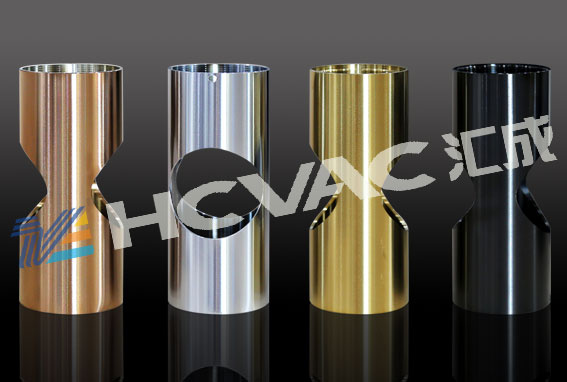

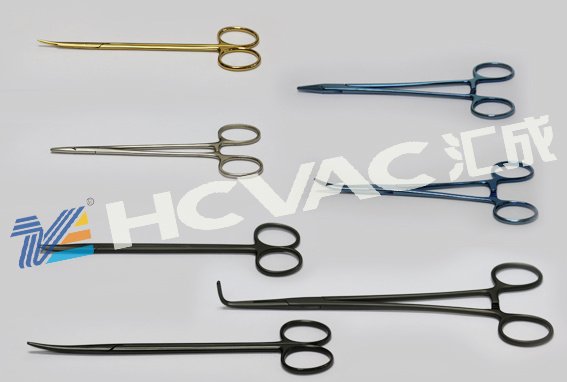

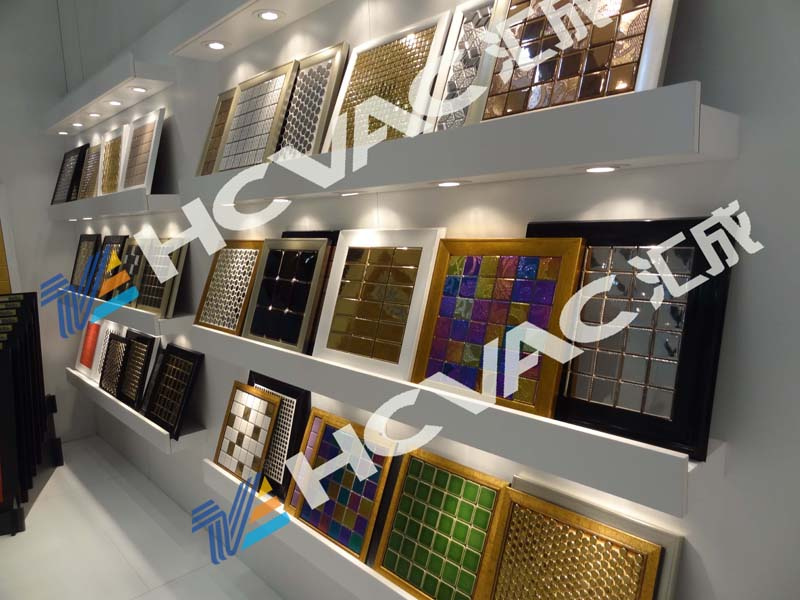

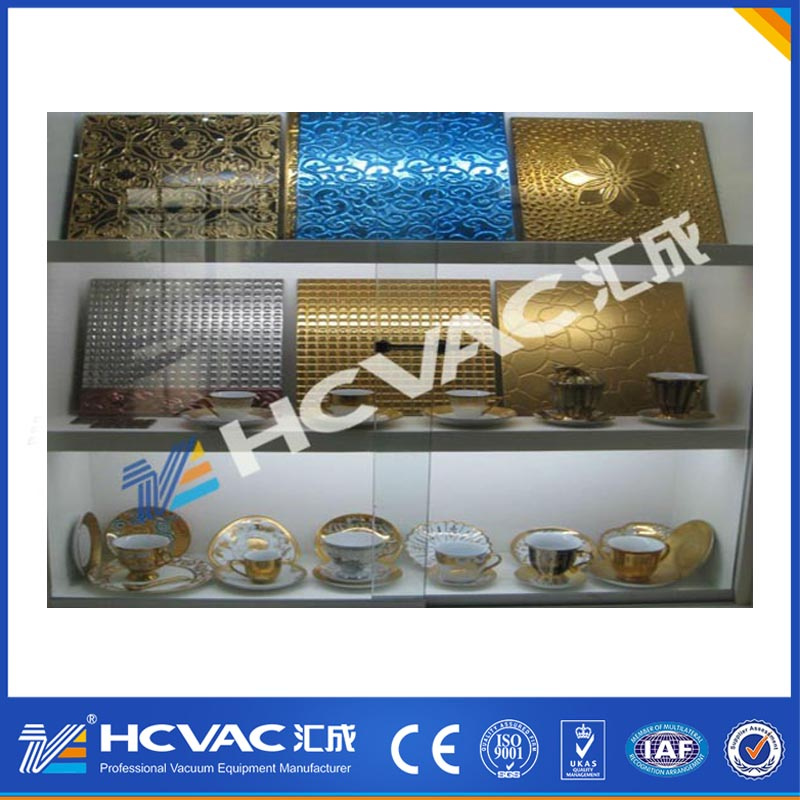

Samples coated by our machine:
Mode
Dimension | LH-800 | LH-1250 | LH-1416 | LH-1618 |
| 800*1000mm | 1200*1500mm | 1400*1600mm | 1600*1800mm |
| Coating mode and main confirguration |
Eight multi-arc targets |
Twelve multi-arc targets |
Fourteen
multi-arc targets |
Twenty
multi-arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply |
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve |
| Vacuum chamber structure |
Vertical side opening door, pump system postposition, double water cooling |
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) |
| Workpiece baking temperature |
Normal temperature to 350 centi-degree PID control, radiation heating. |
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute |
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. |
More information about our vacuum coating machine, pls do not hesitate to contact:Contact person: Mandy Liu
Phone No.:+8615989615980
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.
