Promotional Price! ! ! 4 Axis 3 D CNC Router for Furniture
| Price: |
US $ 15000-21000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE-1530 |
| Product Name: |
Ele-1530 4 Axis CNC Router |
| X,Y,Z Working Area: |
1500X3000X700mm*±100° |
| X,Y,Z Repositioning Accuracy: |
±0.01mm |
| X,Y,Z Traveling Positioning Accuracy: |
±0.01/300mm |
| Frame: |
Big Steel Tube Structure |
| X, Y Structure: |
Helical Rack and Gear |
| Driving System: |
Yaskawa Servo Motor and Drivers |
| Controller: |
Syntec 6MB |
| Spindle: |
Hsd 4.5kw Air Cooling |
| Inverter: |
Delta Inverter |
Product Description
Promotional Price!!! 4 axis 3 d cnc router for furniture

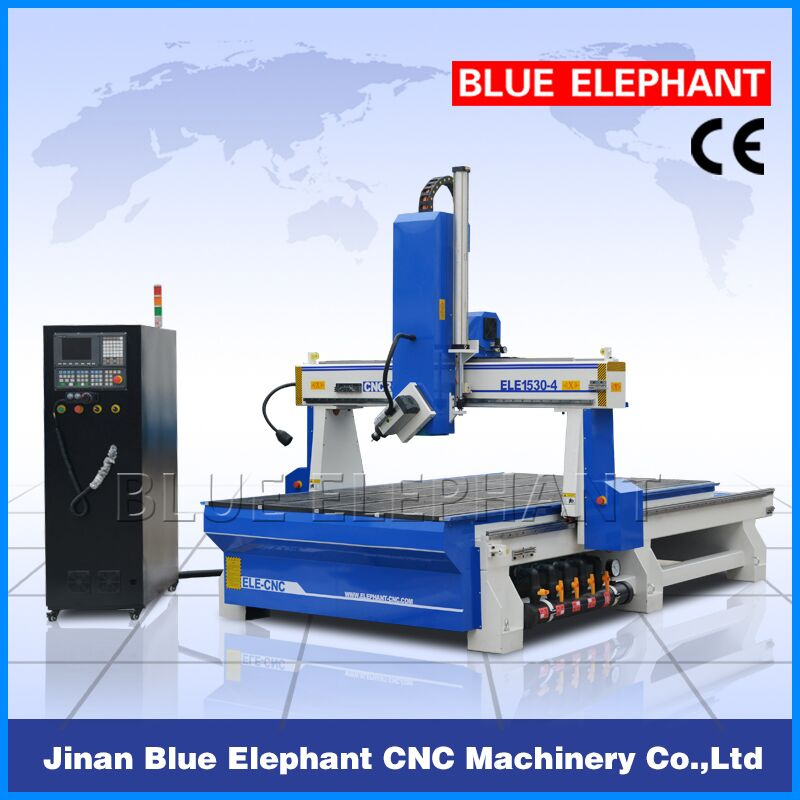

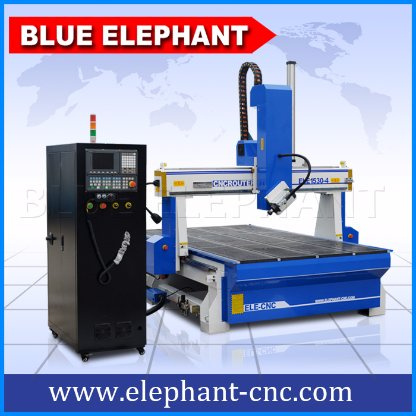

Picture of machine:
Features:
1, High Z travel: 700mm
2, Italy HSD brand air cooling spindle
3, Japan YASKAWA servo
4, Germany Eisele Reducer
5, Rotary device with servo: 400mm diameter,1500mm length
6,Taiwan SYNTEC control system
7, Helical rack gear
8, Taiwan TBI ball screw with high precision
9, 4th axis can move ±100°
10, 4th axis + Rotary device
Parameter:| Description | Parameter |
| X,Y,Z Working Area | 1500x3000x700mm*±100° |
| Table Size | 1500×3500mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| X,Y,Z Repositioning Accuracy: | ±0.01mm |
| Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
| Frame | Big Steel Tube Structure |
| X, Y Structure | Helical rack gear , HIWIN Linear guide |
| Z Structure | Imported Ball Screw , HIWIN Linear guide |
| Max. Power Consumption | (Without Spindle) 4.2Kw |
| Max. Rapid Travel Rate | 40000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | HSD spindle 4.5kw( HSD 6KW, 7KW, ATC 9KW spindle for option) |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Japan 850 W YASKAWA servo motor |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
| Command Language | G Code |
| Operating System | SYNTEC Control System (model: EZ4M) |
| Computer Interface | USB |
| Flash Memory | 512M |
| Collet | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | UG , Power mill |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
Application industry:
1). WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door,
screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards
and so on.
2).Advertising Industry: advertising identification, sigh making, Acrylic engraving
and cutting, crystal word making, blaster molding, and other advertising materials
derivatives making.
3). Die Industry:A sculpture of copper, aluminum, iron and other metal molds,
as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and
other non-metallic mold.
4). Relief Sculpture and 3D Engraving
5).Cylindrical object
Guarantee & After Sales Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems,
we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts
have any problems, we can change the old machine parts to new ones free, but you should pay all the
shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts
with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8,Machine will be adjusted before it is delivered , operation disk/CD was included.
FAQ | 1.Guarantee & After-Sales Service |
| 1.1 | One year warranty under normal use and we supply maintenance for life for free. |
| 1.2 | 24 hours technical support by phone, e-mail, SKYPE, MSN or Remote. |
| 1.3 | Free trainings to make sure you master the operation of cnc router. |
| 1.4 | English operation manual, popular and easy to understand. |
| 2.OEM Service Available |
| 2.1 | Usually, we will manufacture the machine as our regular design. |
| 2.2 | X Y Z Working Area could be customized designing. |
| 2.3 | Special configuration could be customized designing. |
| 3.Delivery Time (Production procedure) |
| 3.1 | For DX 3 axis machine with standard specification, usually 20 days. |
| 3.2 | For DX 4 axis machine with standard specification, usually 60 days. |
| 3.3 | For DX 5 axis machine, OEM or non-standard models, usually 120 days. |
| 4.Payment Terms |
| 4.1 | T/T in advance. |
| 4.2 | Western union: we can accept small payment (below $3000), but the banking charges shall be paid by the buyer. |
| 4.3 | L/C is acceptable if the amount is big. Please issue the L/C draft for our confirmation first. |
