| Price: | US $ 4000-8000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal |

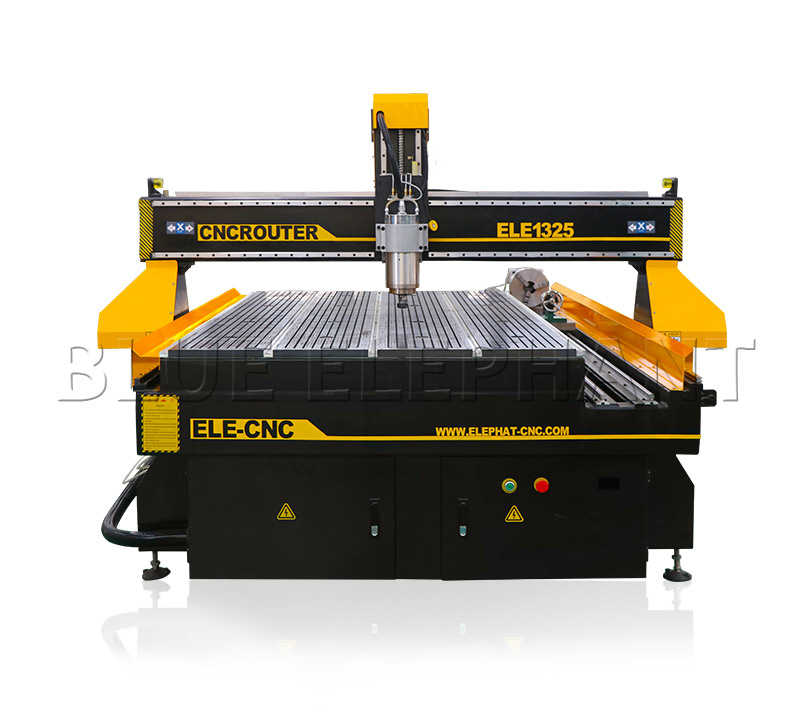

| Prod Model: | ELE1325 |
|---|---|
| Power(W): | 5.5 Kw |
| Weight: | 1500kg |
| Wood Router: | Craftsman CNC Router |
| Spindle Power: | 4.5kw Water Cooling Spindle for Craftsman CNC Rou |
| Table Surface: | T-Slot and Vacuum Table Surface for Craftsman CNC |
| Driver Mortors: | Stepper FL118 for Craftsman CNC Router |
| Control System: | Mach3 4 Axis Control System for Craftsman CNC Rou |
| Application: | Wood, Stone, Cylinder Object for Craftsman CNC Rou |
| Inverter: | 5.5kw Fuling Inverter for Crafts |
| X,Y Axis Structure: | E: #20 Hinwin Linear Guide, Helical Rack |
1. Features:
2. Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x200mm |
| Table Surface | Vacuum and T-slot working table,4 zones |
| Frame | New style heavy duty Welded Structure |
| X, Y Structure | Rack and Pinion Drive, #20 ABBA Rail Linear Bearings |
| Z Structure | Taiwan TBI ball screw |
| Spindle Power | 4.5kw Changsheng Water Cooling Spindle |
| Spindle Speed | 0-24000RPM |
| Inverter | 5.5KW Fuling Inverter |
| Drive Motors | Stepper FL118 |
| Working Voltage | 380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH) |
| Command Language | G Code |
| Operating System | Mach3 4 axis control system |
| Computer Interface | USB |
| Rotary device | 200mm diameter*2000mm length |
| Collet | ER25 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Artcam software 2012 |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
PS: All the working area and specifications can be customized according to your requests.
3. Optional Parts
1.1 Oil/Water Mist Cooling Sprayer
It is suitable for cutting or engraving soft-metal (like aluminum and cooper), stone(marble) etc material, has cooling effect.
1.2 Spindle cover and Dust collector
They are designed for human operation protection and promise clean table surface, save maintenance time for you.
1.3 Pump
We can provide vacuum pump or water circulation pump for your choice.
1.4 Rotary Device
It can engrave cylindrical object.
The rotary device's diameter, length and position can be customized according to your requests.
We can also provide other optional parts according to your needs.

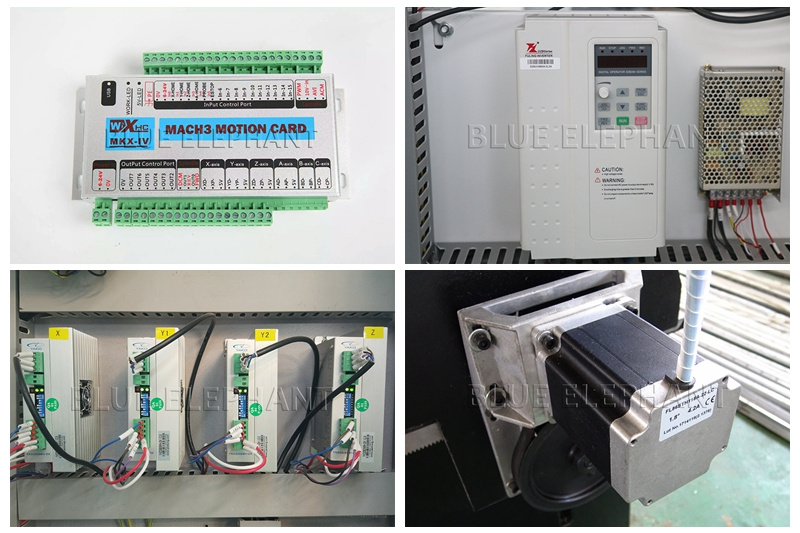

| 1. Spindle | Water Cooling Spindle |
| 2. Inverter | China Famous Fuling Inverter |
| 3. Motor and Drive | Stepper Motor FL118 stepper motor, big power. YAKO 2608 Drive and Leadshine 860H Drive can run with smaller noise, lower heating, smoother movement and have better performances at higher speed |
| 4. Control system | Mach3 Controller |
| 5. Transmission system | Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN or ABBA Linear Rail |
| 6. Working table | T-slot and Vacuum Table Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down and also enables you to clamp the workpiece in place. |
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
Delivery&Packaging

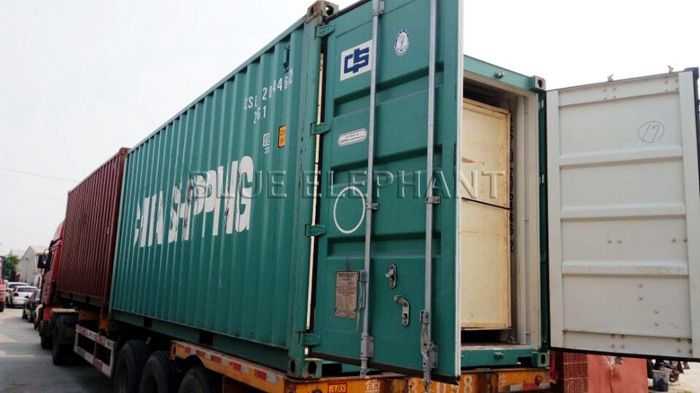

1. Delivery and Package:
Generally we will take care of your machine packages well like picture show.
Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet protection, at last we will make export standard strong plywood case package according to your needs.
2. Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
3. Technical support:
1. Technical support by phone, email or MSN/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
4. After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc
