Product Specifications
| Prod Model: |
D5~D300mm |
| Type: |
Flat Lens |
| Material: |
Optical Glass |
| Shape: |
Round |
| Coating: |
R Ar Bbar Gold Aluminaine |
Product Description

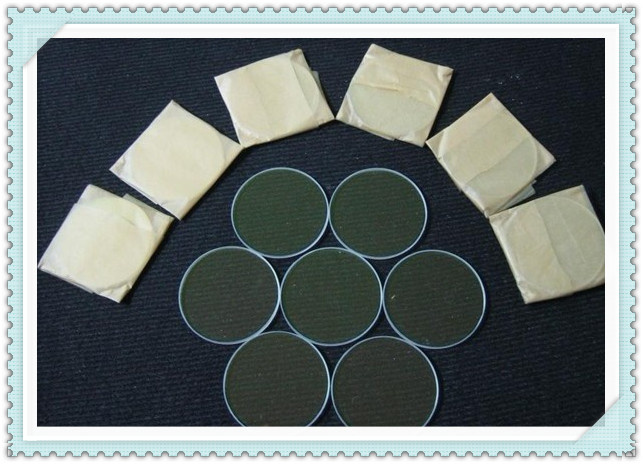

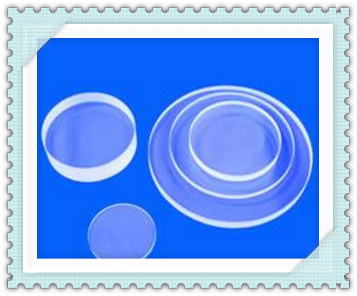

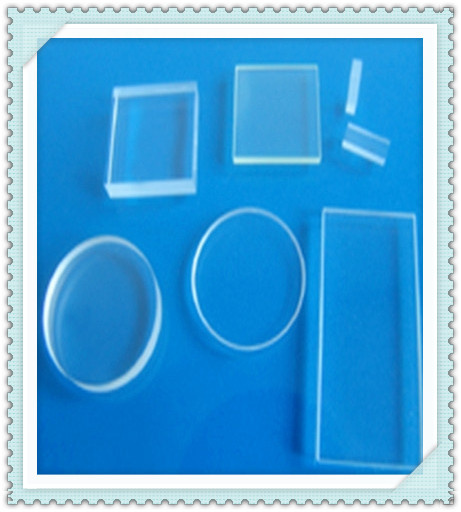

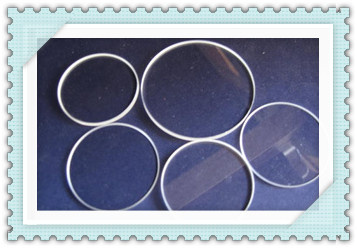

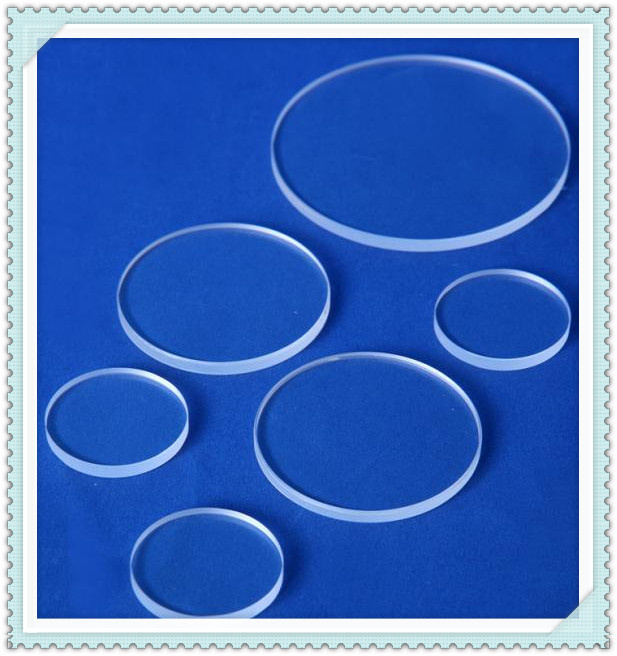

A borosilicate crown glass, BK7 is relatively hard, does not scratch easily, and can be handled without special precautions. Good performance over visible and near IR spectrum for most application.
The ideal window allows the optical beam to pass unimpeded and unchanged with high durability according to requirement of applications. In order to come close to this ideal, our windows and optical parallels are manufactured considering with transmittance, homogeneity, sub-surface damage, surface flatness and parallelism of the materials or in polishing processes to achieve high transmittance, low wavefront distortion and low scatter.
Non-coated and AR coated products are available.
| Standard Specifications: | |
Optical Material:
Diameter Tolerance:
Thickness Tolerance:
Clear Aperture:
Parallelism:
Surface Quality:
Wavefront Distortion:
Bevel:
Coating: | BK7 Grade A Optical Glass
+0.0, -0.1mm
± 0.2mm
>85%
see the table
20-10 scratch and dig
see the table
<0.25mm X 45°
available upon request | |
Standard Glass BK7 WindowsDia(mm) | T(mm) | Wavefront Distortion | Product Number | Parallelism 5 arc sec | 10.0 | 6.0 | Lambda/10 | ICC-WDBH0001 | 12.7 | 6.0 | Lambda/10 | ICC-WDBH0002 | 25.0 | 6.0 | Lambda/10 | ICC-WDBH0003 | 25.4 | 6.5 | Lambda/10 | ICC-WDBH0004 | 30.0 | 6.0 | Lambda/10 | ICC-WDBH0005 | 50.0 | 10.0 | Lambda/4 | ICC-WDBH0006 | 75.0 | 15.0 | Lambda/4 | ICC-WDBH0007 | Parallelism 1 arc min | 10.0 | 3.0 | Lambda | ICC-WDBL0101 | 12.7 | 3.0 | Lambda | ICC-WDBL0102 | 15.0 | 1.0 | Lambda | ICC-WDBL0103 | 15.0 | 3.0 | Lambda | ICC-WDBL0104 | 25.0 | 3.0 | Lambda | ICC-WDBL0105 | 25.4 | 3.5 | Lambda | ICC-WDBL0106 | 30.0 | 3.0 | Lambda | ICC-WDBL0107 | 50.0 | 6.0 | 2Lambda | ICC-WDBL0108 | 50.8 | 6.0 | 2Lambda | ICC-WDBL0109 | 75.0 | 15.0 | 2Lambda | ICC-WDBL0110 |
|
| Please Contact Qinhuangdao Intrinsic Crystal Technology Co., Ltd for other dimensions in prototype and production quantities. |
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.
Our Strengths
Ample, stable and cost-efficient supply of IR materials.
ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.
Consistent and high-performance manufacturing
During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.
The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.
Excellent quality and efficient service
From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.
Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.
Competitive Prices
ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.
Stable and reliable business partner
We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.
Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
