Product Specifications
| Prod Model: |
BK7 12.7mm corner cube retroreflectors |
| Type: |
Right Angle Prism |
| Shape: |
Right Angle Prism |
Product Description

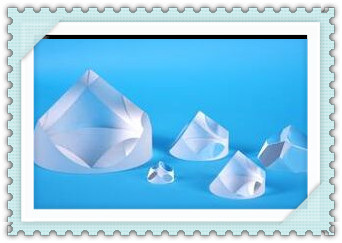

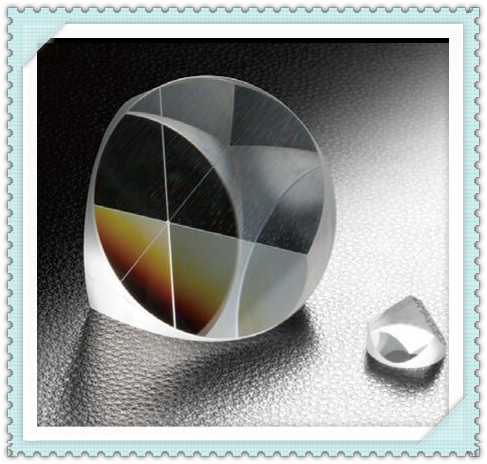

Corner Cube Retro-Reflectors operates on the principle of total internal reflection (TIR). A beam entering the effective aperture is reflected by the three roof surfaces and emerges from the entrance / exit surface parallel to itself. This property is independent of orientation of the retro-reflector, within acceptance angle limitations.

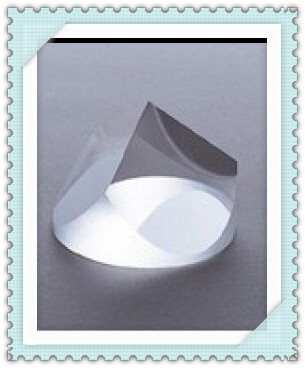

Why is it called "Corner Cube"? Imagine a knife cutting diagonally across a square block of glass and then the "three-sided pyramid" is further cut with a cylinder. The diameter of the cutting cylinder determines the size of the Corner Cube Lens:
For applications in which either the acceptance angle for TIR is exceeded, or the reflecting surfaces cannot be kept sufficiently clean for TIR, a metal or dielectric coating can be applied to the reflecting surfaces.
Antireflection coated entrance and exit faces are also available.
| Standard Specifications: | |
Optical Material:
Dimension Tolerance:
Clear Aperture:
Deviation:
Flatness:
Surface Quality:
Bevel:
Coating:
| BK7 or Fused Silica
± 0.2mm
>80%
180°
lambda/4 at 632.8nm on big surface
lambda/4 at 632.8nm on other surface
60-40 scratch and dig
0.2-0.5mm X 45°
Uncoated or silver with inconel and black overpaint. |
Standard Corner Cube Retroreflectors
 D(mm) | H(mm) | Angle Tolerance | Material | Product Number | 7.16 | 6.10 | 10 arcsec | BK7 | ICC -CCRB0101 | 7.16 | 6.10 | 1 arc min. | Fused Silica | ICC-CCRF0102 | 12.70 | 10.16 | 3 arcsec | BK7 | ICC-CCRB0103 | 12.70 | 10.16 | 1 arc min. | Fused Silica | ICC-CCRF0104 | 25.40 | 19.05 | 3 arcsec | BK7 | ICC-CCRB0105 | 25.40 | 19.05 | 30 arcsec | Fused Silica | ICC-CCRF0106 | 38.10 | 29.21 | 3 arcsec | BK7 | ICC-CCRB0107 | 38.10 | 29.21 | 30 arcsec | Fused Silica | ICC-CCRF0108 | 50.80 | 38.10 | 3 arcsec | BK7 | ICC-CCRB0109 | 50.80 | 38.10 | 1 arc min. | Fused Silica | ICC-CCRF0110 | 63.50 | 48.26 | 3 arcsec | BK7 | ICC-CCRB0111 | 63.50 | 48.26 | 1 arc min. | Fused Silica | ICC-CCRF0112 | 76.20 | 57.15 | 3 arcsec | BK7 | ICC-CCRB0113 | 76.20 | 57.15 | 1 arc min. | Fused Silica | ICC-CCRF0114 |
|
