Product Specifications
| Prod Model: |
ele-6015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
Mini DIY CNC Router |
| Working Area: |
600mmx150mmx85mm |
| Spindle Power: |
1.5/2.2/3kw Water Cooling Spindle |
| Max. Working Speed: |
6000mm/Min |
| Spindle Rotation Speed: |
0-24000rpm |
| Inverter: |
Fuling Brand ( Taiwan Delta for Option) |
| Control System: |
DSP /Mach3/Ncstudio |
| X,Y,Z Axis Structure: |
Ball Screw Imported From Taiwan |
| Driver Motors: |
Stepper |
| Table Surface: |
T-Slot Working Table |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
Product Description

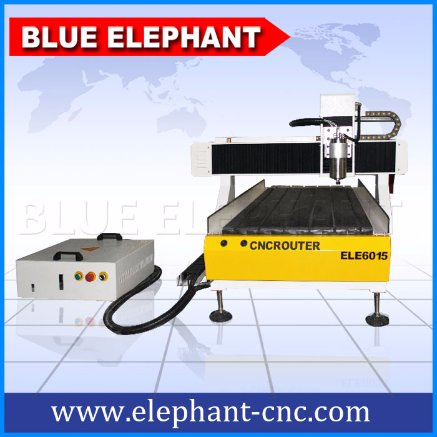

New type desktop mini cnc router diy cnc router machine with best price
| Model | ELE-6015 |
| X,Y,Z travel( mm) | 600x1500x150 |
| Spindle power | 1.5kw water cooling spindle |
| Spindle rotation speed | 0-24000RPM |
| Max. Rapid Travel Rate | 9000mm/min |
| Max. Working Speed | 6000mm/min |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| X,Y,Z Repositioning Accuracy | ±0.01mm |
| Table Surface | T-slot working table |
| Transmission | Taiwan TBI Ball Screw |
| Drive Motors | stepper |
| Controlling system | DSP |
| Working Voltage | 220V,1 PH,50/60HZ |
Features
1).1.5 kw water cooling spindle(top brand in China),with high precision and strong power.
2).It is good at engraving on brass, aluminum, plastic, acrylic, wood, MDF and other
similar materials.
3).It is equipped with the international leading mach 3 controller which could memorize the breakpoint if it happens accident so that to guarantee to process in the other day.
4).With T-slot working table, holding the materials with clamps, you can do
variety of high-precision works.
Standard Configurations
1. 1.5 kw water cooling spindle
2. 1.5 kw fuling inverter
3. Taiwan HIWIN square linear guide
4. Taiwan TBI ball screw
5.T-slot working table
6. Water mist cooling spayer
All configuration can be changed according to your requests.
Application
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding,and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object
