New Ele2040 Linear Atc CNC Router Machine for Sale
| Price: |
US $ 9999-25999set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
ELE 2040 |
| Voltage: |
AC380V/50/60Hz, 3pH (Option: 220V) |
| Dimension(L*W*H): |
3200X2100X1980mm |
| Spindle Power: |
7.5kw Hqd Water Cooling Atc Spindle |
| Spinlde Speed: |
0-24000rpm |
| Driving System: |
Japan Panasonic Servo Motor and Driver |
| Control System: |
Taiwan Syntec Control System |
| Table Surface: |
T-Slot & Vacuum Table Surface |
| Frame: |
Heavy Welded Structure |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description
ELE 2040 new hot sale linear atc cnc router machine
Features:
1. 7.5kw HQD Water cooling ATC spindle, 24000rpm
2. Taiwan SYNTEC 6MB control system,
3. Japan Panasonic servo motor and driver, more stable and stonger.
4. 8*position, also can choose 6pcs, 10pcs, 12pcs etc.
5. XY axis transmission is Taiwan HIWIN linear guide with Helical rack, high performance.
6. Zaxis transmission is Taiwan TBI Ball Screw with Taiwan HIWIN linear guide, high precision.
7.Welded steel structure
8.Tool sensor calibration
9.Automatic Oil lubrication system
10.Switch: Japanese OMRON Switch
Parameters: | Model | ELE 2040ATC |
| X,Y,Z Working Area | 2000*4000*200mm effective working area |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
| Frame | Thicken steel Square Tube Heavy structure , 8mm thicken steel
gantry with T type |
| X, Y Structure | Gear and rack transmission, Taiwan HIWIN Linear Rail |
| Z Structure | Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
| Max. Power Consumption | (Without Spindle) 4.5KW |
| Max. Rapid Travel Rate | 60000mm/min |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 7.5kw HQD Water cooling ATC spindle (China top brand) |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Japan PANASONIC servo motor and driver
|
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | Taiwan SYNTEC 6MB control system
|
| Computer Interface | USB interface |
| Collet | ISO30 |
| Inverter | Taiwan DELTA 11kw |
| Software Compatibility | Type 3 /Artcam /Ucancam |
Details:
Application & samples :1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as
artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.relief sculpture and 3D engraving

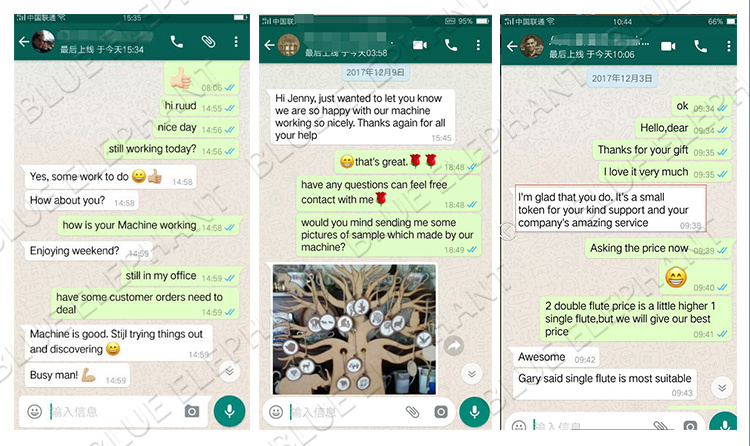

Customers Feedback:
Our Services1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.Our Factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after sale & service department.
- Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
