Product Specifications
| Prod Model: |
DTM1325-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V |
| Power: |
3.5kw |
| Weight: |
1500kgs |
| Motor: |
Stepper |
| Feeding Height: |
200mm |
| Tool Change Type: |
Spindles Instant Swith |
| Dimension: |
1300*2500*200mm |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Layout: |
Spindle Over |
| Certification: |
ISO |
| Spindle Number: |
2 |
Product Description

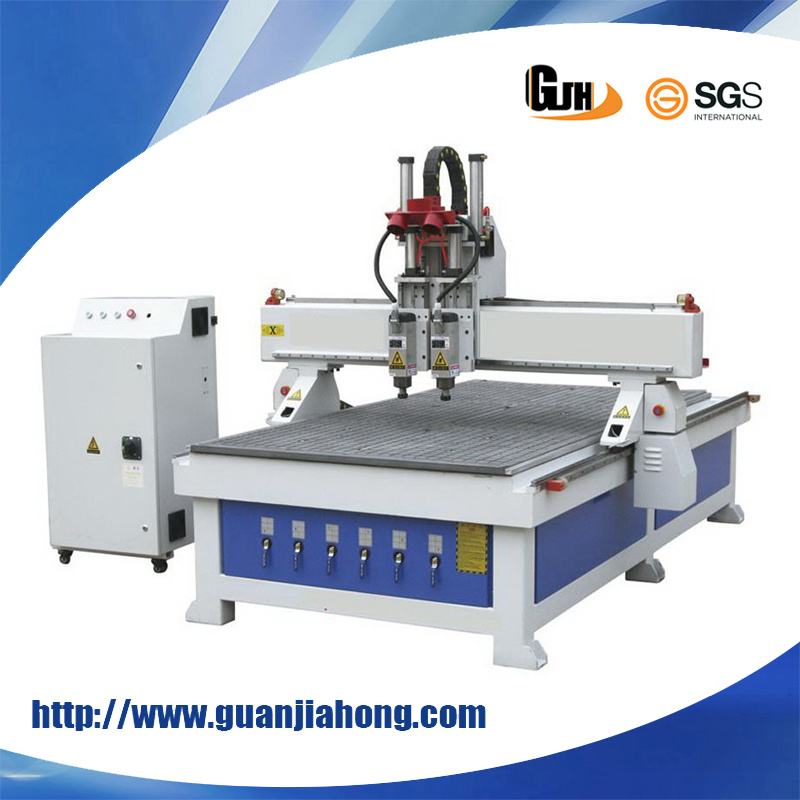

Multi-workstage Fulling Inverter, Yako Driver, 1325, ATC, Engraving/ Milling Cnc RouterPLEASE CHECK THE VEDIO FOR THIS MACHINE AS FOLLOWS:
http://v.youku.com/v_show/id_XODkxOTEwMDY0.html

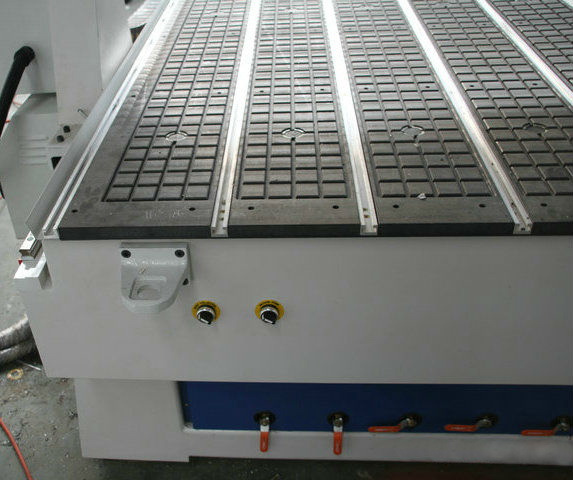

http://v.youku.com/v_show/id_XODkyNDA0OTQw.htmlFeatures: 1. Whole machine is welded with seamless steel structure; the stability is excellent, not easy to be deformed. Vacuum table with 6 vacuum zones, which can adsorb different size materials.
2. Three axes adopt Taiwan PMI high precision linear orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost. Z axis adopts ball screw,with high precision and long life time.
3. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
4. Has the function of re-carving after break point and power failure. Has the function of forecasting process time.
5. Adopting advanced Nc Studio system, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
6. Adopting 3.5Kw air-cooling spindle make the machine have high precision, long life-time and steady working capacity.
7. Perfect oil-inject system makes maintenance much easier.
8. Has duct-collect function. It will clean up the carving residuum and make the operations tidier and more convenient. Applicable industries and materials:Processing various kinds of moulds and furniture such as door, window, cabinet, craft wooden door, screen and so on.

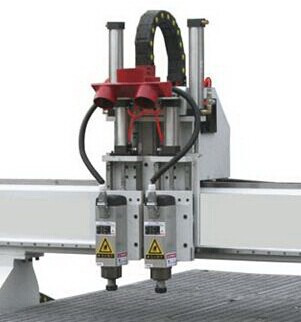

Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal materials and light metal materials.Two High Quality Spindles auto change just like ATC:

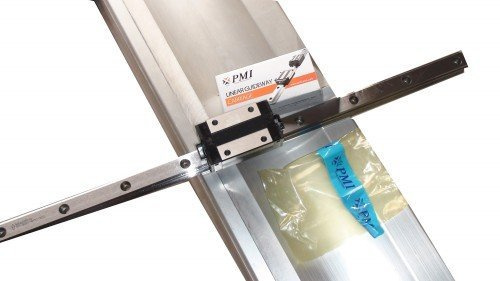

Imported PMI High Precision Accessories:
Real Images for our machine, that is our reliable quality products.
Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.Guarantee & After-sale service
1. One year warranty under normal use and we supply lifelong maintenance.
2.24 hours technical support by Phone, Email, Skype, Msn, or romote.
3. Free training to make sure you master the operation of the cnc router.
OEM Service Available
1. Usually, we will manufacturer the machine as our regular design.
2. X Y Z Working Area could be custmer-oriented designing.
3. Special configuration could be customer-oriented designing.
| NO | Performance index | Performance index | Parameter |
| 1 | Working area | X axis | 1300mm |
|
| Y axis | 2500mm |
|
| Z axis | 200mm |
| 2 | Table size |
| 1300mm*2500mm |
| 3 | Accuracy | Processing precision | 0.05mm |
|
| Reposition precision | 0.05mm |
| 4 | Drove mode | X axis | Rack |
|
| Y axis | Rack two motor |
|
| Z axis | Ball screw |
| 5 | Speed | Max travel speed | 30000mm/min |
|
| Max engraving speed | 15000mm/min |
| 6 | Spindle(water-cooling) | Spindle power | 5.5KW |
|
| Spindle speed | 0_24000r/min |
| 7 | Running mode |
| Stepper |
| 8 | Operating voltage |
| AC220V/50HZ |
| 9 | Command code |
| G Code |
| 10 | Operating system |
| Nc Studio 53C |
| 11 | Table |
| Vacuum |
| 12 | Machine's size |
| 3100x2200x1800mm |
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
