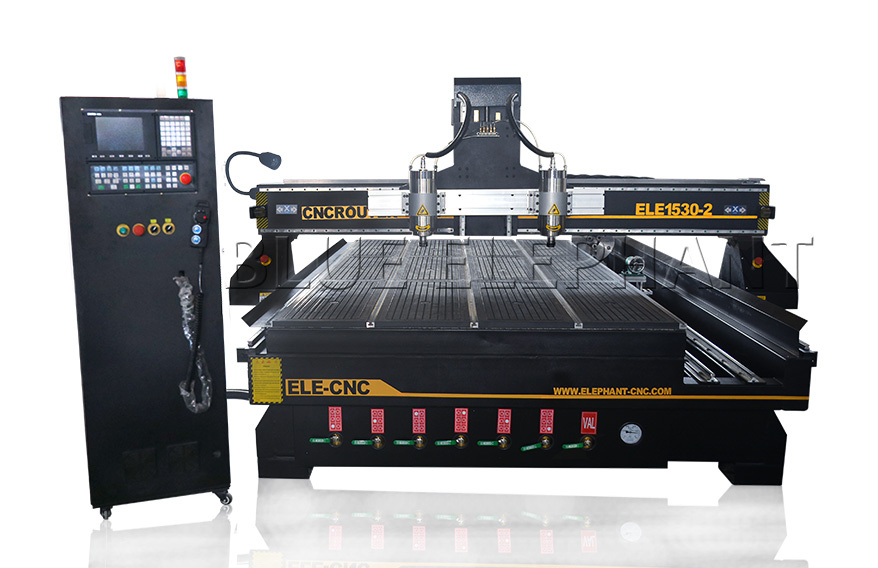

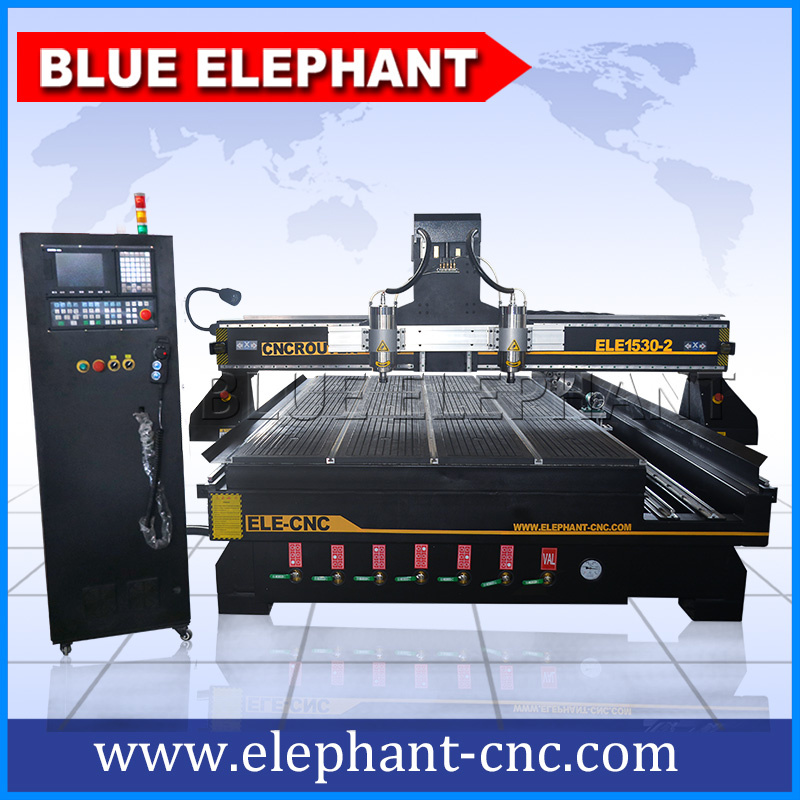

Multi Head Engraving CNC Wooden Machine with 4th Axis, Doors Wood Machine

Advantages of multi heads cnc router:

• heavy duty frame and gantry , very durable
• The machine has two spindles, they do the same works at the same time.
• fast carving speed: high-speed 850kw YASKAWA servo motor and driver, high precision helical rack drive, with the high power engraving spindle cutting faster.
• Stable operation: adopting imported linear guide rail, Large bearing capacity , smooth running, high precision, long life, carving precisely.

Parameters of multi heads cnc router:

PS:All the working area and specifications can be customized according to your requests.
Product details of multi heads cnc router:

Features of multi heads cnc router:

• Effective working area 1500*3000*200  mm
• 2*5.5KW Changsheng water cooling spindle ,24000 rpm
• 5.5Kw Fuling inverter * 2 sets
• Japan YASKAWA servo motor and driver
• Taiwan SYNTEC 6MB control system
• Rotary device: 300mm diameters for Y axis
• HIWIN #20 linear square guide way for X,Y,Z axis
• Taiwan TBI ball screw for Z axis
• Vacuum &T-slot working table
• Tool sensor calibration
• Japan OMRON limit switch for X,Y,Z axis
• 380V, 3phase, 50HZ

Applications:

• Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
• Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
• Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
• Relief sculpture and 3D engraving.
• Cylindrical object.

Samples:

Packaging & Delivery:

Packaging Details:  1.Outside package:Standard marine export plywood case.

                                  2.inner package:Stretch film and plastic film for humidity.

                                  We can package according to your requests.

Delivery Detail:  Shipped in 20 working days after payment.

Our Service:

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered, operation disk/CD was included.

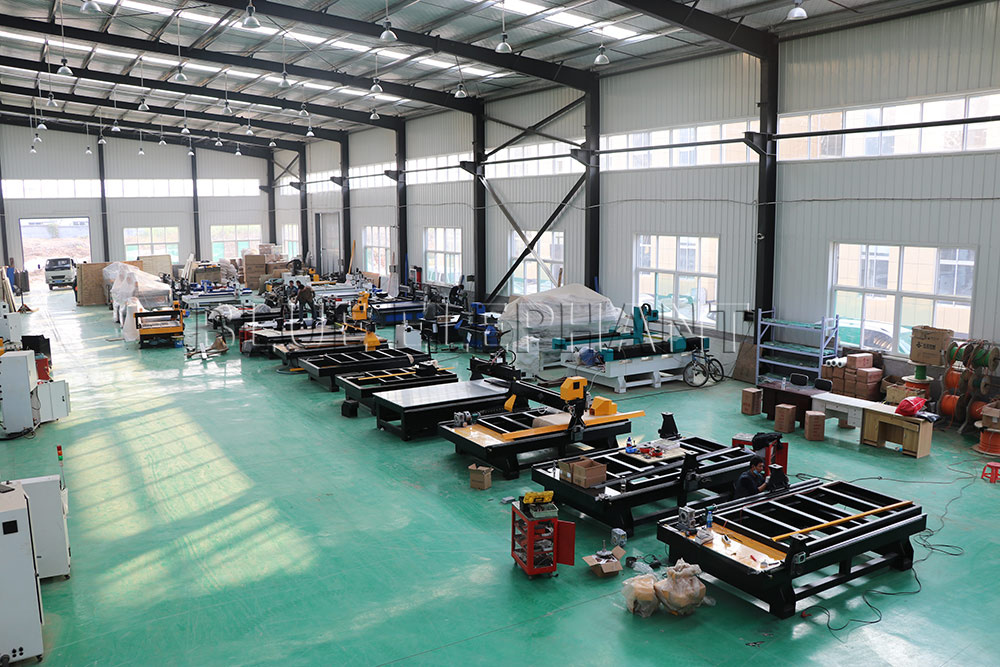

Welcome to our factory:



Just looking forward to service every customer, like you.
