Product Specifications
| Prod Model: |
DT1813-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
1800*1300 |
| Drive Mode: |
Estun Servo (Optional Yasakawa) |
| Application: |
Stone Industry |
| Current: |
AC |
| Function: |
Lettering |
| Automation: |
Automatic |
| Control: |
CNC |
| Application Material: |
Stone and Wood |
Product Description

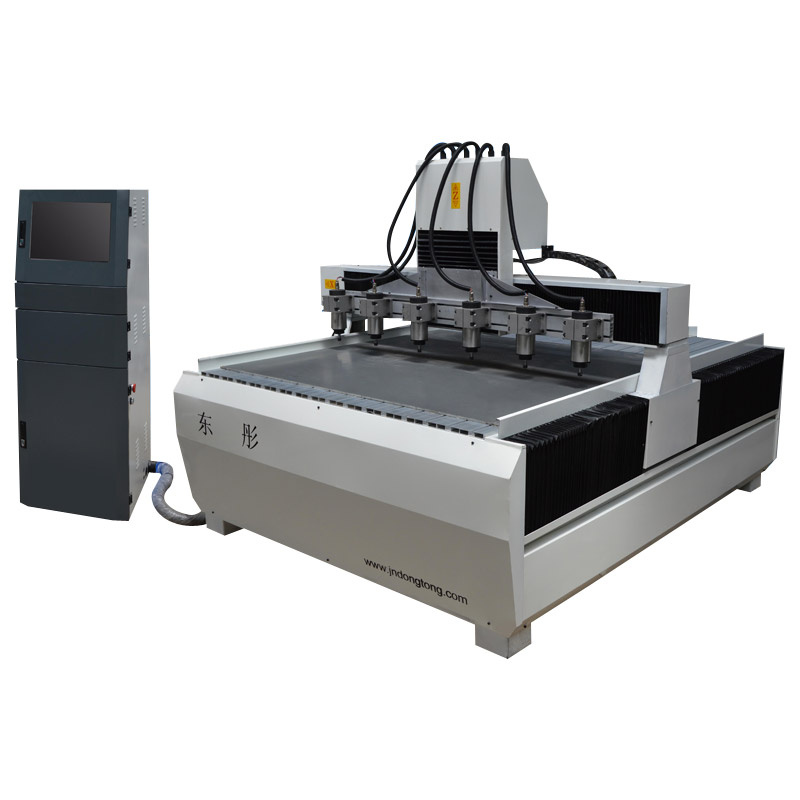

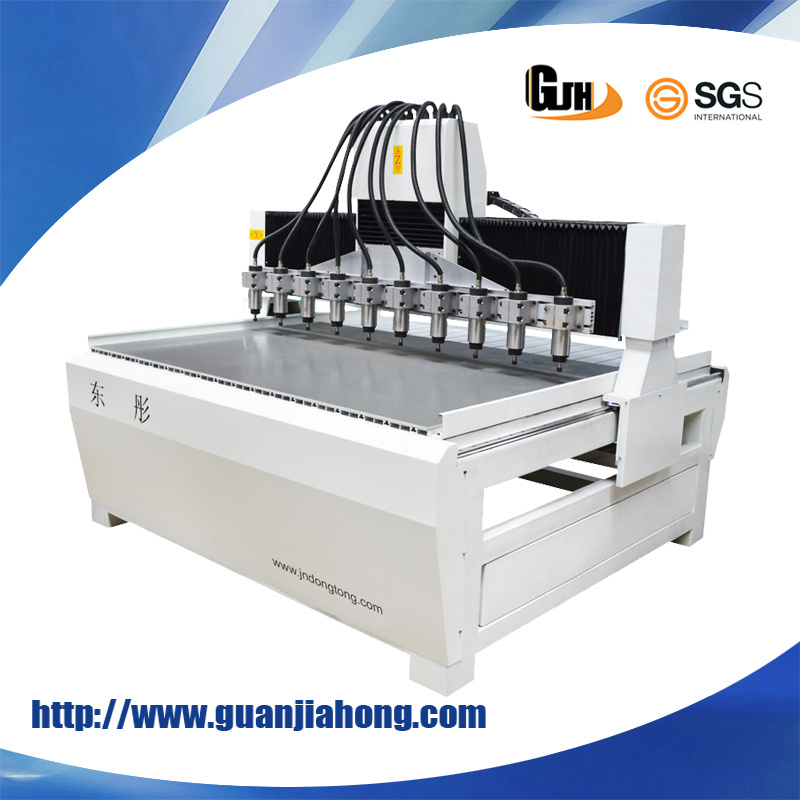

CNC router machine from professional cnc router machine maufacturor.Feature: 1. DT1813-10 engraving machine is our company specially developed and designed for small workpiece but mass production, high precision, high speed and high cost performance.
2. The lathe bed is welded by steel structure seamlessly, has good stiffness and non-deformation.
3. Using computer cabinet, the original Weihong control system has Stable performance and high reliability .
4. Automatic oil lubrication system, it is more convenient for maintenance.
5. With function about continued carving when it has breakpoint, power recovery and processing time prediction
6. Imported ball screw rod and round rail, original screw nut, Imported linear and square rail
Application industry:1. Woodworking industry: The furniture of door, window, cabinet, craft wood door, paint free door, folding screen, process window, wave board processing, including the processing for wood art.
2. Stone industry: Natural marble, granite, artificial stone, tombstone, milestone, ceramic tile, glass and other materials of 3D relief and line carving, cutting, edge, drilling and 2D carving.
3. Advertising industry: Suitable for processing various design and colorful mould, just like: Signs, architectural models, badges, badge, name plate, exhibition board, indicator, craft decoration, furniture decoration, etc.
4. Handcraft industry: Can engrave in wood, bamboo, artificial marble, organic board, double color boards, crystal and other material.
5. Also can carve and achieve all kind of effects for reliefs, movie, hollow and plate engraving, cutting and valuable. such handiwork, graphic engraving, cutting, the bottom of milling,etc.

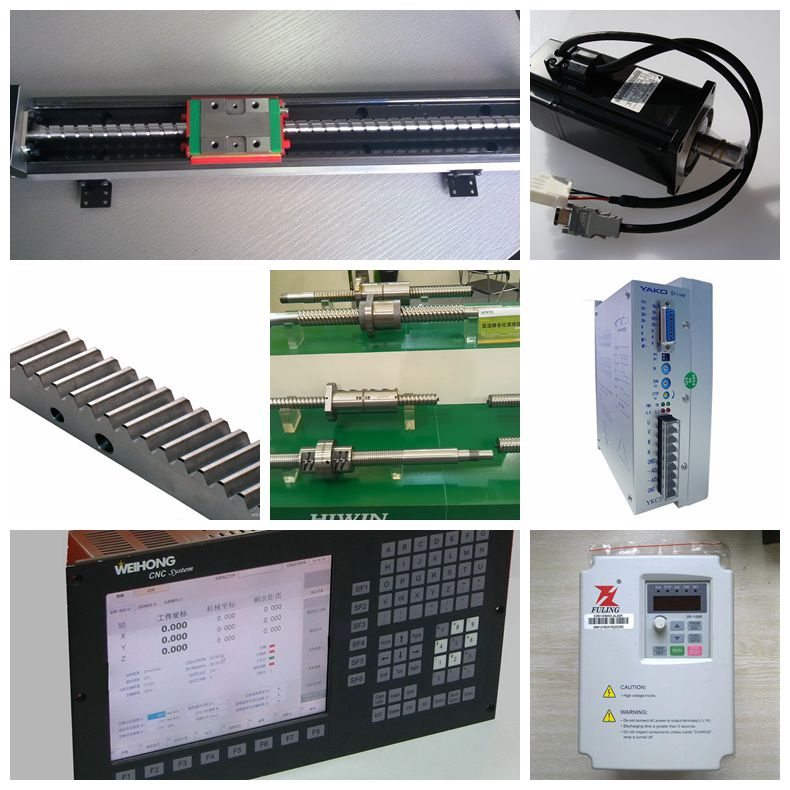

GENUINE & HIGH PRECISION ACCESSORIES from Nc Studio control system and Yintai PMI:

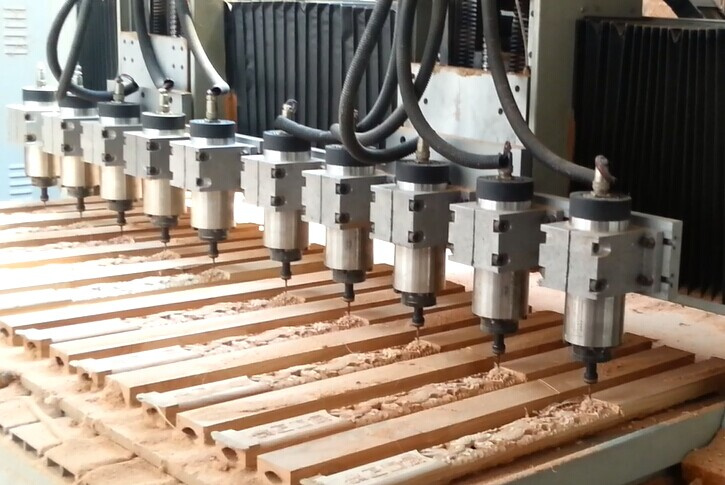

Operation process and Bueatiful engraved samples:
Other Stone and Woodworking CNC Router: DT1615-6
If you have specific requirement for CNC router machine, customized is available.| NO | Performance index |
|
| Optional |
| 1 | Working area | X | 1000mm |
|
|
| Y | 1300mm |
|
|
| Z | 150mm |
|
| 2 | Table size |
| 1800mm*1300mm |
|
| 3 | Precision | Working precision | 0.02mm |
|
|
|
Repositioning precision | 0.02mm |
|
| 4 | Drive mode | XX axis |
|
|
|
| YY axis |
|
|
|
| ZZ axis |
|
|
| 5 | Speed | Max motion speed | 10000mm/min |
|
|
| Max engraving speed | 8000mm/min |
|
| 6 | ()Spindle axis
Air cooling |
Spindle power | 1.5KW | 0.8KW_3KW |
|
| Spindle speed | 0_24000r/min |
|
| 7 | Drive mode |
| Servo |
|
| 8 | Operating voltage |
| AC220V/50HZ |
|
| 9 | Command code |
| G |
|
| 10 | Operating system |
| Nc Studio 53C |
|
| 11 |
|
| 1500KG |
|
Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
