Product Specifications
| Prod Model: |
ELE 1830 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
CNC Cutting Router |
| Model Number: |
Ele1830(Customerized) |
| Spindle Power: |
7kw Water Cooling Spindle |
| Linear Guide Rail: |
Hiwin 20# Square Linear Guide |
| Structure: |
20mm Heavy-Duty Big Steel Tube Structure |
| Drive Motors: |
Japan Yaskawa Servo Motor and Driver |
| Electrical Wires: |
Shanghai Cardiff Cable with UL Certificates |
| Place Of Origin: |
Shandong, China (Mainland) |
| Voltage: |
AC380V/50/60Hz, 3pH (Option: 220V) |
| Controlling System: |
DSP Control System, USB Interface |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
SGS BV TUV |
Product Description

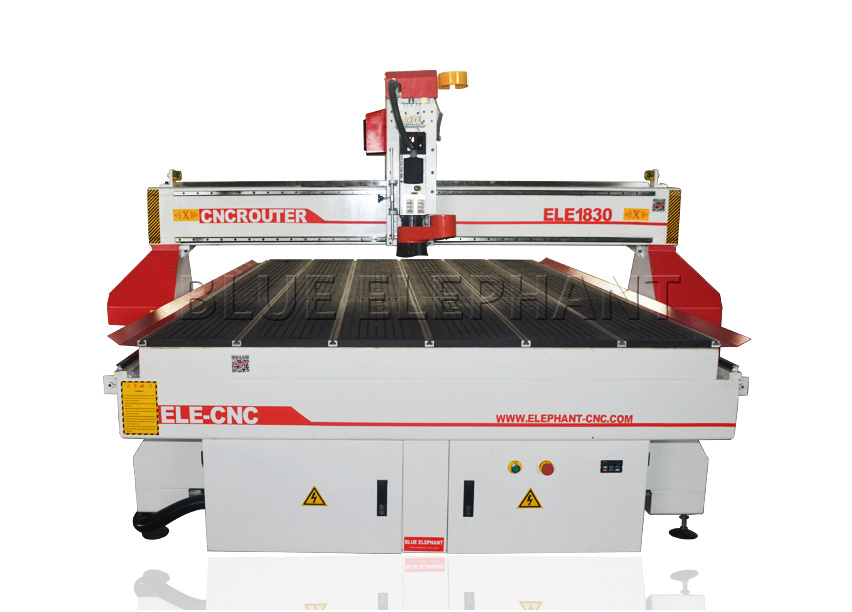

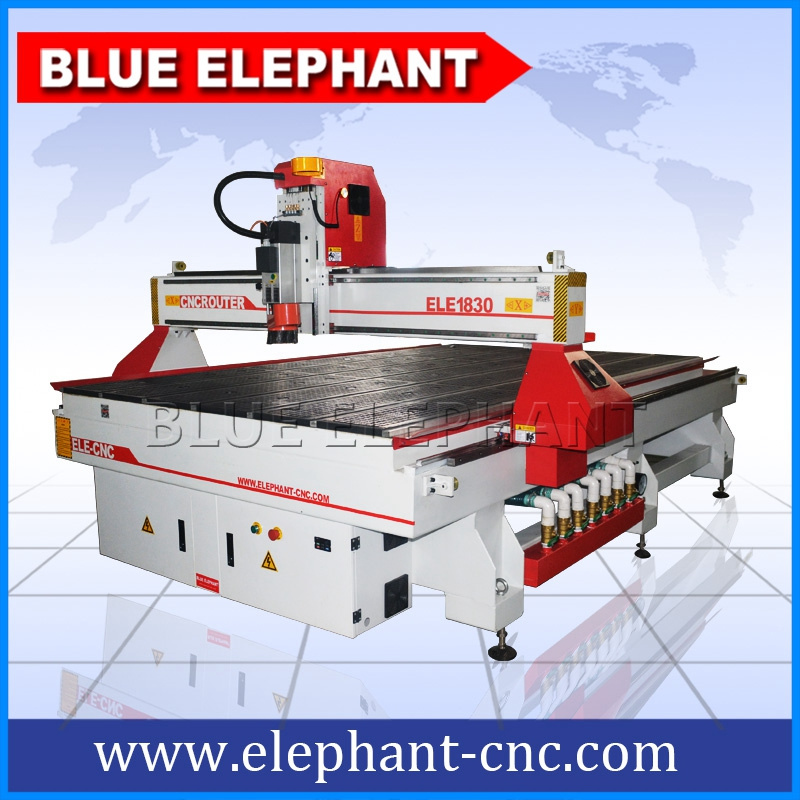

MDF Kitchen Cabinet Closet CNC Router/ South Africa Market 1830 CNC Cutting Router
Parameters | Descriptions | Parameters |
| Modle | 1830 |
| Working area | 1800*3000*200mm |
| Control system | DSP A11 Control System |
| Spindle | 7kw Italy HSD air cooling spindle |
| Spindle speed | 0-18000RPM |
| Motor | 850w YASKAWA servo motor |
| Driver | 1kw YASKAWA driver |
| Inverter | 7.5kw E type Taiwan DELTA Inverter |
| Table surface | T-slot and vacuum working table |
| Frame | Heavy duty thicker and bigger welded steel tube frame |
| X,Y axis transmission | Helical rack and pinion drive for X,Y axis |
| Z axis transmission | Taiwan TBI ball screw for z axis |
| Linear rail | Taiwan HIWIN 20# linear guide |
| Dust Collector | 3kw dust collection with 2 pockets |
| vacuum pump | 7.5kw Tongyou oil vacuum pump |
| Options | Oil Lubrication System
Japan OMRON limit switch for X,Y,Z axis
Soft limit switch
Tool sensor calibration
Shanghai Cardiff cable
The air gun |
Features- Effective working area:1800*3000*200mm
- DSP A11 control system
- Italy HSD 7kw air cooling spindle(with 18000rpm)
- Taiwan Delta 7.5kw inverter
- Vacuum & T-slot working table(with 42 vacuum holes)
- Taiwan TBI ball screw
- Taiwan HIWIN (or PMI ) Square linear guide
- Japan 850w YASKAWA servo system(1kw driver+850w motor)
- Heavy duty thicker and bigger welded steel tube frame

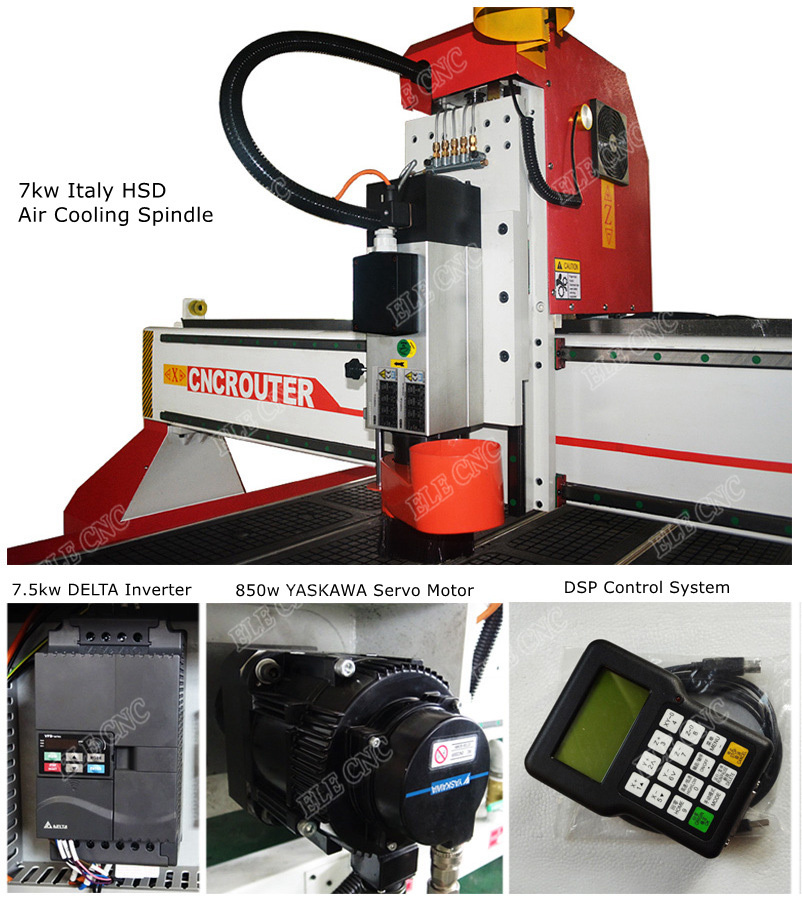

Main Parts
Applications1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.

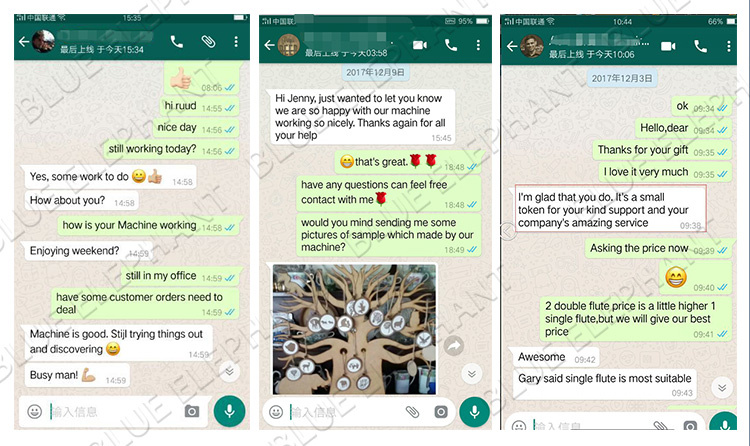

Feedback
Optional terms1.servo motor(you also can choose the famous servo system from Taiwan Or Japan)
2.rotary device(For engraving on cylindrical shape materials.)
Please kindly tell us your cylindrical shape materials' length and diameter. Then we can add right rotary axis to the machine, and quote the right price for your rotary axis.
Related ProductsWe also have any other models. Such as ATC cnc machine, mini cnc machine, multi-head cnc machine, cnc machine with rotary.
It also can be cusmized according to your working area or processing material. Customer Service1. Small parts will be supplied to you for free, such as, software CD, dongle.
2. Any problem will be replied to you within 24 hours!
3. By video, solution manual in English, Email, skype, QQ, telephone etc.
4, We supply lifelong after-sale service under our professional's guide for free!
5, Free training in our factory.

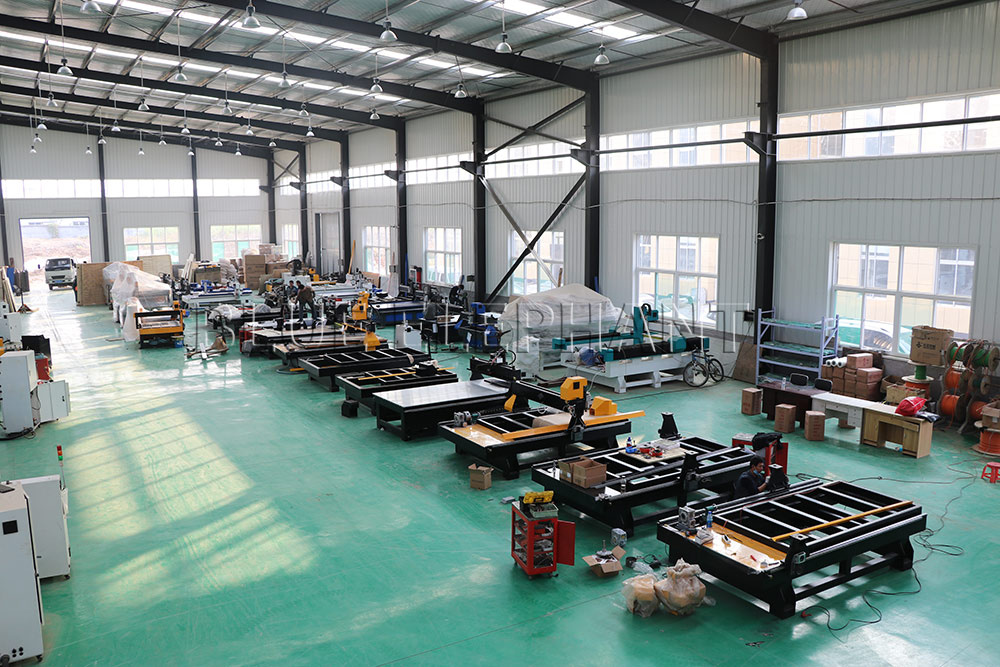

Company information
