Machines Manufacturing Companies in China, Combination Woodworking Machine, Multi-Head Wood CNC Router 1325

Machines Manufacturing Companies in China, Combination Woodworking Machine, Multi-Head Wood CNC Router 1325
Price: US $ 9000-9800set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: ELE 1325
Voltage: 380V, 3phase, 60Hz
Dimension(L*W*H): 3200*2240*1850mm
Control System: DSP A123 Control System
Spindle: 2 Sets 3kw and 1 Set 3.5kw Changsheng Spindles
Motor: FL118 Stepper Motor
Driver: Yako 2811 Driver
Inverter: 3.7kw Taiwan Delta Inverter
Linear Rail: Taiwan PMI 20# Linear Guide
Table Surface: T-Slot and Vacuum Working Table with 4 Zones
Rotary Device: Diameters: 200mm
Spindle Layout: Spindle Over
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: FDA
Spindle Number: Three Spindles

Product Description

Machines manufacturing companies in china , combination woodworking machine , multi-head wood cnc router 1325

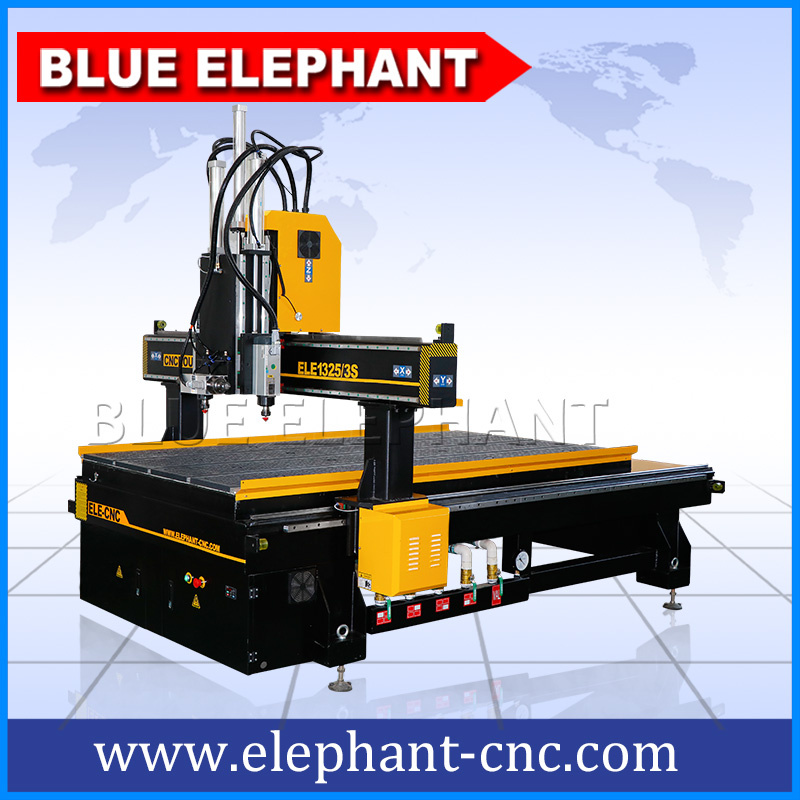

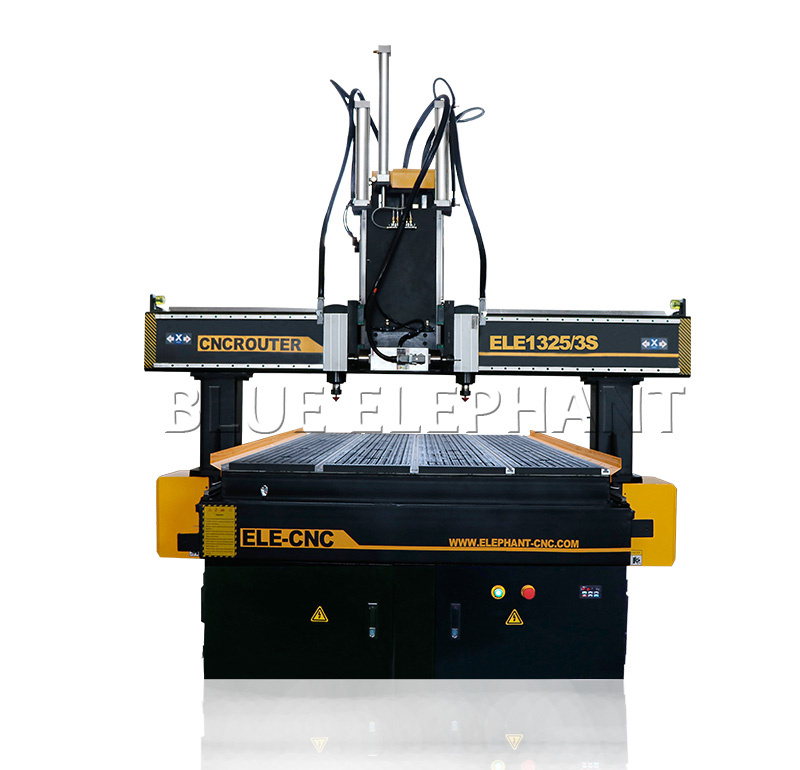

Introduction of multi-head wood cnc router 1325:

  • DSP A123 control system support pneumatic 3 heads cnc router with rotary device,very useful
  • Middle spindle is 3.5kw Changsheng air cooling spindle,it's suitable for drilling doors
  • strong machine body and gantry,has a long-life time

Features of multi-head wood cnc router 1325:

  • working size:1300*2500*300mm
  • 3KW*2 HSD air cooling spindle
    3.5kw Changsheng air cooling spindle
  • inverter:3.7kw Taiwan Delta inverter
  • A123 control system
  • FL118 stepper motor and YAKO2811 bigger and stonger driver,total 5 sets
  • working table: T-slot &vacuum work table
  • Taiwan HIWIN Linear Guide #20for XYZ axis#helical rack & gear transmission for XY axis
  • Taiwan TBI ball screw for Z axis
  • New type thicker and bigger heavy duty welded frame and gantry
  • lubrication system
  • Soft limit switch
  • Type 3 or Artcam software
  • 380v 3phase 60 hz
  • 5.5kw water circulation vacuum pump
  • Removable rotary device:diameter:200mm length:2000mm

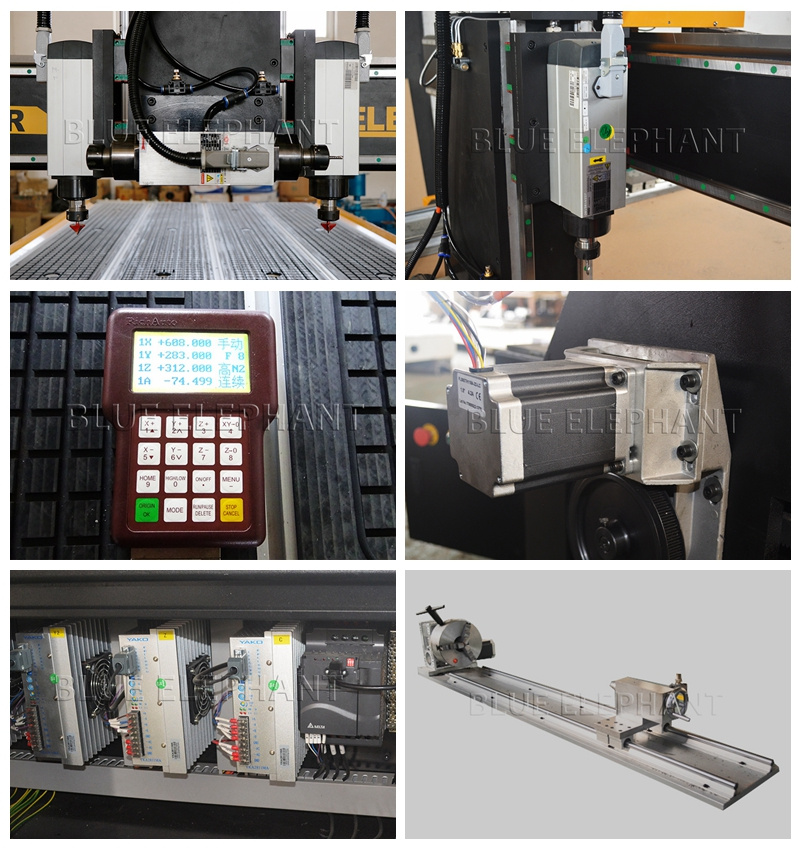

 Product Details of multi-head wood cnc router 1325:

Parameters of multi-head wood cnc router 1325:

Description

Parameter

X,Y,Z Working Area

1300x2500x300mm

Table Surface

T-slot & vacumm working Table with 4 zones

Frame

New type heavy duty welded steel frame

X, Y Structure

#20 Tiwan HINWIN linear guide rail, helical rack gear

Z Structure

#20 Tiwan HINWIN linear guide rail, Taiwan TBI Ball Screw

Spindle

Both sides are two sets 3kw Italy HSD air cooling spindle;

The middle position is one set 3.5kw Changsheng air cooling spindle with two position for tools.

Spindle Speed

0-18000RPM

Drive Motors

FL118 stepper motor and YAKO2811 driver

Working Voltage

AC380V/60Hz,3PH (Option: 220V)

Operating System

DSP A123 control system

Control box

Inner box

Lubrication system

Manual lubrication system

Vacuum pump

5.5kw water circlulation vacuum pump (380V, 3Ph, 60Hz)

X,Y Resolution

<0.01mm

Running Environment  Temperature

0 - 45 Centigrade

Rotary device

Diameters:200mm; Length: 2000mm

PS:All the working area and specifications can be customized according to your requests.

Application:

  • Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

  • Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

  • Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.

  • Relief sculpture and 3D engraving.

  • Cylindrical object.

Samples show:

Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
                                 2.inner package:Stretch film and plastic film for humidity.
                                 We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.

 Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Certificates:

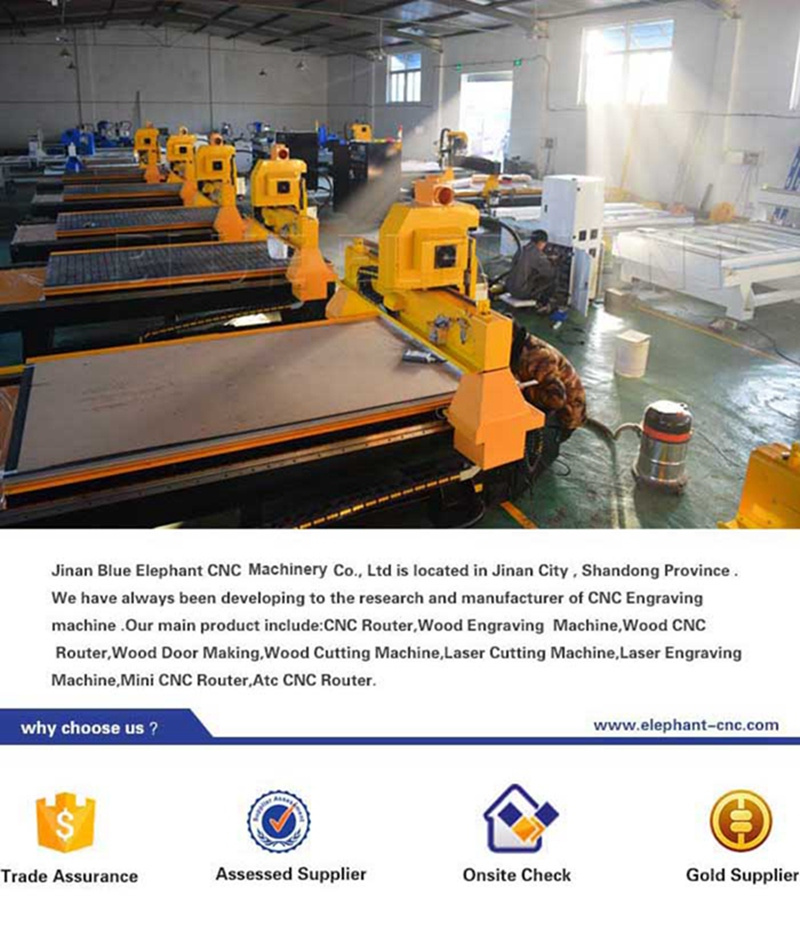

Welcome to our factory:

Just looking forward to service every customer, like you!

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.

We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.
