Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Optional |
| Flow Meter: |
Different |
| Custonized: |
Yes |
| Quallity: |
Good |
| Sensor: |
Plug-in |
| Type: |
Electromagnetic Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles |
| Accuracy: |
0.5% |
| Size: |
Dn15-2000 |
Product Description
Specification:
Precision: Caliber10-250, +/-0.5% +/-1.0%
Caliber300-2000, +/-1.0%
Medium Conductance: More than 5 microsecond/cm(water more than 20 microsecond/cm)
Output signal: 4-20mA DC; 0-10mA DC
Max temperature: Caliber10-200 for 80, 120, 150 centigrade degree; Caliber250-1200 for less than 80 centigrade degree
Max pressure: Caliber10-50 for 4.0MPa; Caliber65-125 for 1.6MPa; Caliber150-1000 for 1.0MPa; Caliber 1200-2000 for 0.6MPa
Enclosure Grade: IP65, IP67 and IP68 for water proof
Power supply: 220V, 50Hz
Flange connection: JB/T 81-94, GB9119-88 or made per user's requirements.
Technical spec
Display: Reaches 8element liquid crystal display, current clock to indicate flow data. Two kinds of units to choose: M3 or L.
Structure: Inserted style, compact type or separate type
Measuring medium: Liquid or solid-liquid two phase fluid, conductivity >0.5μ S/cm2
Range: 0.05m/s~12m/s
Accuracy: Range between 0.1m/s~10m/s can be 0.5%
DN(mm): 6mm~2000 mm
PN: PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN420 optional
Output signal: 4~20mA or frequency
Communication: RS485, support MODBUS protocol (not standard), support HART (option)
Connection: DN6~DN2000 flange connection
Connection standard suits for all kinds of flange standard(eg: BS EN1092-1)
Standard: Accuracy apply to EN1434- 1: 2003 standard
CE certificate: Apply to LVD 2006/95/EC and EMC 2004/108/EC
EN 61326-1: 2006 radiation standard (express apply to BS EN50081-1)
EN 61326-1: 2006 anti-jamming standard (express apply to BS EN50082-1)
EN 61010-1: 2001
Protection grade: Compact type for IP65, separately type for IP67or IP68(optional)
Power supply: AC86~220V or DC24V(optional)
Ambient temperature: 5~55° C
Ambient huminity: <85 % r. H (noncondensation)

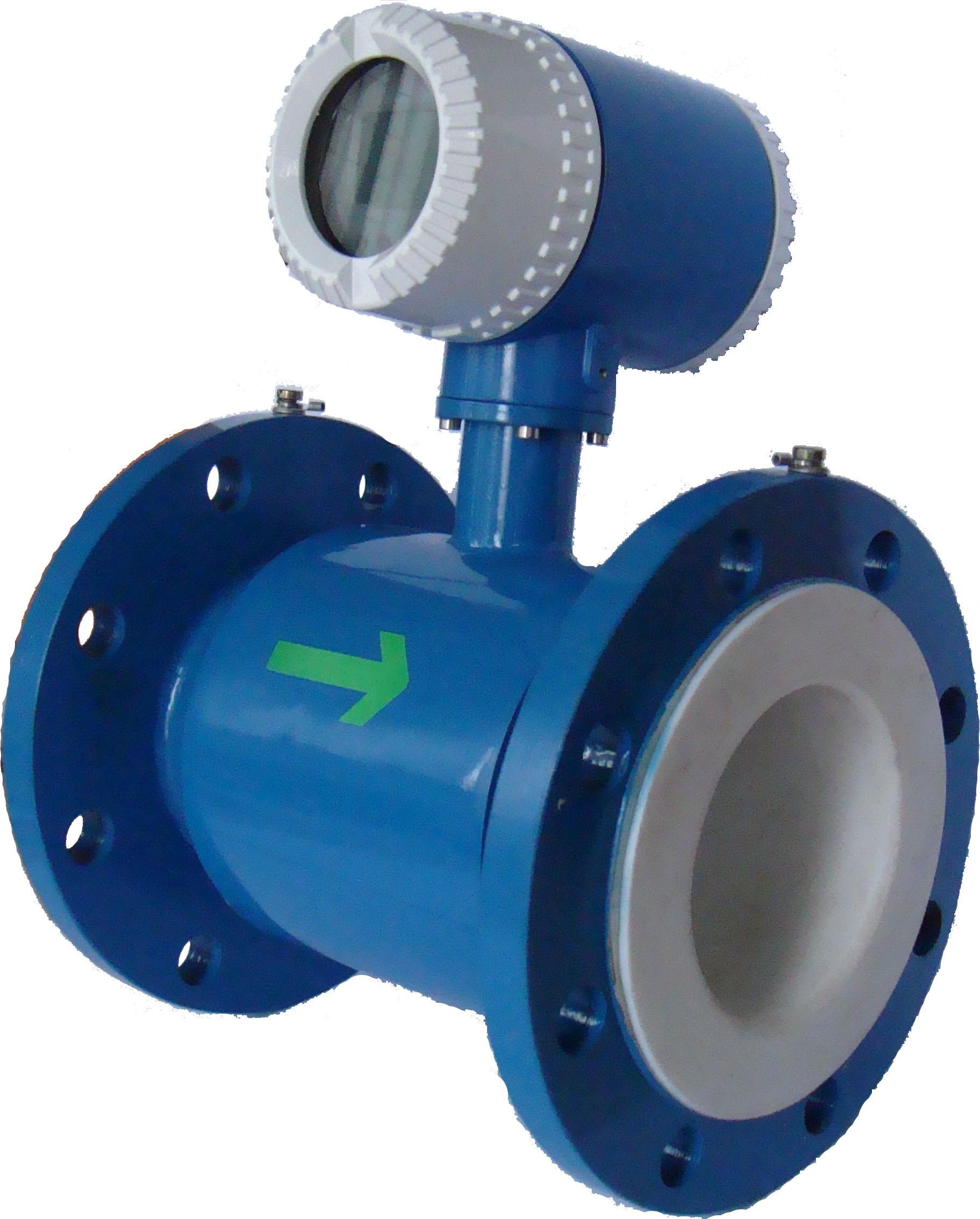

Electromagnetic flow sensor
Sensor's shell is sealed with carbon steel, only electrode and lining contact with medium.
Flow sensor technical spec
Application area: Conductivity fluid such as cold and warm water, pure water and corrosive material etc.
DN(mm): 6mm~~2000mm
PN: PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN420
Electrode material: 316L
Lining material: PTFE or customize
Medium tem: 0~70° C, max is 180° C
Shell material: Carbon steel
Protection grade: IP65, IP67 and IP6
Connection all applys(eg: BS EN1092-1)
|
Current output |
4~20Ma |
|
Frequency output |
No resource pulse :
High level=external power supply-1V
External volts≤30 V
Low level ≤ 0.5V
Load current ≤ 50 mA
Max.frequency output :5KHz .
Frequency of pulse output: 0~5Hz . |
|
Display |
With 8digit LCD display |
|
Display unit |
Instantaneous flow units : m 3 /h , m 3 /m , m 3 /s , L/h , L/m , L/s , G/h , G/m , G/s . Total flow units: m 3 , L , G . |
|
Communication |
MODBUS protocol ( optional ) or HART ( optional ) |
|
Protection grade |
IP65 |
|
Power supply |
220 V AC +20/-60% , 50/60 Hz , 24 V DC +50/- 25% , max.10VA |
|
EMC radiation standard |
EN 61326-1 : 2006 (BS EN50081-1) |
|
EMC anti-jimming standard |
EN 61326-1: 2006 (BS EN50082-1) |
|
CE security |
EN 61010-1 : 2001 |
|
Ambient temp. |
5~55°C |
|
Ambient humi d ity |
<85 % r.h. (non co n densation) |
