Product Specifications
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Carbon Steel |
Sensor: |
Plug-in |
Type: |
Electromagnetic Flow Meter |
Measuring Media: |
Liquid |
Measuring Principle: |
Electrical Principles |
Accuracy: |
0.5% |
Size: |
Dn15-2000 |
Product Description
Precision: Caliber10-250, +/-0.5% +/-1.0%
Caliber300-2000, +/-1.0%
Medium Conductance: More than 5 microsecond/cm(water more than 20 microsecond/cm)
Output signal: 4-20mA DC; 0-10mA DC
Max temperature: Caliber10-200 for 80, 120, 150 centigrade degree; Caliber250-1200 for less than 80 centigrade degree
Max pressure: Caliber10-50 for 4.0MPa; Caliber65-125 for 1.6MPa; Caliber150-1000 for 1.0MPa; Caliber 1200-2000 for 0.6MPa
Enclosure Grade: IP65, IP67 and IP68 for water proof
Power supply: 220V, 50Hz
Flange connection: JB/T 81-94, GB9119-88 or made per user's requirements.
Technical spec
Display : reaches 8element liquid crystal display, current clock to indicate flow data. two kinds of units to choose:m3 or L.
Structure : inserted style, compact type or separate type
Measuring medium :liquid or solid-liquid two phase fluid, conductivity >0.5μs/cm2
Range: 0.05m/s~12m/s
Accuracy : range between 0.1m/s~10m/s can be 0.5%
DN(mm) :6mm~2000 mm
PN :PN6, PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN420 optional
Output signal:4~20mA or frequency
Communication :RS485,support MODBUS protocol (not standard), support HART (option)
Connection :DN6~DN2000 flange connection
Connection standard suits for all kinds of flange standard(eg:BS EN1092-1)
Standard :accuracy apply to EN1434- 1:2003 standard
CE certificate : apply to LVD 2006/95/EC and EMC 2004/108/EC
EN 61326-1:2006 radiation standard (express apply to BS EN50081-1)
EN 61326-1:2006 anti-jamming standard (express apply to BS EN50082-1)
EN 61010-1:2001
Protection grade :compact type for IP65,separately type for IP67or IP68(optional)
Power supply :AC86~220V or DC24V(optional)
Ambient temperature :5~55°C
Ambient huminity: <85 % r.h (noncondensation)

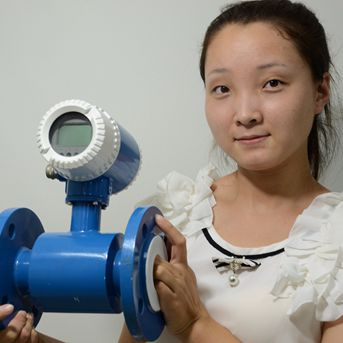

Electromagnetic flow sensor
Sensor's shell is sealed with carbon steel, only electrode and lining contact with medium.
Flow sensor technical spec
Application area:conductivity fluid such as cold and warm water, pure water and corrosive material etc.
DN(mm) :6mm~~2000mm
PN :PN6,PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN420
Electrode material :316L
Lining material :PTFE or customize
Medium tem :0~70°C,max is 180°C
Shell material:carbon steel
Protection grade : IP65,IP67 and IP6
Connection all applys(eg:BS EN1092-1)
DN | 6mm~~2000mm |
PN | PN6 , PN10 , PN16 , PN25 , PN40 , PN63 , PN100 , PN160 , PN250 , PN420 |
Electrode material | 316L |
Lining material | PTFE or customize |
Medium tem | 0~70°C , max is 180°C |
Shell material | carbon steel |
Protection grade | IP65 , IP67 and IP6 |
Connection | all applys( eg : BS EN1092-1 ) |
Converter technical data
Current output | 4~20Ma |
Frequency output | No resource pulse : High level=external power supply-1V External volts≤30 V Low level ≤ 0.5V Load current ≤ 50 mA Max.frequency output :5KHz . Frequency of pulse output: 0~5Hz . |
Display | With 8digit LCD display |
Display unit | Instantaneous flow units : m 3 /h , m 3 /m , m 3 /s , L/h , L/m , L/s , G/h , G/m , G/s . Total flow units: m 3 , L , G . |
Communication | MODBUS protocol ( optional ) or HART ( optional ) |
Protection grade | IP65 |
Power supply | 220 V AC +20/-60% , 50/60 Hz , 24 V DC +50/- 25% , max.10VA |
EMC radiation standard | EN 61326-1 : 2006 (BS EN50081-1) |
EMC anti-jimming standard | EN 61326-1: 2006 (BS EN50082-1) |
CE security | EN 61010-1 : 2001 |
Ambient temp. | 5~55°C |
Ambient humi d ity | <85 % r.h. (non co n densation) |
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
