Product Specifications
| Prod Model: |
CX-EFM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbon Steel |
| Display: |
LCD |
| Price: |
Competitive |
| Maintenance: |
Less and Easy |
| Technology: |
Advanced |
| Accuracy: |
?à0.2-0.5% |
| Sensor: |
Tube/Flange |
| Type: |
Electromagnetic Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles |
| Size: |
Dn15-2000 |
Product Description
Working principle
Its measuring principle bases on Faraday electromagnetic induction law:
When the liquid flow through the measuring pipe which all around magnetic field, the two vertical direction will have the induced electromotive force which is proportional with the mean velocity of stream.
Flowmeter consists of sensor and converter. Converter transfer field current to inner loop of the sensor to engender magnetic field. Conductivity liquid flow through the measuring pipe and get induced force because of cutting magnetic line. By then the electrode around the pipe wall incept induced force and transfer them to converter through signal wire. Converter filer induced force, spread, calculate and exchange them into proportional standard current signal and frequency signal.
Technical spec
Display: Reaches 8element liquid crystal display, current clock to indicate flow data. Two kinds of units to choose: M3 or L.
Structure: Inserted style, compact type or separate type
Measuring medium: Liquid or solid-liquid two phase fluid, conductivity >0.5μ S/cm2
Range: 0.05m/s~12m/s
Accuracy: Range between 0.1m/s~10m/s can be 0.5%
DN(mm): 6mm~2000 mm
PN: PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN420 optional
Output signal: 4~20mA or frequency
Communication: RS485, support MODBUS protocol (not standard), support HART (option)
Connection: DN6~DN2000 flange connection
Connection standard suits for all kinds of flange standard(eg: BS EN1092-1)
Standard: Accuracy apply to EN1434- 1: 2003 standard
CE certificate: Apply to LVD 2006/95/EC and EMC 2004/108/EC
EN 61326-1: 2006 radiation standard (express apply to BS EN50081-1)
EN 61326-1: 2006 anti-jamming standard (express apply to BS EN50082-1)
EN 61010-1: 2001
Protection grade: Compact type for IP65, separately type for IP67or IP68(optional)
Power supply: AC86~220V or DC24V(optional)
Ambient temperature: 5~55° C
Ambient huminity: <85 % r. H (noncondensation)

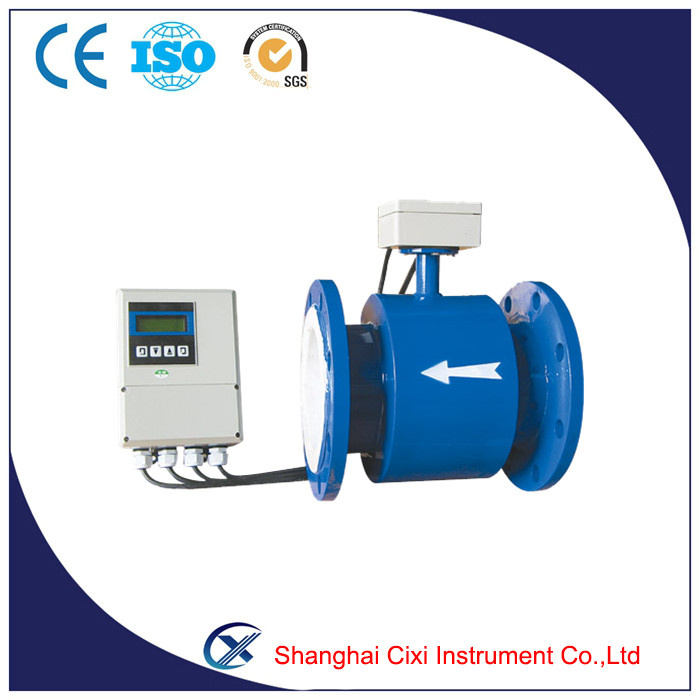

Electromagnetic flow sensor
Sensor's shell is sealed with carbon steel, only electrode and lining contact with medium.
Flow sensor technical spec
Application area: Conductivity fluid such as cold and warm water, pure water and corrosive material etc.
DN(mm): 6mm~~2000mm
PN: PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN420
Electrode material: 316L
Lining material: PTFE or customize
Medium tem: 0~70° C, max is 180° C
Shell material: Carbon steel
Protection grade: IP65, IP67 and IP6
Connection all applys(eg: BS EN1092-1)
Technical spec
Display reaches 8element liquid crystal display, current clock to indicate flow data.
Two kinds of units to choose: M3 or L.
Structure inserted style, compact type or separate type
Measuring medium liquid or solid-liquid two phase fluid, conductivity >0.5μ S/cm2
Range 0.05m/s~12m/s
Accuracy range between 0.1m/s~10m/s can be 0.5%
DN(mm) 6mm~2000 mm
PN PN6, PN10, PN16, PN25, PN40, PN63, PN100, PN160, PN250, PN420
Optional
Output signal 4~20mA or frequency
Communication RS485, support MODBUS protocol (not standard)\support HART(option)
Connection DN6~DN2000 flange connection
Connection standard suits for all kinds of flange standard(eg: BS EN1092-1)
Standard accuracy apply to EN1434-1: 2003 standard
CE certificate apply to LVD 2006/95/EC and EMC 2004/108/EC
EN 61326-1: 2006 radiation standard (express apply to BS EN50081-1)
EN 61326-1: 2006 anti-jamming standard (express apply to BS
EN50082-1)
EN 61010-1: 2001
Protection grade compact type for IP65, separately type for IP67or IP68(optional)
Power supply AC86~220V or DC24V(optional)
Ambient temperature 5~55c
Ambient huminity <85 % r. H (noncondensation)
