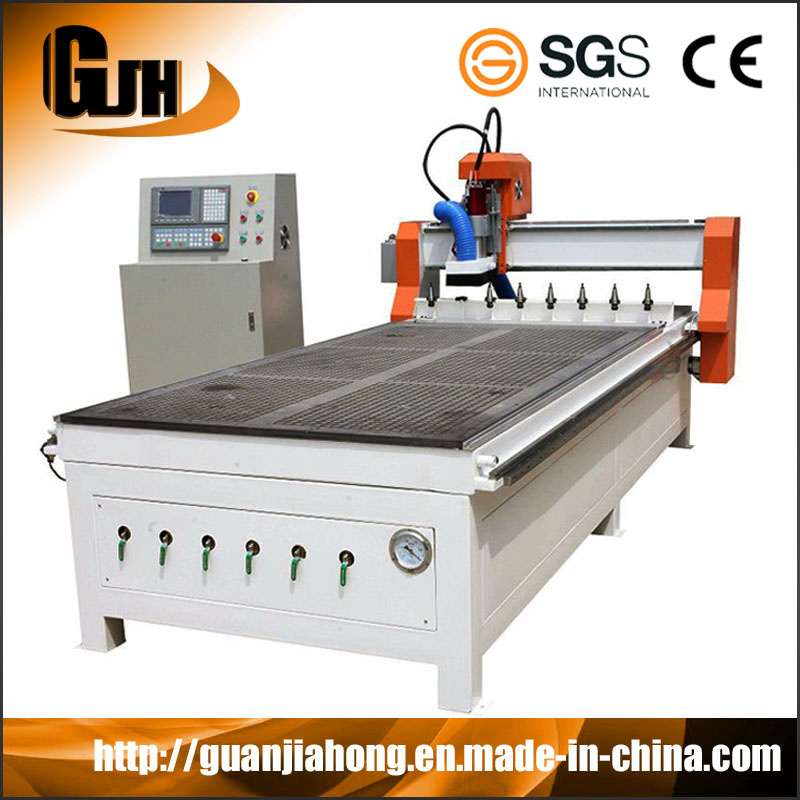

Linear Type Auto Tool Changer CNC Router (DTC-1325-ATC)

Name: Linear Type Auto Tool Changer CNC Router (DTC-1325-ATC)
Brand: china-crystals.com
SKU: 694383262
Availability: InStock
Rating: 4.5 (20 reviews)

Price:	US $ 5500-20000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	DTC-1325-ATC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type:	CNC Engraving Machine
Condition:	New
Movement:	Gantry
Control System:	Taiwan Syntec Control System
Spindle:	Hsd Italy 9kw Atc
Driver:	Estun/ Yaskawa

Product Description

CNC router Center from professional cnc router machine maufacturor.

Feature:

1. Linear style automated tool changer with 8 pieces of tools in total.
2. Adopt Italy-made air-cooled spindle with strong power of 9.0KW, so the machine can keep working for long-time without fault.
3. X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and reducing cost. Z axis adopts Imported PMI ball-screw and Taiwan Hiwin H30 square orbit, with great accuracy and longevity.
4. Gantry is made of steel, unlike others who adopt aluminum materials. Steel gantry has better stability than aluminum ones.
5. Excellent compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai, etc.
6. Advanced DSP control system makes the operation easier, and the auto tool change system makes the operation safer and convenient.
7. Adopting high-torque Japan-made YASKAWA servo motor and driver, greater accuracy and stability.
8. Auto oil-injection system makes the maintenance more convenient.
9. Vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23 cube meters /hour.
10. Has the function of re-carving after break point and power failure.
11. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Mastercam, Type3, Arecam). Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and speed and precision of curve lines.

Application industry:

1. Wood processing: processing of various furniture such as door, window, cabinet, screen and so on.
2. Advertisement: engraving and cutting various labels and number plate.
3. Art craft: engraving characters of any languages and graphics on gifts and souvenirs.

Application material:

Wood, aluminum board, brass board, plastic, density board, MDF board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal materials.

Confirgration details:

MODEL	DTC-1325-ATC
Working Area -X Y Z	13002500400mm
Overall dimension	180034002000mm
Processing accuracy	0.05mm
Repeat positioning accuracy	0.04mm
Spindle	9KW(ATC spindle)HSD
Max. spindle speed	24000r/min
Max. Idling speed	40000mm/min
Max. working Speed	30000mm/min
Run mode	Servo
Working Voltage	AC380V/50Hz (220V/50Hz)
Command	Standard G code
Operating System	SYNTEC
Countertops	Vacuum adsorption
Diameter of Cutter	Φ3.175-Φ12.7
Software	ArtCAM/Type3/WENTAI

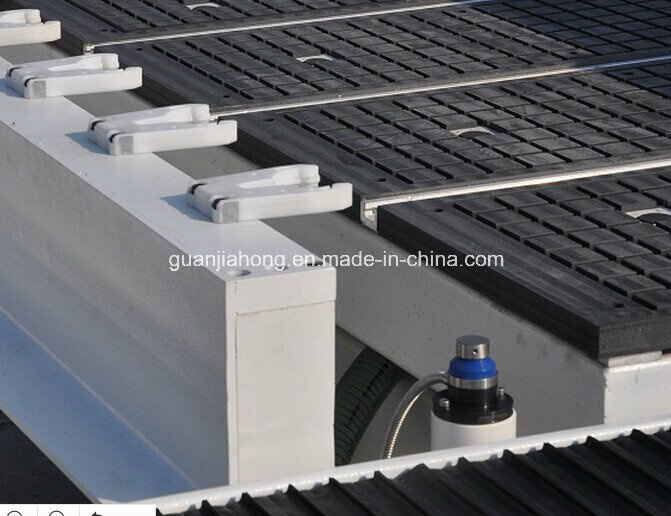

Live action for our Vacuum Adsorption Table:

Our Perfect Carving samples:

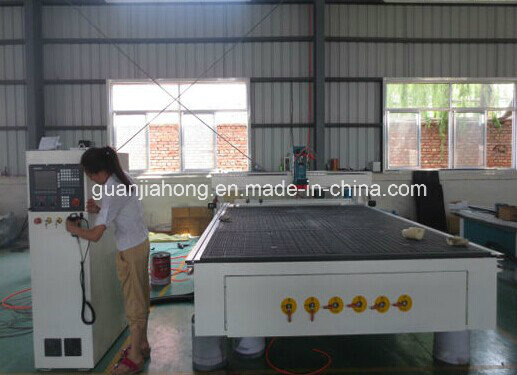

Live action for Packing & Workshop:

If you have specific requirement for CNC router center, customized is available.

Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.

Guarantee & After-sale service

1.One year warranty under normal use and we supply lifelong maintenance.

2.24 hours technical support by Phone, Email, Skype, Msn, or romote.

3.Free training to make sure you master the operation of the cnc router.

OEM Service Available

1.Usually, we will manufacturer the machine as our regular design.

2.X Y Z Working Area could be custmer-oriented designing.

3.Special configuration could be customer-oriented designing.

Jinan Guanjiahong CNC Machinery Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory, which is a professional manufacturer for research and development, production of CNC router, Laser engraving machines, Fiber laser cutting machine, Heat press, Edge banding machine, and ect. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.

After nearly 13 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
