Product Specifications
| Prod Model: |
DEK-1325 |
| Cutting Area: |
1300*2500mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, ISO, FDA |
| Format Of Instructions: |
Gcode, Hpgl |
| Driving System: |
Stepper Motor |
| Control Configuration: |
DSP /USB Interface |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rail |
Product Description

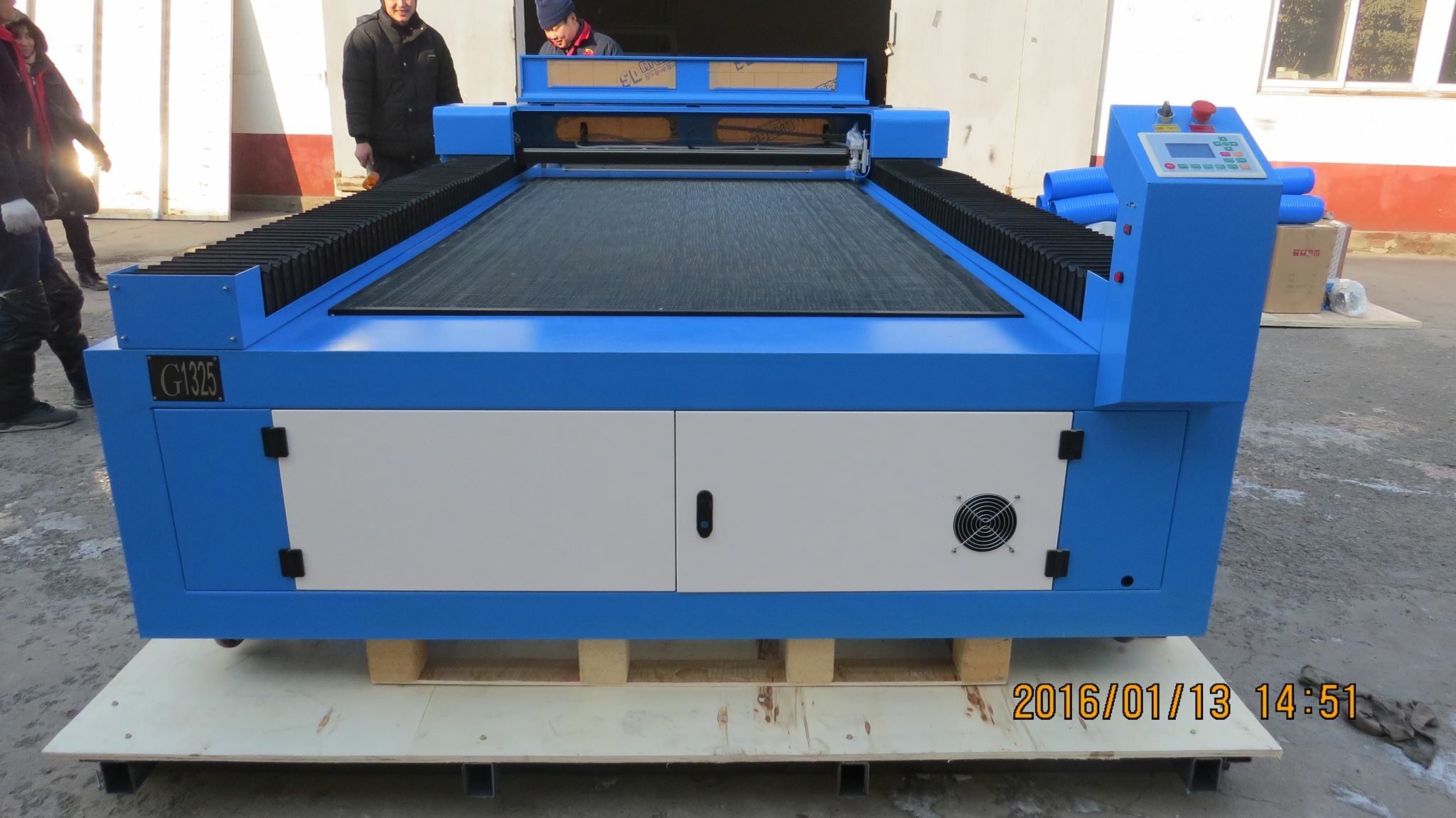

Features of laser cut paper machine
1. The imported linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth.
3. The structure is strong enough to ensure the moving stable.
4. High quality laser tube provides the strong beam and long service life.
5. Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube.
Key Features of cnc co2 laser cutter machine for sale:
1).Body structure:
We adopt more scientific design and high strength metal plate frame, which can increase the fuselage
strength more than 40% to prevent the machine from distortion during long term work.
In addition, this structure is very stable and not easy to be out of shape. The sound insulation effect is good.
2)Lens and mirrors:
Imported from Singapore.
The mirrors material is the molybdenum,this is one rare metal. Its reflective effect is good.And its
diameter is more than 25mm.
The diameter of the Lens is 20mm, and the focal length is 63.5mm.So,if you want to cut something,
the edge will have the radian, not the direct one.(the cutting effect is good enough)
3)Hiwin square rails from Taiwan:
The square rails has more higher precision than the round ones.
The positioning accuracy is high; Less wear and tear can maintain high accuracy.
This square rails apply to high-speed move and greatly reduce the drive horsepower the machine required.
It can bear the load from left and right / up and down at the same time.
The essembling is easy and has the performance of interchangeability, the lubrication structure is simple.
4) Driving medium:
The driving medium are adopted the aluminum pieces.
It is not easy to rust.It can work long time without deformation.
In addition,the accuracy of it is high.
5) There is water protection device on our machine:
When there is no water in the tank,this water protection device can remind you (there is no light in the laser tube),so it can protect the laser tube from damage.
6) Advanced DSP control system:
Advanced DSP control system with professional motion control chip,has a good function of being secutive/high speed curve cutting and shortest path selection,it can improve the working efficiency a lot.
7)Reci Laser tube:(80w and higher power)
8) Every set machine has the U disk offline control system.
You can operate the machine without the computer, and it is more convenient and fast.
Technical Detailes of laser cutter for paper wood acrylic
| Working area | 1300*2500mm |
| Laser Types | Sealed CO2 Laser Tube 60W-150W |
| Engraving speed | 0-60,000mm/min(according to different materials) |
| Cutting speed | 0-10,000mm/min(according to different materials) |
| Control system | Ruida |
| Location precision | ≤0.01mm |
| Resetting positioning accuracy | 0.01mm |
| Voltage | AC 110V-220V(±)10% / 50-60Hz |
| Minimum shaping character | English 1.0 x 1.0mm Chinese 2.0*2.0mm |
| Driving system | Stepper motor |
| Cooling mode | Water-cooling and protection system |
| Compatible Software | CoreDraw, AutoCAD, PhotoShop |
| Graphic format supported | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG,etc |
| Standard accessories | (01) User manual of machine(English version)
(02) User manual of software(English)
(03) USB cable
(04) Communication cable
(05) Air exhaust fan
(06)Air pump
(07) 3 reflecting mirrors (has been installed in the machine)
(08) One focus lens(has been installed in the machine )
(09) One laser tube(has been installed in the machine) |
1.Apply to industry and materials
Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industries.
2.Functional Characteristics
Extensive material processing, smooth cutting edge and burr-free, avoid polishing, Processing high speed, high precision, less waste, high efficiency ,Optional double laser heads cutting machine so that the exponential growth efficiency
2.Suitable for large and medium-sized enterprises in the mass production, and also suitable for small enterprises and individual processing.
3.Operational speed, laser energy real-time tunable, and very easy for customers to operate
4.Cutting energy automatic compensation function, cutting greatly improved results
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.we will give you 24hours service from phone and skype or go to your home for after-sale service
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you
.After sales service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
