Product Specifications
| Prod Model: |
DT1813-1-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Engraving Router |
| Spindle Layout: |
Spindle Over |
| Feed Mode: |
Mechanical |
| Customized: |
Customized |
| Condition: |
New |
| Color: |
Customized |
Product Description

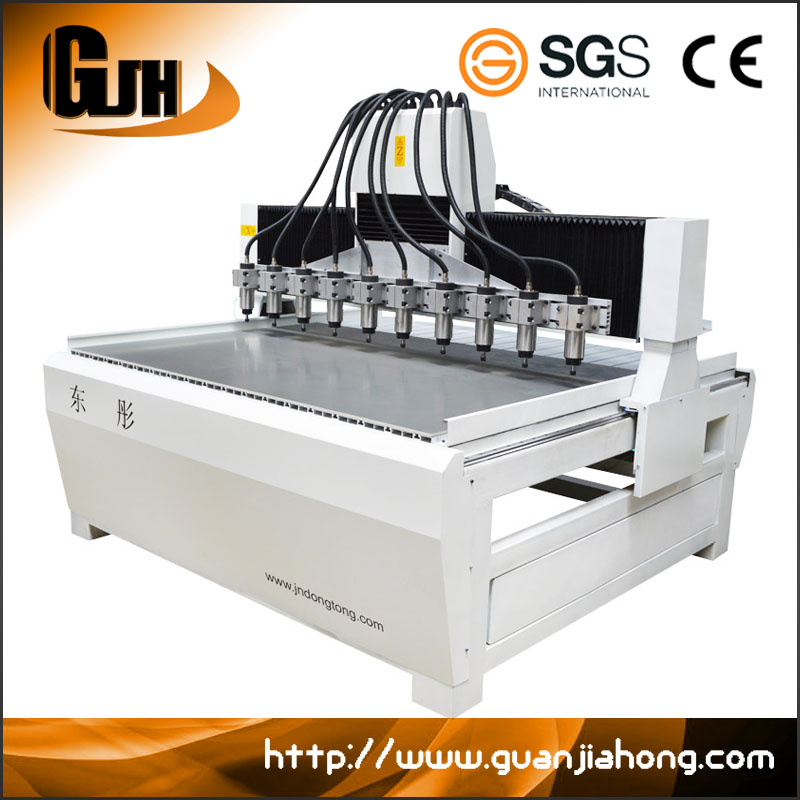

Multi spindle wood carving machine cnc router from professional CNC router manufacturer.Feature:1. DT1813-10 engraving machine is our company specially developed and designed
for small workpiece but mass production, high precision, high speed and high cost
performance.

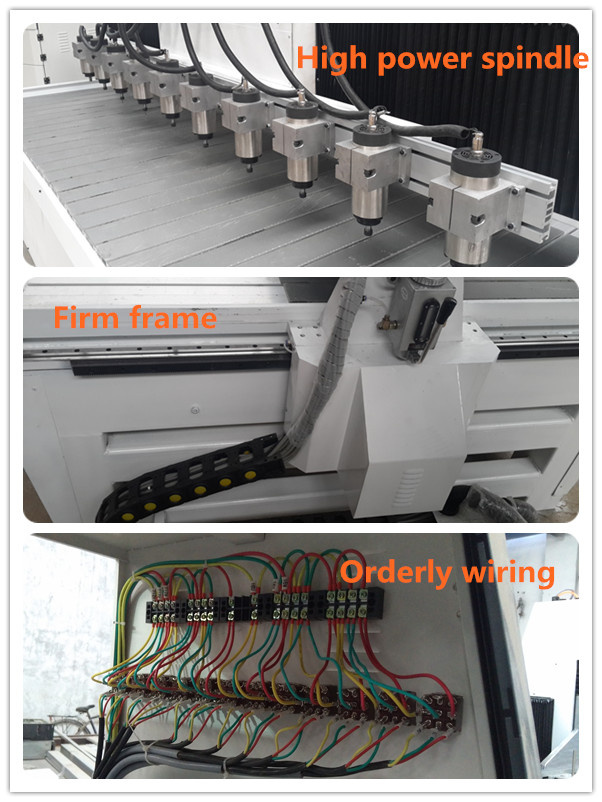

2. The lathe bed is welded by steel structure seamlessly, has good stiffness and non-
deformation.
3. Using computer cabinet, the original Weihong control system has Stable
performance and high reliability .
4. Automatic oil lubrication system, it is more convenient for maintenance.
5. With function about continued carving when it has breakpoint, power recovery and
processing time prediction
6. Imported ball screw rod and round rail, original screw nut, Imported linear and
square rail

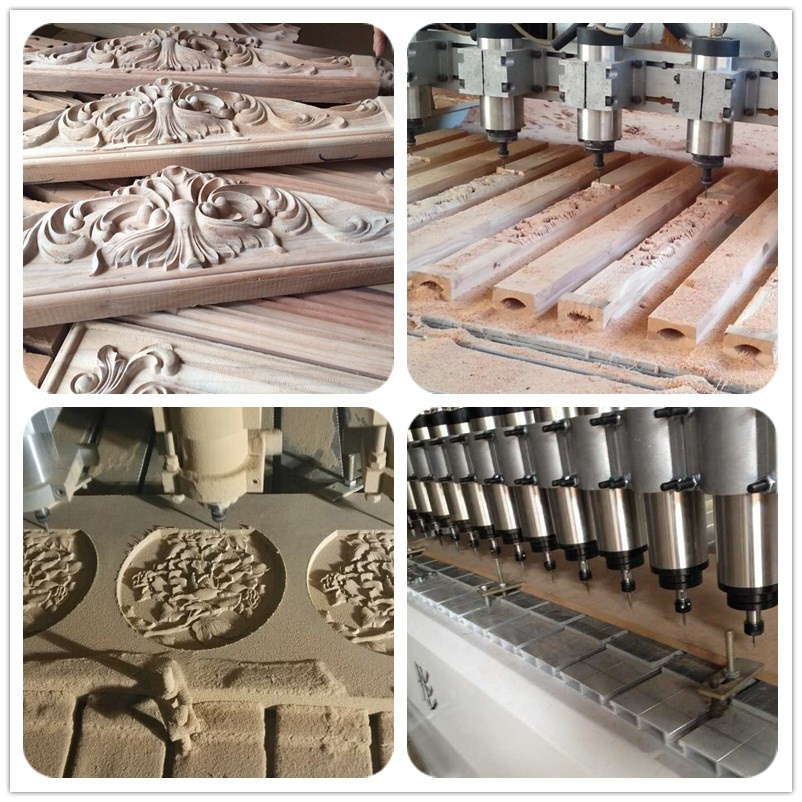

Application industry:1. Woodworking industry: The furniture of door, window, cabinet, craft wood door,
paint free door, folding screen, process window, wave board processing, including
the processing for wood art.
2. Stone industry: Natural marble, granite, artificial stone, tombstone, milestone,
ceramic tile, glass and other materials of 3D relief and line carving, cutting, edge,
drilling and 2D carving.
3. Advertising industry: Suitable for processing various design and colorful mould, just
like: Signs, architectural models, badges, badge, name plate, exhibition board,
indicator, craft decoration, furniture decoration, etc.
4. Handcraft industry: Can engrave in wood, bamboo, artificial marble, organic board,
double color boards, crystal and other material.
5. Also can carve and achieve all kind of effects for reliefs, movie, hollow and plate
engraving, cutting and valuable. such handiwork, graphic engraving, cutting, the
bottom of milling,etc.
| NO | Performance index | | |
| 1 | Working area | X | 1800mm |
| | | Y | 1300mm |
| | | Z | 150mm |
| 2 | Table size | | 1800mm*1300mm |
| 3 | Precision | Working precision | 0.02mm |
| | | Repositioning precision | 0.02mm |
| 4 | Drive mode | X axis | Helical rack and pinion |
| | | Y axis | Helical rack and pinion |
| | | Z axis | Ball screw |
| 5 | Speed | Max motion speed | 10000mm/min |
| | | Max engraving speed | 8000mm/min |
| 6 | Spindle axis | Spindle power | 1.5KW |
| | | Spindle speed | 0_24000r/min |
| 7 | Drive mode | | Servo |
| 8 | Operating voltage | | AC220V/50HZ |
| 9 | Command code | | G code |
| 10 | Operating system | | NC studio |
| 11 | | | 1500KG |
Technical support:1. Technical support by phone, email or MSN/ Skype around the clock
2. Friendly English version manual.
3. Engineer available to service machinery overseas. but the buyer should pay the fee.
After-sale & guarantee service:1. Under normal usage, 1 year for the whole machine and 6 months for spindle
2. Normal machine is properly adjusted before dispatch.
3. You will be able to get free training advice towards our machine in our factory.
4. You will also get free suggestion and consulting, technical support and service by email/fax/ tel and lifetime technical support
If you have specific requirement for multi-spindle CNC router , customization is available.
