| Price: | US $ 9999-29999/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | ELE-1530 |
|---|

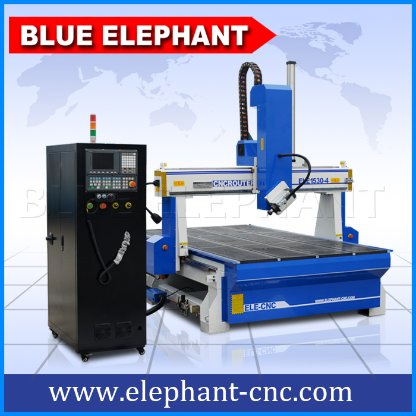

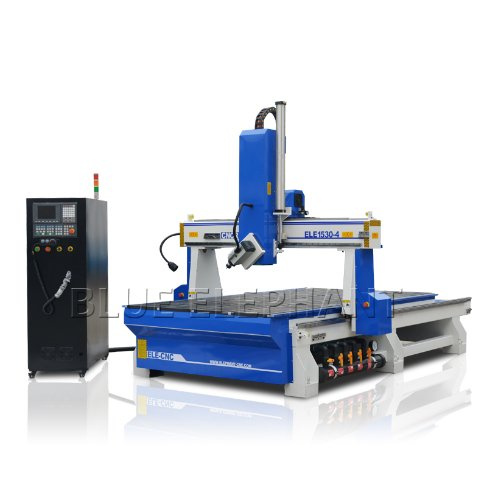

Hot Style! ELE1530 4 Axis CNC Milling Machine Router for Wood Aluminum Foam
Features of 4 axis wood cnc router:
Applications of 4 axis wood cnc router:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising Industry:
advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry:
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. Relief Sculpture and 3D Engraving
Parameters of 4 axis wood cnc router:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1500x3000x700mm*±100° |
2 | Table Size | 1500×3500mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z Repositioning Accuracy: | ±0.01mm |
5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
6 | Frame | Big Steel Tube Structure |
7 | X, Y Structure | Helical rack gear, Taiwan HIWIN Linear guide |
8 | Z Structure | Imported Taiwan TBI Ball Screw ,Taiwan HIWIN Linear Guide |
9 | Max. Power Consumption | (Without Spindle) 4.2Kw |
10 | Max. Rapid Travel Rate | 40000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | Italy HSD Spindle 4.5kw( Italy ATC spindle for option) |
13 | Spindle Speed | 0-18000RPM |
14 | Drive Motors | Japan 850 W YASKAWA Servo Motor |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
16 | Command Language | G Code |
17 | Operating System | Taiwan SYNTEC Control System (model: EZ4M) |
18 | Computer Interface | USB |
19 | Flash Memory | 512M |
20 | Collet | ER25 |
21 | X,Y Resolution | <0.01mm |
22 | Software Compatibility | UG , Power mill |
23 | Running Environment Temperature | 0 - 45 Centigrade |
24 | Relative Humidity | 30% - 75% |
25 | Packing Size | 4.1*2.3*2.6m |
26 | N.W. | 2500KG |
27 | G.W. | 2800KG |
28 | Optional Parts | Dust Collector/ Dust Hoods for three Axis |
Vacuum Pump | ||
Rotary System | ||
Mist-cooling System | ||
SIEMENS/DELTA/ Panasonic Servo Motors | ||
Colombo Spindle | ||
X:2.5m, Y:4m, Z:1.2m |

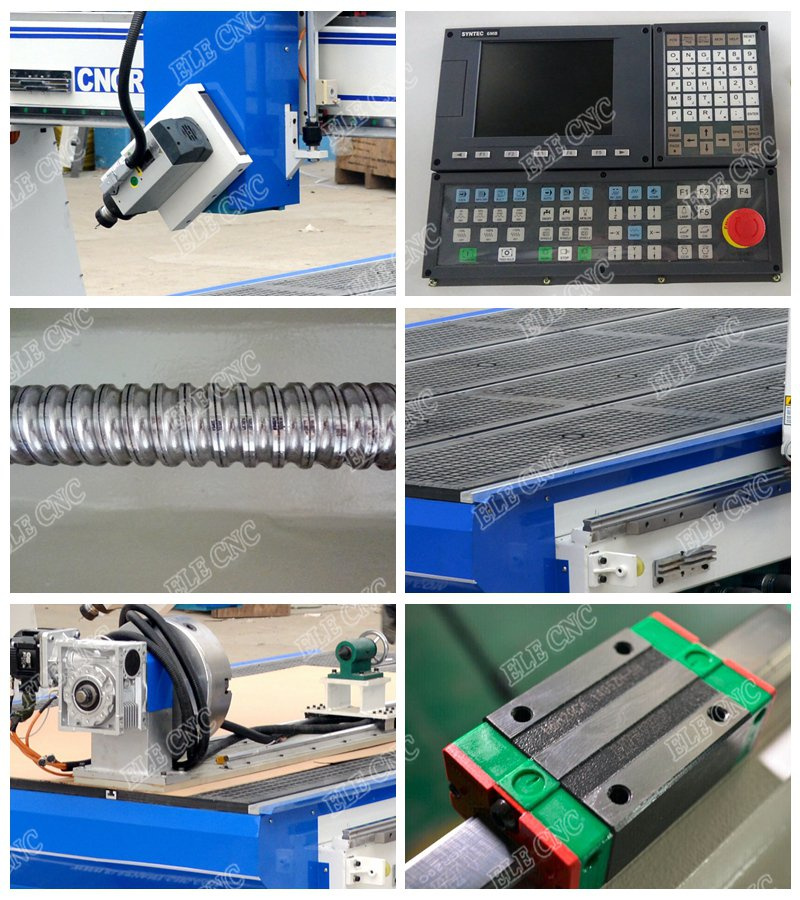

Details of 4 axis wood cnc router:
After sale service:
1. service before sales: our salesman will try to know your requirement about our cnc router specificaiton and what kind of work you will do . then we will offer our best solution for your requirement. then it can confirm each customer can get their real needed machine.
2. service during production: we will send photos of machines during making. so customers can know more details about the procession of making their machines. and give theirm suggestions.
3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will check when the machine arrive your sea port and approximate date of arrival. so customers can know when it will arrive and make enough preparation.
5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .
6. service of teaching: there are some manual and video about how to use machine, if some customers have question about it. we will have professional technist to help them to install and teach how to use through skype ,calling, vedio or mail.
7. service of warranty: we offer 1 year warranty for whole machine and half year warranty for spindle. if any parts of our machine is broken. we will replace it for free.
8. service in longterm : we hope every customer can use our machine easliy and have a fun of it. if customers have any problems of machine in 2 or 3 , 5 years , they can contact us . we will always here waiting for you.
Our Factory:

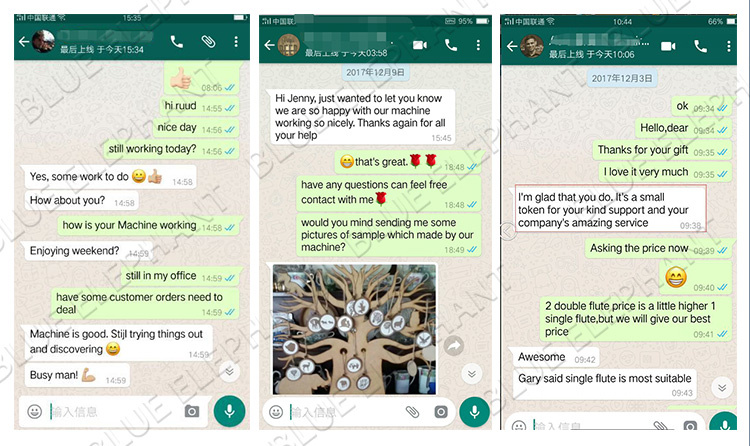

Feedback:
